Product Description

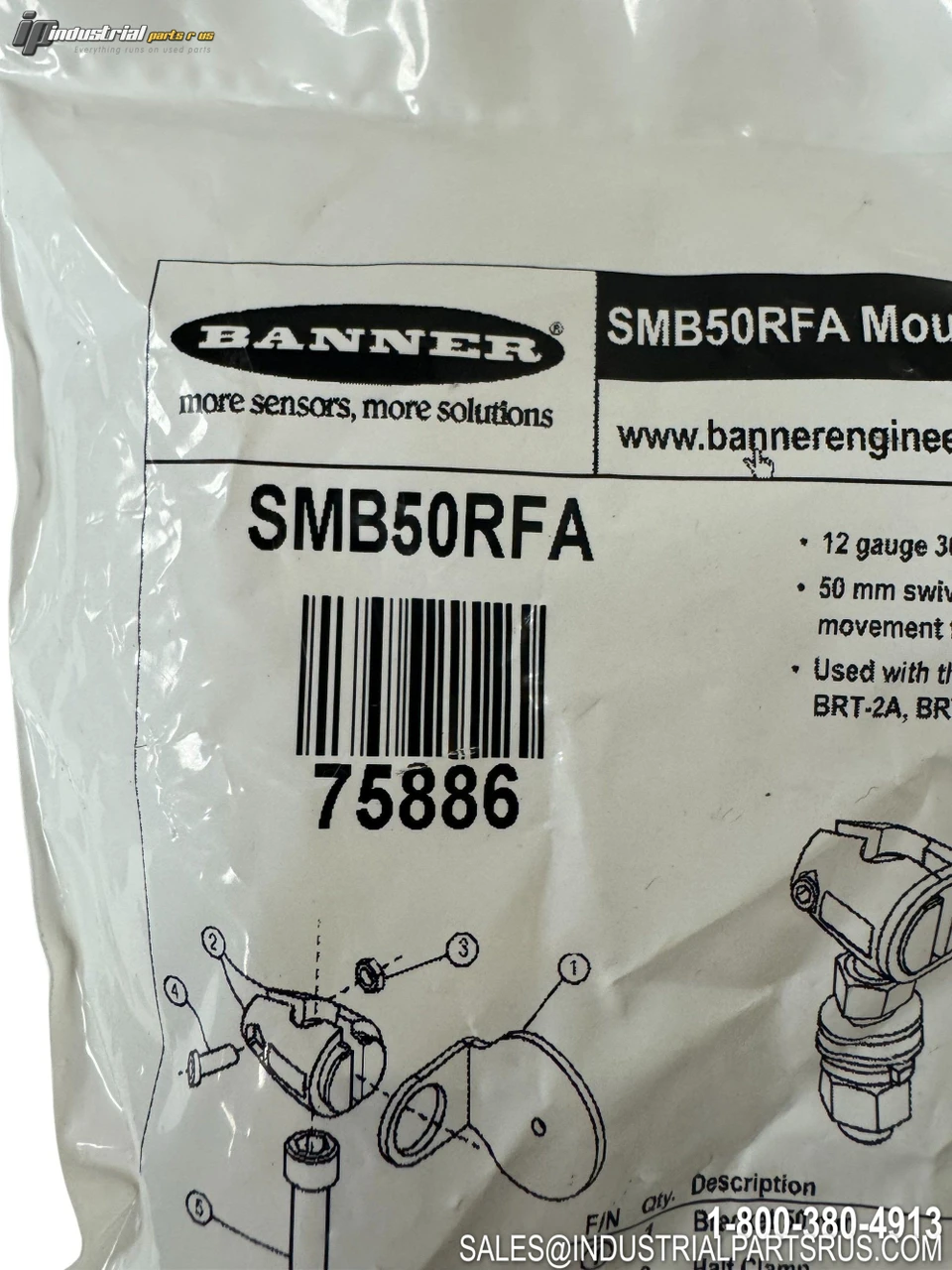

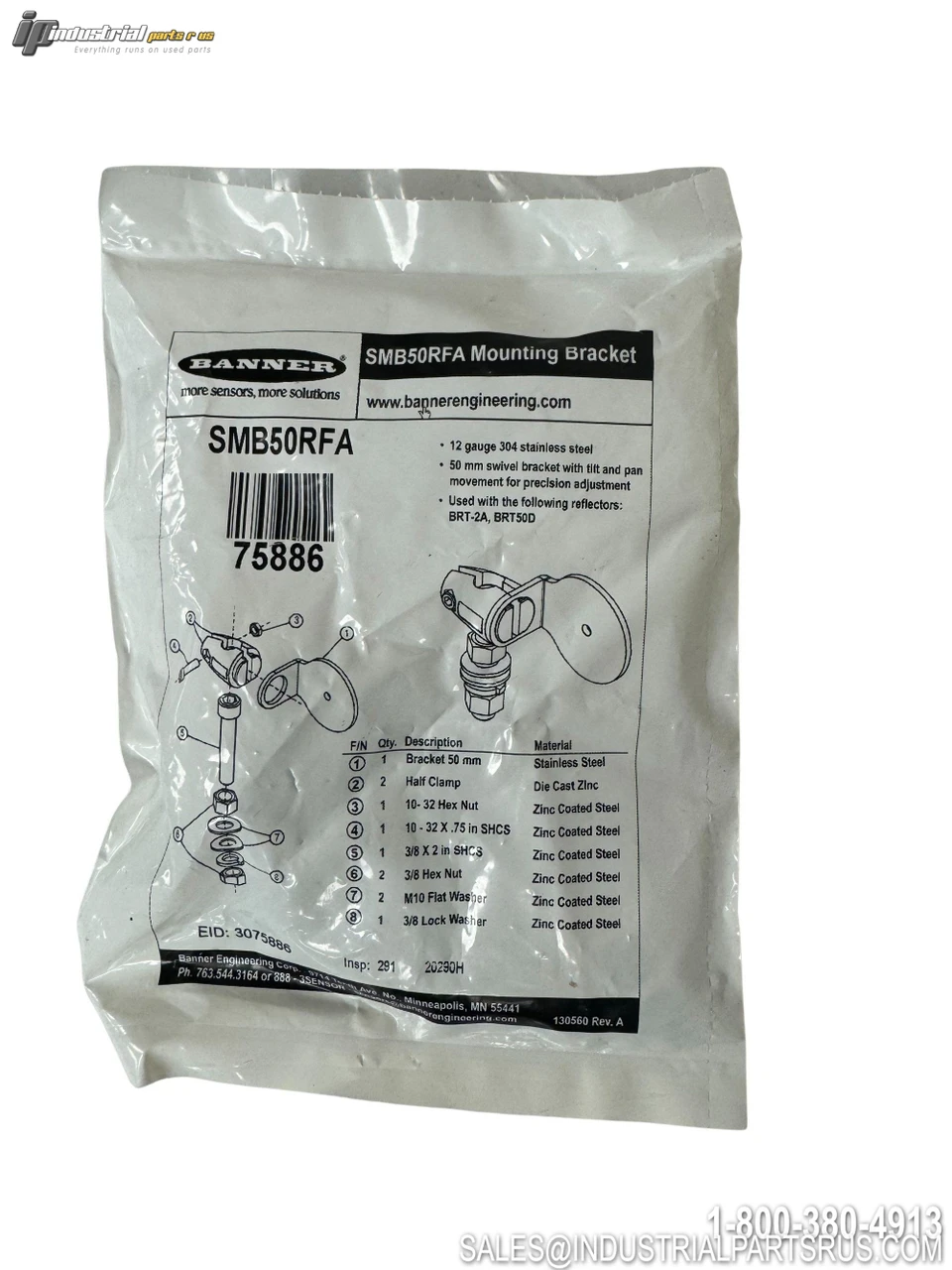

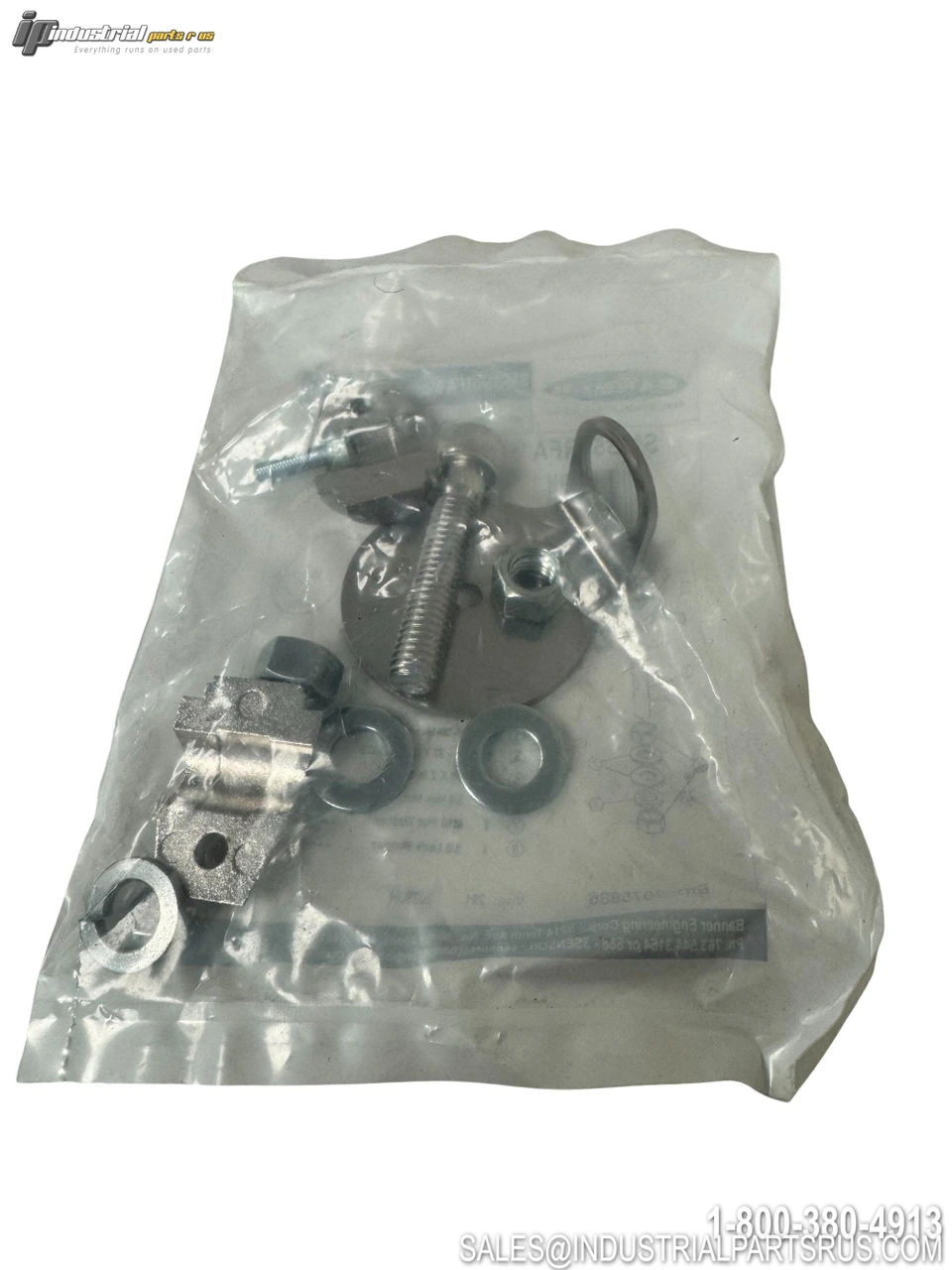

The Banner Engineering SMB50RFA is a swivel mounting bracket from the SMB Series, designed to provide tilt and pan movement for precision angular adjustment of reflectors used with photoelectric sensors. It features a 50 mm diameter mounting plate specifically sized for round reflectors, and is supplied with a 3/8-16 x 2 in. bolt for secure installation. The bracket is constructed of zinc and is RoHS compliant, making it suitable for a wide range of industrial photoelectric sensing applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Banner Engineering |
| Model / Part Number | SMB50RFA |
| Banner Catalog Number | 75886 |
| Series | SMB |
| Product Type | Swivel Mounting Bracket with Tilt and Pan Movement |
| Plate Diameter | 50 mm |
| Compatible With | 50 mm Round Reflectors for Photoelectric Sensors |
| Mounting Bolt / Thread | 3/8-16 x 2 in. Cap Screw (included) |
| Material | Zinc |
| Adjustment Type | Swivel with Tilt and Pan Movement |
| Hardware Included | Yes (3/8-16 x 2 in. bolt) |
| Weight | 0.35 lbs |
| RoHS Compliant | Yes |
| ECCN | EAR99 |
| HTS Code (US) | 8302500000 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Sensor Type Photoelectric
Manufacturer Banner
Part Number SMB50RFA
Shelf P-8
Model SMB50RFA
MPN SMB50RFA
Type Photoelectric Sensor
