Product Description

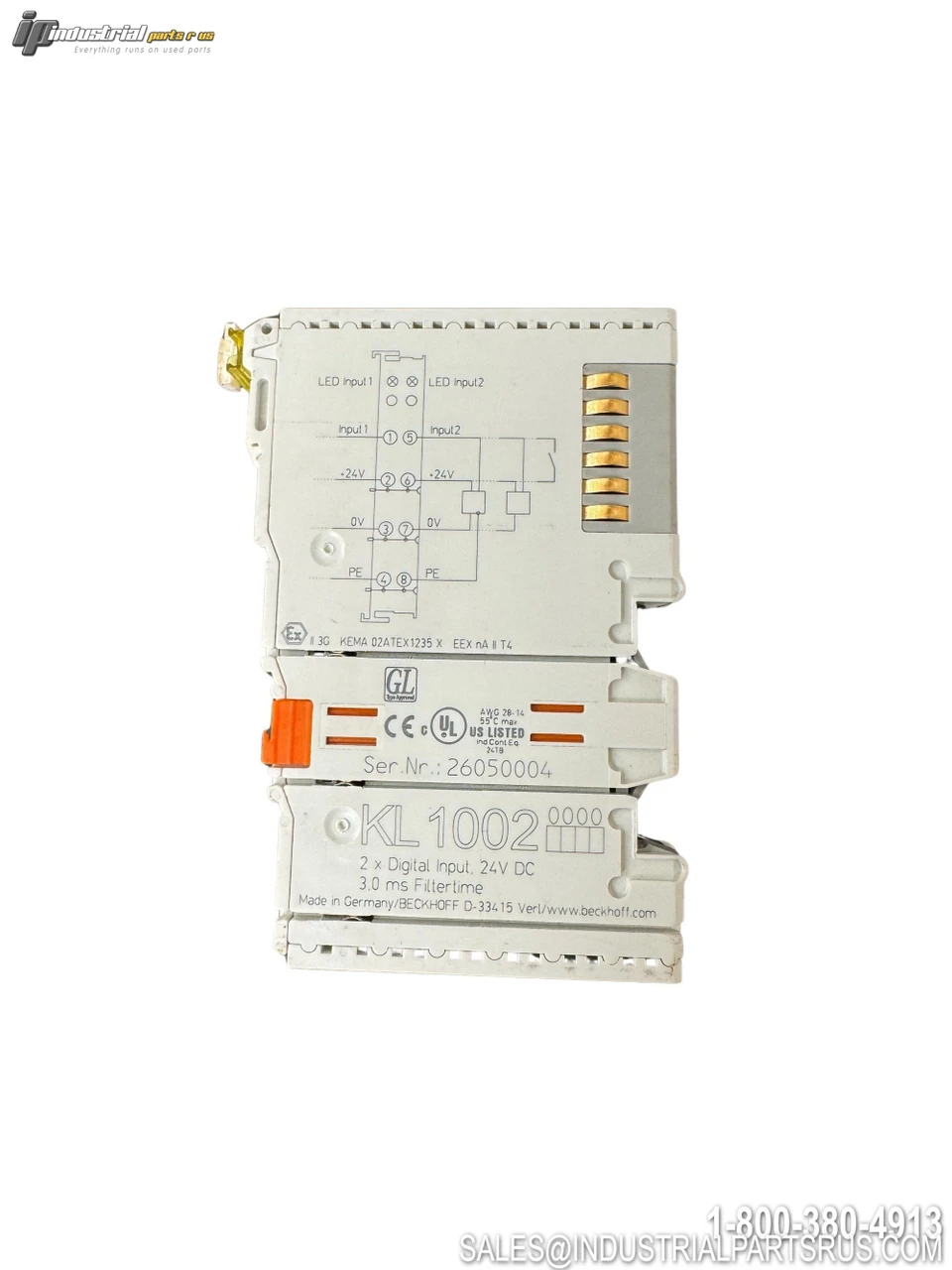

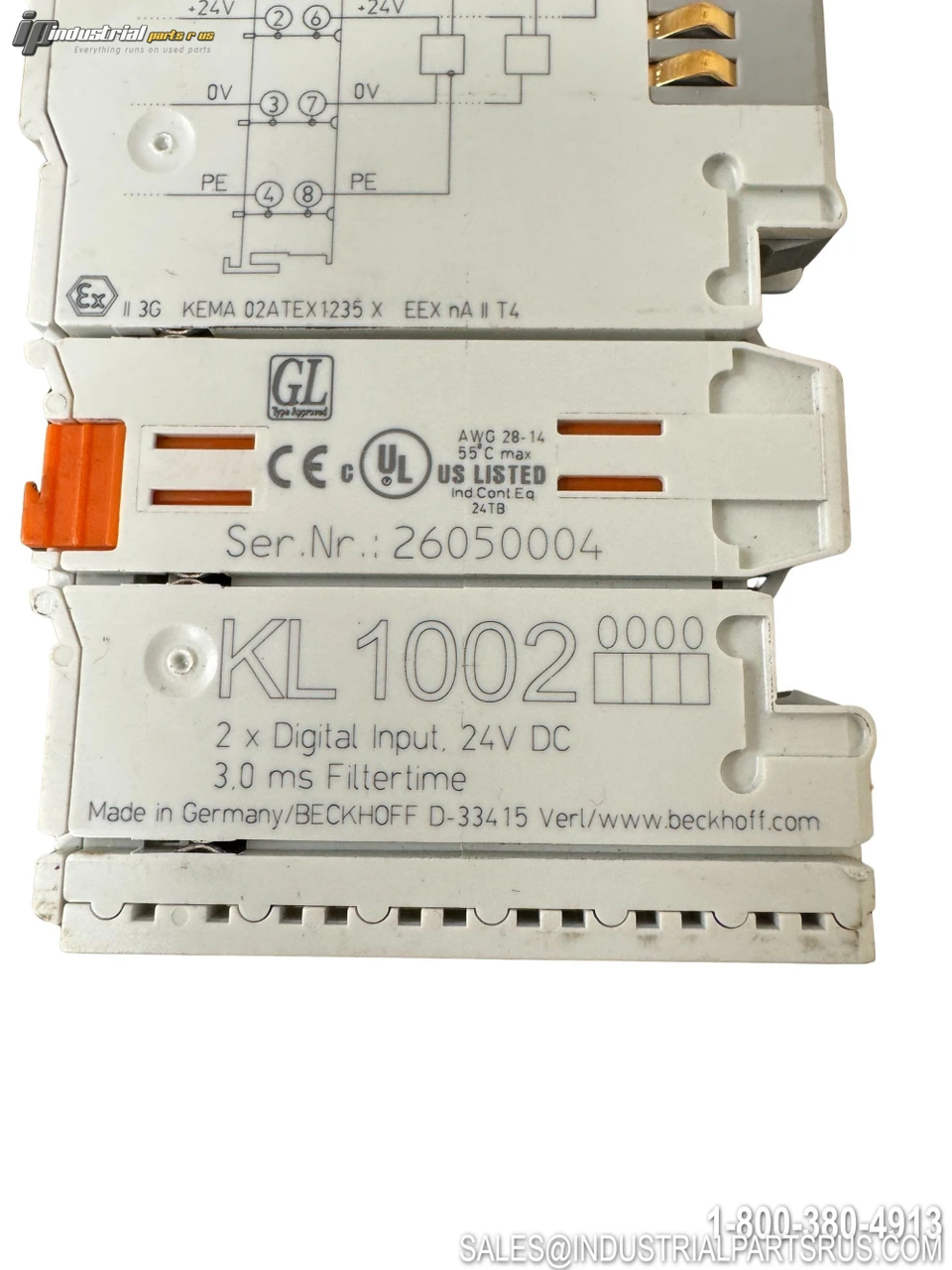

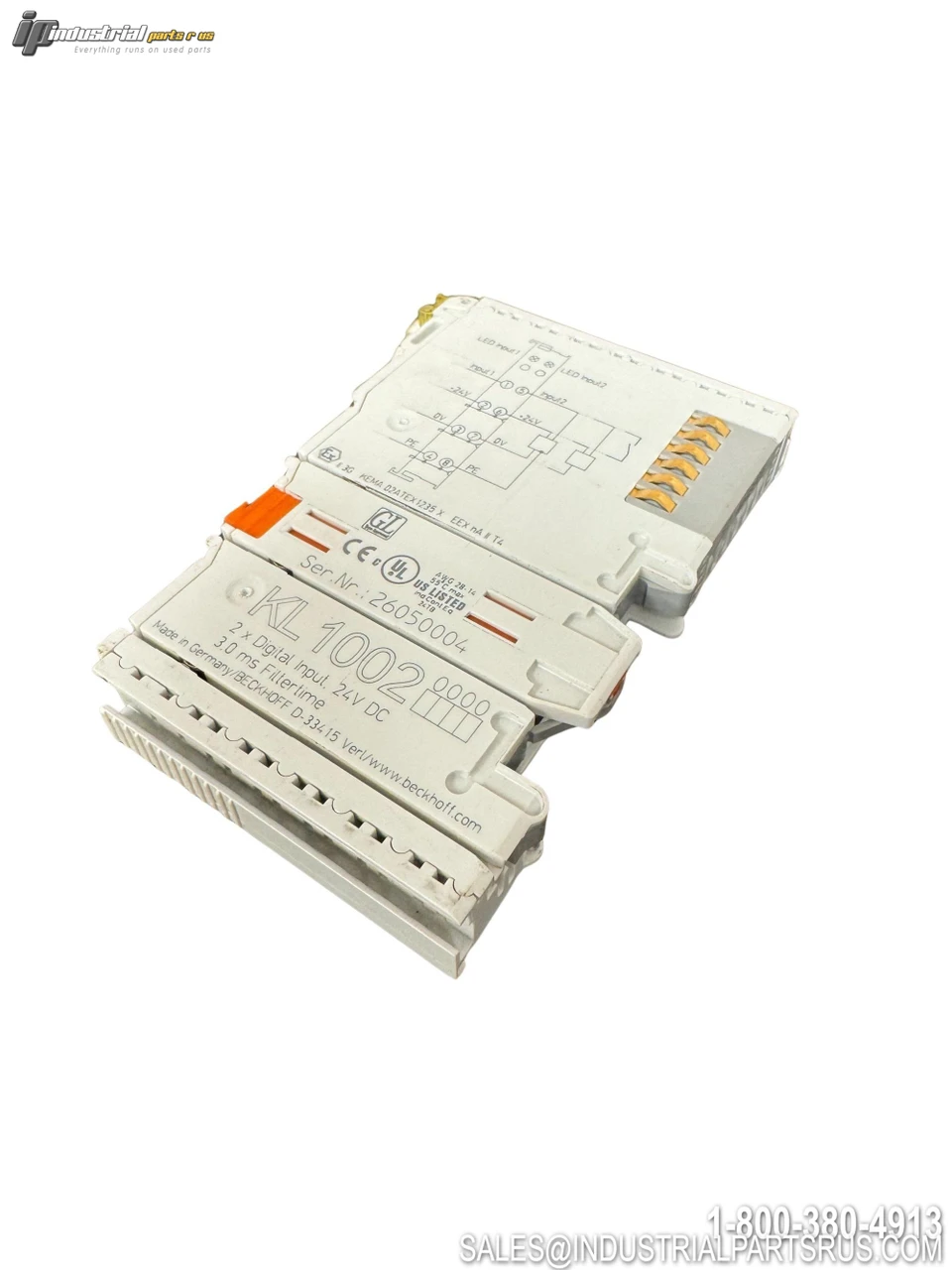

The Beckhoff KL1002 is a 2-channel digital input Bus Terminal that acquires binary 24 V DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. Each channel's signal state is indicated by a dedicated LED, and a built-in 3 ms input filter prevents false triggering from mechanical switch bounce. The module mounts on a standard 35 mm DIN rail and requires no address or configuration settings, making it a plug-and-play addition to any Beckhoff Bus Terminal system.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Beckhoff |
| Model / Part Number | Digital Input Module KL1002, 24VD |
| Product Type | Bus Terminal, 2-Channel Digital Input |
| Number of Inputs | 2 |
| Nominal Voltage | 24 V DC (-15% / +20%) |
| Signal Voltage "0" | -3 V … +5 V |
| Signal Voltage "1" | +15 V … +30 V |
| Input Filter | 3.0 ms (typical) |
| Input Current | 5 mA (typical) |
| Current Consumption K-Bus | 3 mA (typical) |
| Electrical Isolation | 500 V (K-bus / field potential) |
| Bit Width in Process Image | 2 input bits |
| Connection Technology | 4-wire |
| Specification / Standard | EN 61131-2, Type 1 |
| Configuration | No address or configuration setting required |
| IP Rating | IP20 |
| Mounting | 35 mm DIN rail, EN 60715, variable position |
| Housing Material | Polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | approx. 50 g |
| Operating Temperature | -25 °C … +60 °C |
| Storage Temperature | -40 °C … +85 °C |
| Relative Humidity | 5% … 95%, no condensation |
| Wire Connection Cross-Section | 0.08 … 2.5 mm² (solid/flexible); AWG 28–14 |
| Power Contact Current Load | Imax: 10 A |
| Signal Indicators | LED per channel (2 total) |
| Pluggable Wiring | Compatible with all KSxxxx Bus Terminals |
| EMC Immunity / Emission | EN 61000-6-2 / EN 61000-6-4 |
| Approvals / Markings | CE, UL, CCC, ATEX, IECEx, DNV |
| ATEX Ex Marking | II 3 G Ex ec IIC T4 Gc |
| Manufacturer | Beckhoff Automation GmbH & Co. KG |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Germany
Full Load Amps 3 mA typical
Manufacturer Beckhoff
Enclosure Type IP20
Part Number DIGITAL INPUT MODULE KL1002, 24VD
Controller Platform Bus Terminal
Shelf E-7 Tub 5
Model DIGITAL INPUT MODULE KL1002, 24VD
MPN DIGITAL INPUT MODULE KL1002, 24VD
Type PLC I/O Module
