Product Description
The BEI XHS35F-50-R1-SS-5000-ABZC-4469-SM18 is an industrial hollow-shaft rotary encoder designed for position and motion feedback applications. This unit features a 5,000 PPR configuration, hollow-shaft mounting, a side-mounted circular connector, and a 5–15 VDC input. It is suitable for industrial automation, motor feedback, machinery, and motion control applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | BEI |
| Model / Part Number | XHS35F-50-R1-SS-5000-ABZC-4469-SM18 |
| Additional Part Number | 924-01070-390 |
| Product Type | Industrial Rotary Encoder |
| Encoder Series | XHS35 |
| Mounting Style | Hollow Shaft |
| Resolution | 5000 PPR |
| Output Configuration | ABZC |
| Output / Driver Code | 4469 |
| Connector Configuration | SM18 |
| Input Voltage | 5–15 VDC |
| Connector Type | Side-Mounted Circular Connector |
| Typical Applications | Industrial Automation, Position Feedback, Motor Feedback, Motion Control |

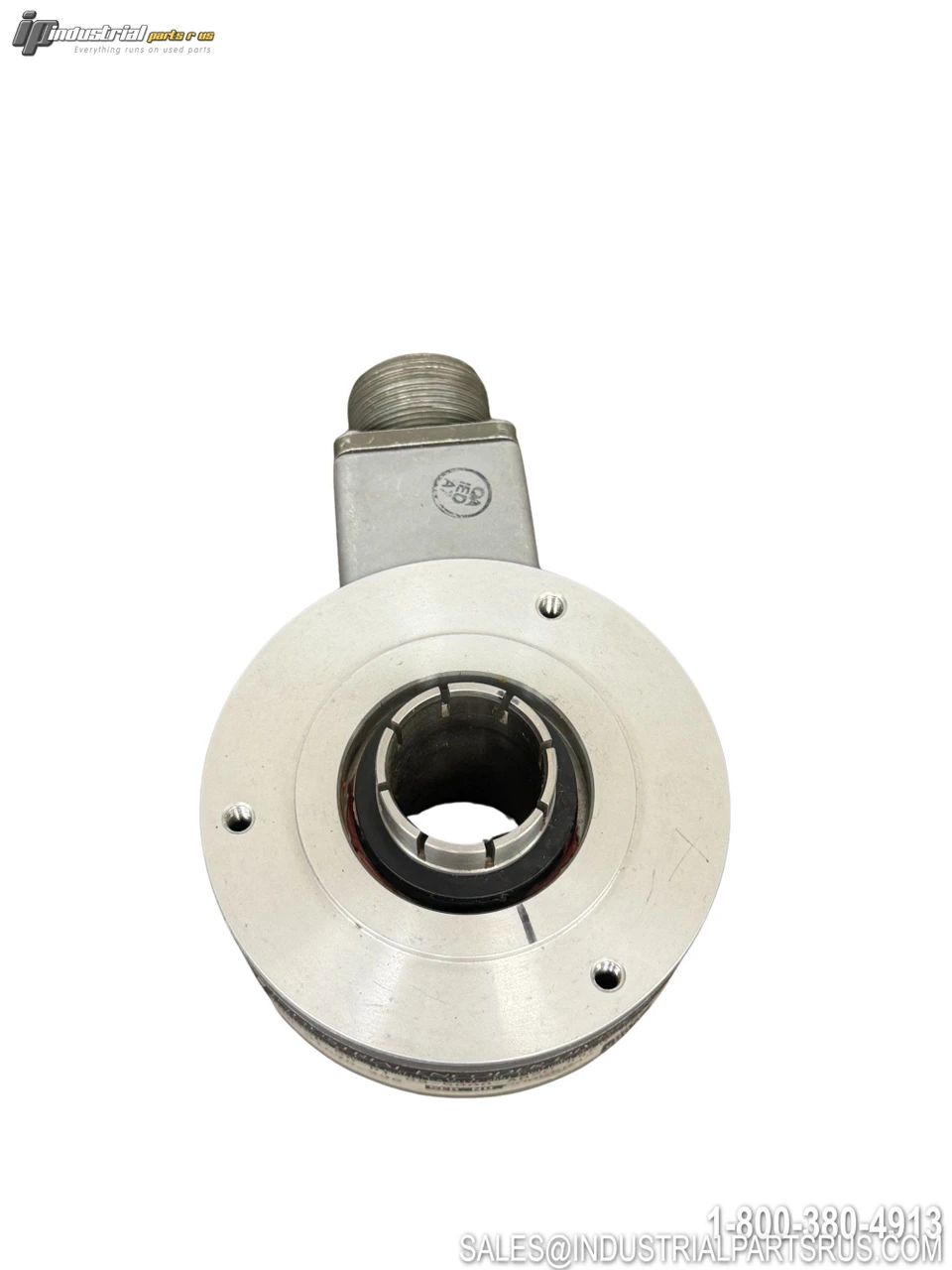

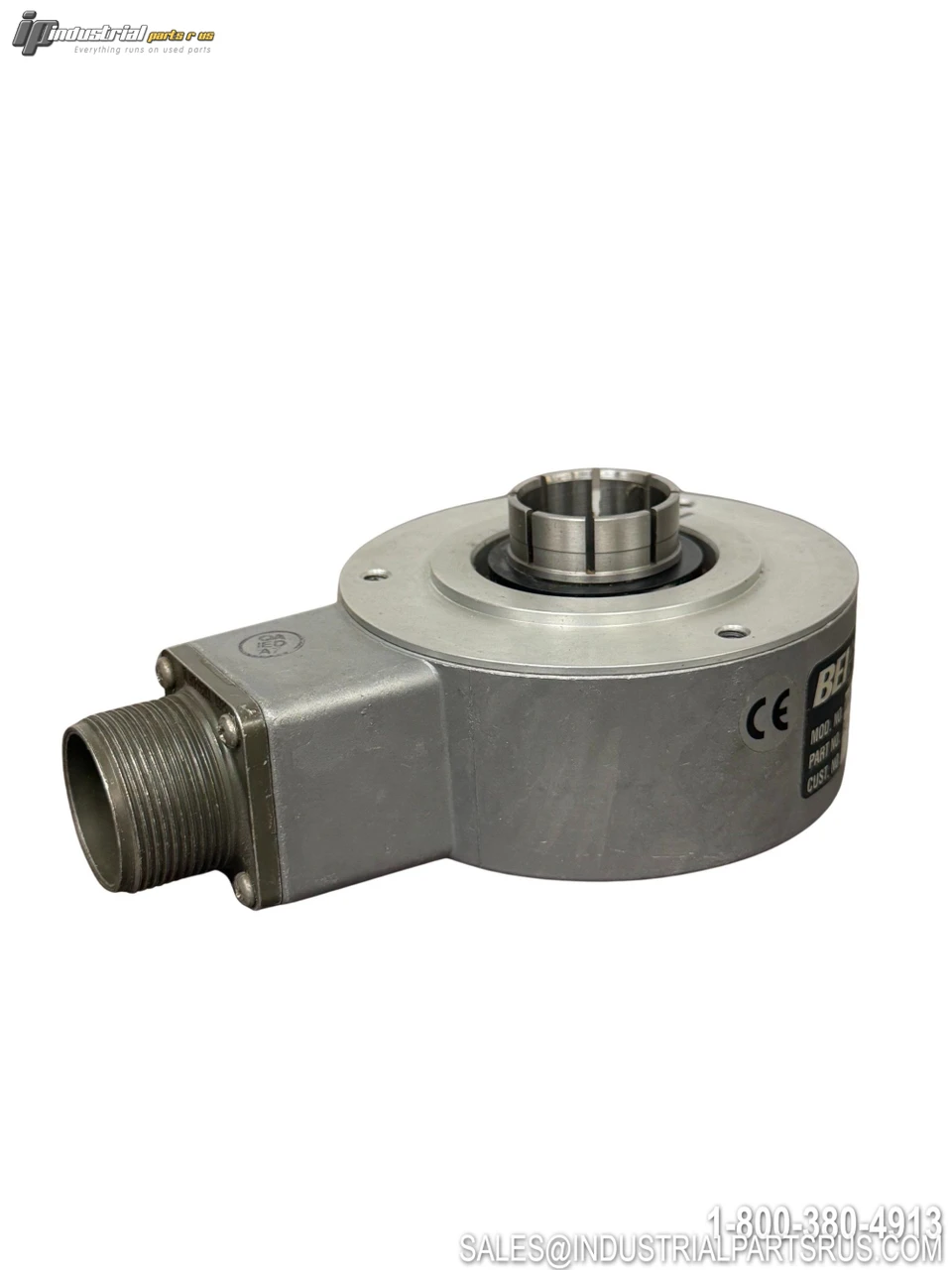

Note: Please refer to the photos for the exact configuration, connector, mounting arrangement, and overall physical condition of the unit.
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type 4469 Differential Line Driver, 100 mA sink/source
Full Load Amps 100 mA typical + output load, 250 mA max
Manufacturer Bei
Enclosure Type NEMA 4, NEMA 13, IP65
Part Number XHS35F-50-R1-SS-5000-ABZC-4469-SM18
Shelf D-7 Tub 2
Model XHS35F-50-R1-SS-5000-ABZC-4469-SM18
MPN XHS35F-50-R1-SS-5000-ABZC-4469-SM18
Type Incremental Encoder
