Product Description

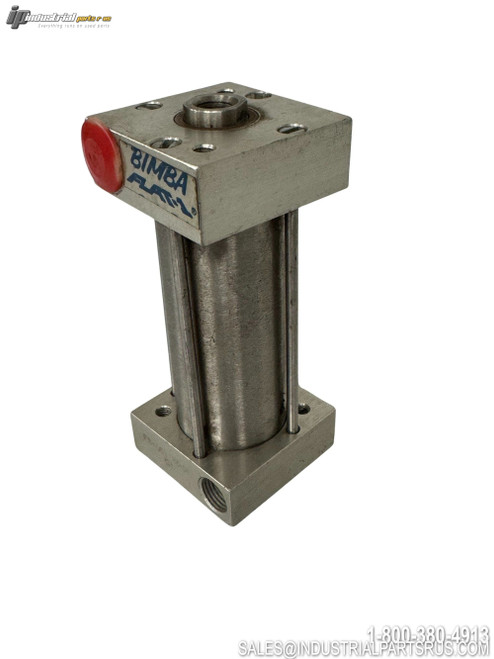

The Bimba FS-091 is a double-acting, single end rod pneumatic cylinder from the Square Flat-1 series designed for space-saving applications. This cylinder features a square flat design that minimizes centerline distance when mounted side by side and provides convenient horizontal and side mounting options.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Bimba |
| Model/Part Number | FS-091 |
| Product Series | Square Flat-1 |
| Cylinder Action | Double-acting |
| Rod Configuration | Single End Rod |
| Bore Diameter | 1-1/16 inch |
| Stroke Length | 1 inch |
| Maximum Pressure | 200 PSI |
| Rod Material | Stainless Steel 303 |
| Body Material | Stainless Steel 304 |
| Head Material | Anodized Aluminum Alloy |
| Seal Material | Buna-N |
| Rod Thread | 5/16-24 UNF Female |
| Port Size | 1/8 inch NPT |
| Mounting Holes | 4 x #8-32 UNC Threaded |
| Rod Bushing | Oil-impregnated Bronze |
| Tie Rod Material | Stainless Steel 303 |
| Design Type | Square Flat Compact |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Bimba
Part Number FS-091
Shelf B-19 Tub 1
Bore Diameter 1-1/16 in
Model FS-091
MPN FS-091
Type Pneumatic Cylinder
