Product Description

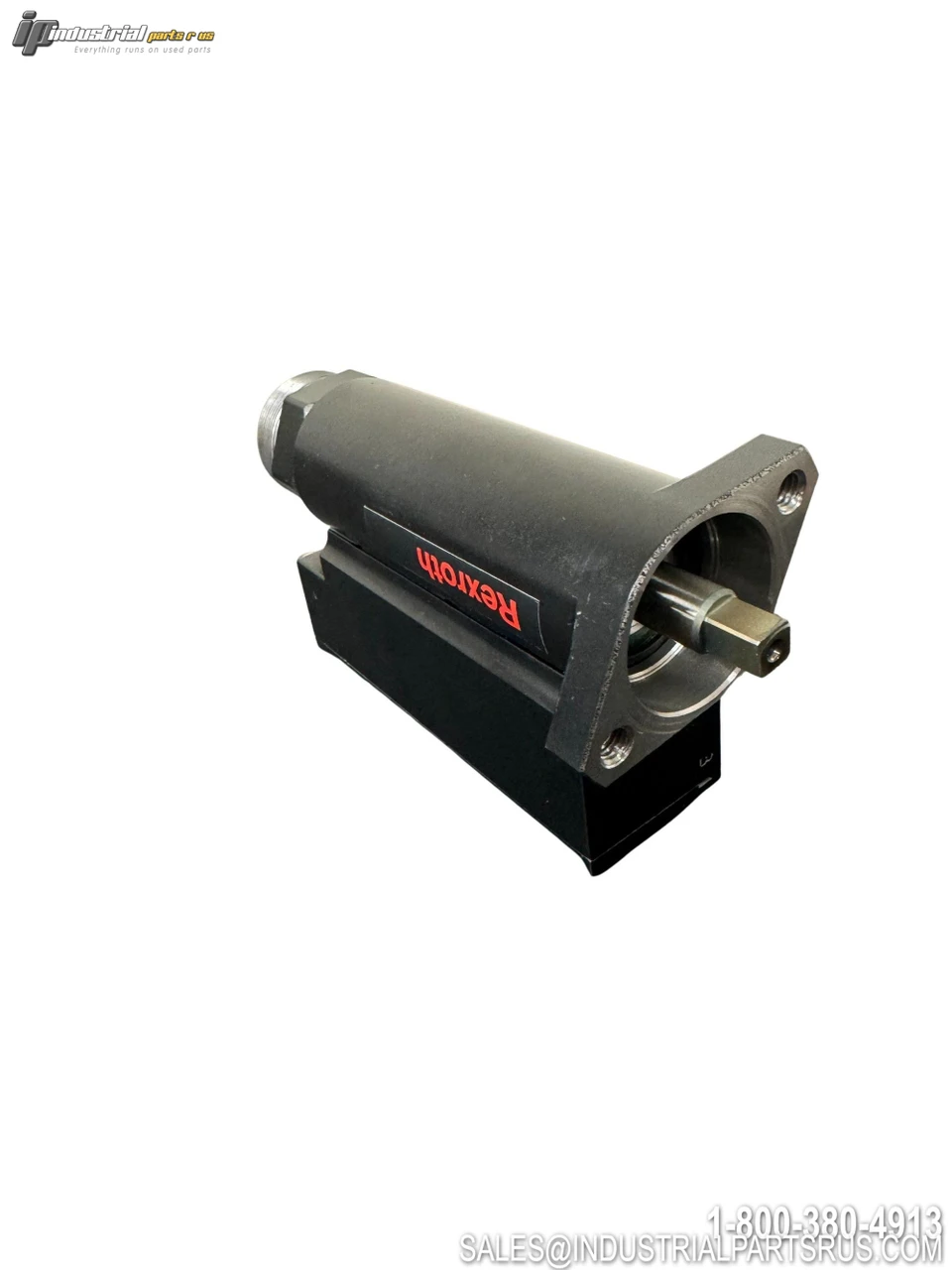

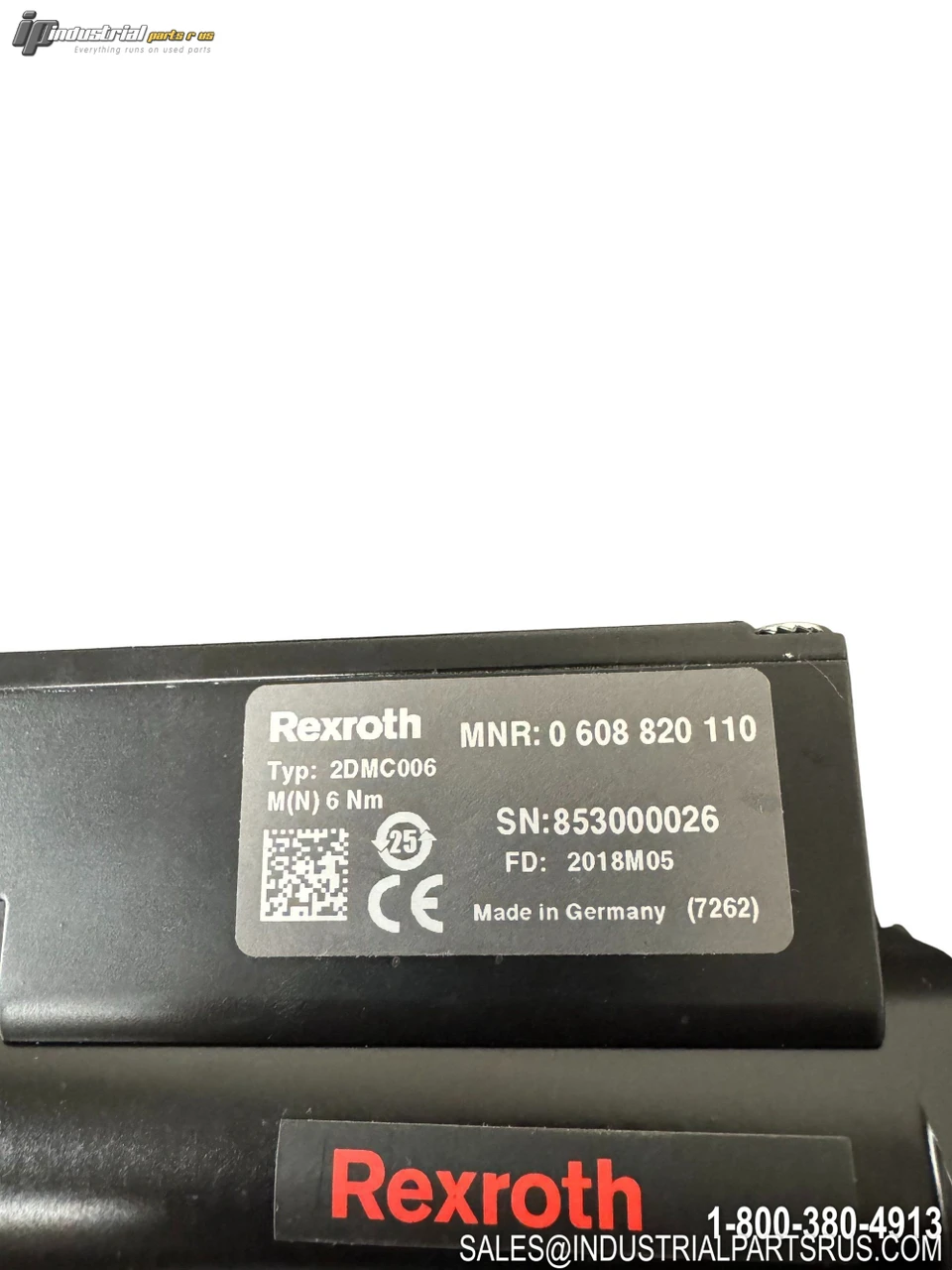

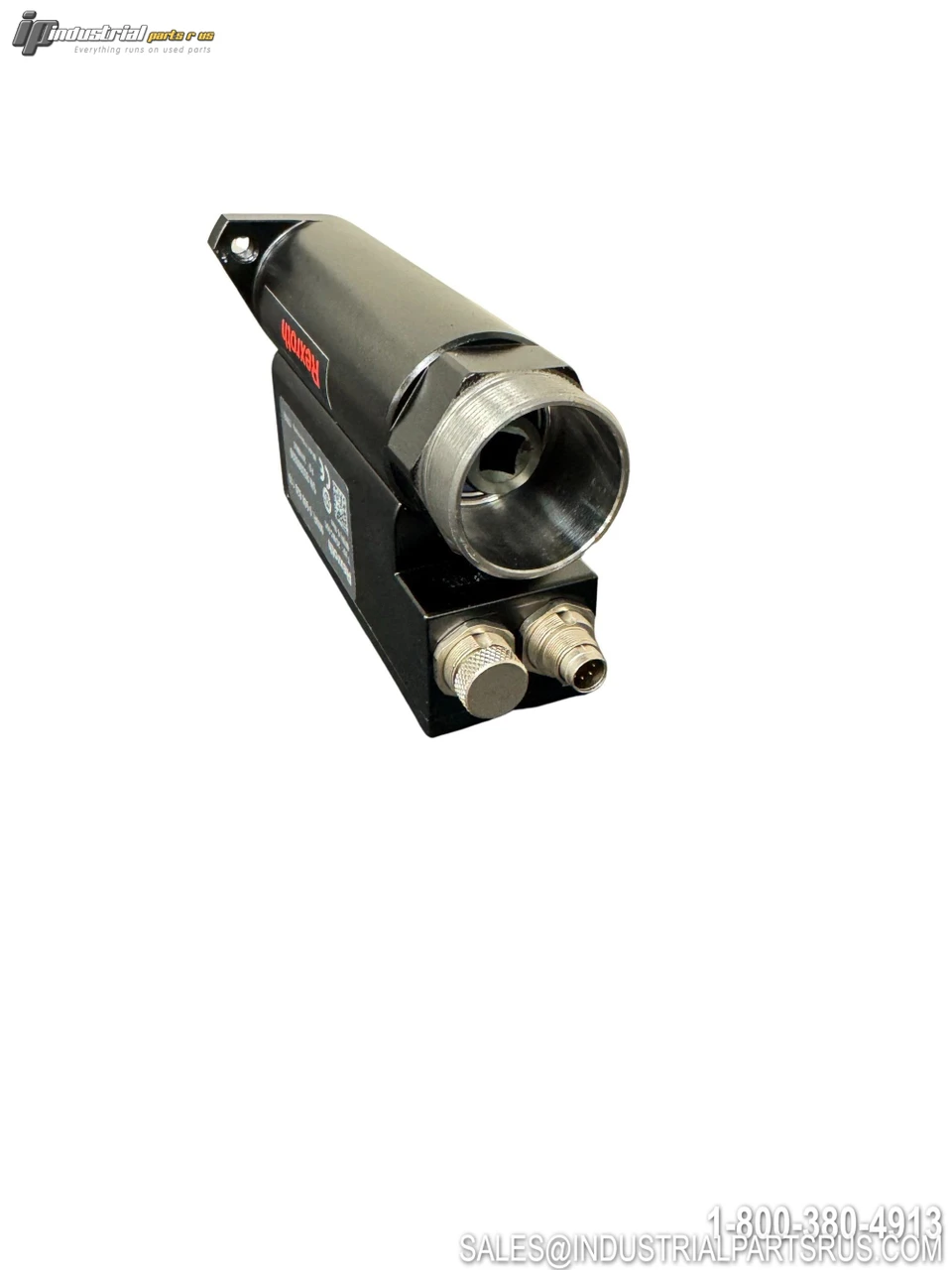

The Bosch Rexroth 0608820110 is a Size 2 Measurement Transducer (model 2DMC006, designation SZ2) designed for use with the Rexroth Tightening System 350 tightening spindles. It features non-contact, maintenance-free sensing technology for direct analysis of torque, angle of turn, and gradient, and includes an integrated cycle counter. The unit can be configured as a primary or redundant measurement transducer when used with the appropriate redundant adapter, providing enhanced system safety for critical assembly applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Bosch Rexroth |
| Model / Part Number | 0608820110 |
| Product Name | TRANSDUCER 2DMC006 SZ2 |
| Transducer Code | 2DMC006 |
| Size Designation | SZ2 (Size 2) |
| Compatible System | Rexroth Tightening System 350 |
| Product Category | Tightening Spindles / Measurement Transducers |
| Nominal Torque | 6 Nm |
| Working Range | 0.6 – 5.5 Nm (spindle size 2) |
| Max Output Drive Speed | 1000 rpm |
| Reduction Ratio | 1:1 |
| Average Efficiency | 1 (100%) |
| Installation Length | 118.5 mm |
| Weight | 0.55 kg |
| Sensing Technology | Non-contact, maintenance-free |
| Measured Parameters | Torque, Angle of Turn, Gradient |
| Integrated Cycle Counter | Yes |
| Redundant Configuration | Yes (with redundant adapter, e.g. 2AR – Order No. 0608810020) |
| Compatible Spindle Bearing | 2GA82 (Order No. 0608800077), 2GB82 (Order No. 0608800078) |
| Compatible Planetary Gearbox | 2GE19, 2GE26 |
| Compatible EC Motor | EC302 (Order No. 0608701016) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Germany
Manufacturer Rexroth
Part Number 0608820110
Shelf K-48
Model 0608820110
MPN 0608820110
Type Current Sensor
