Product Description

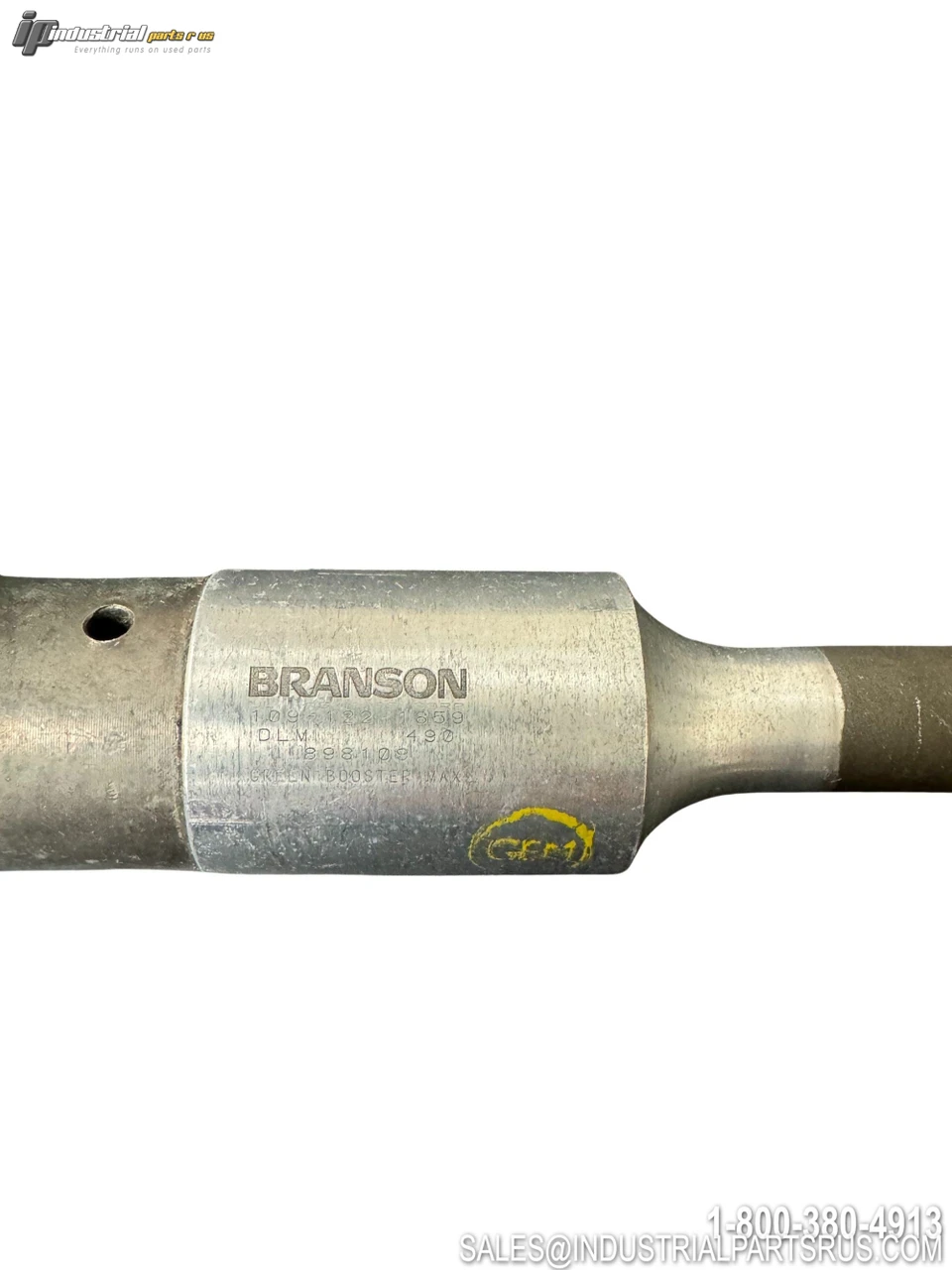

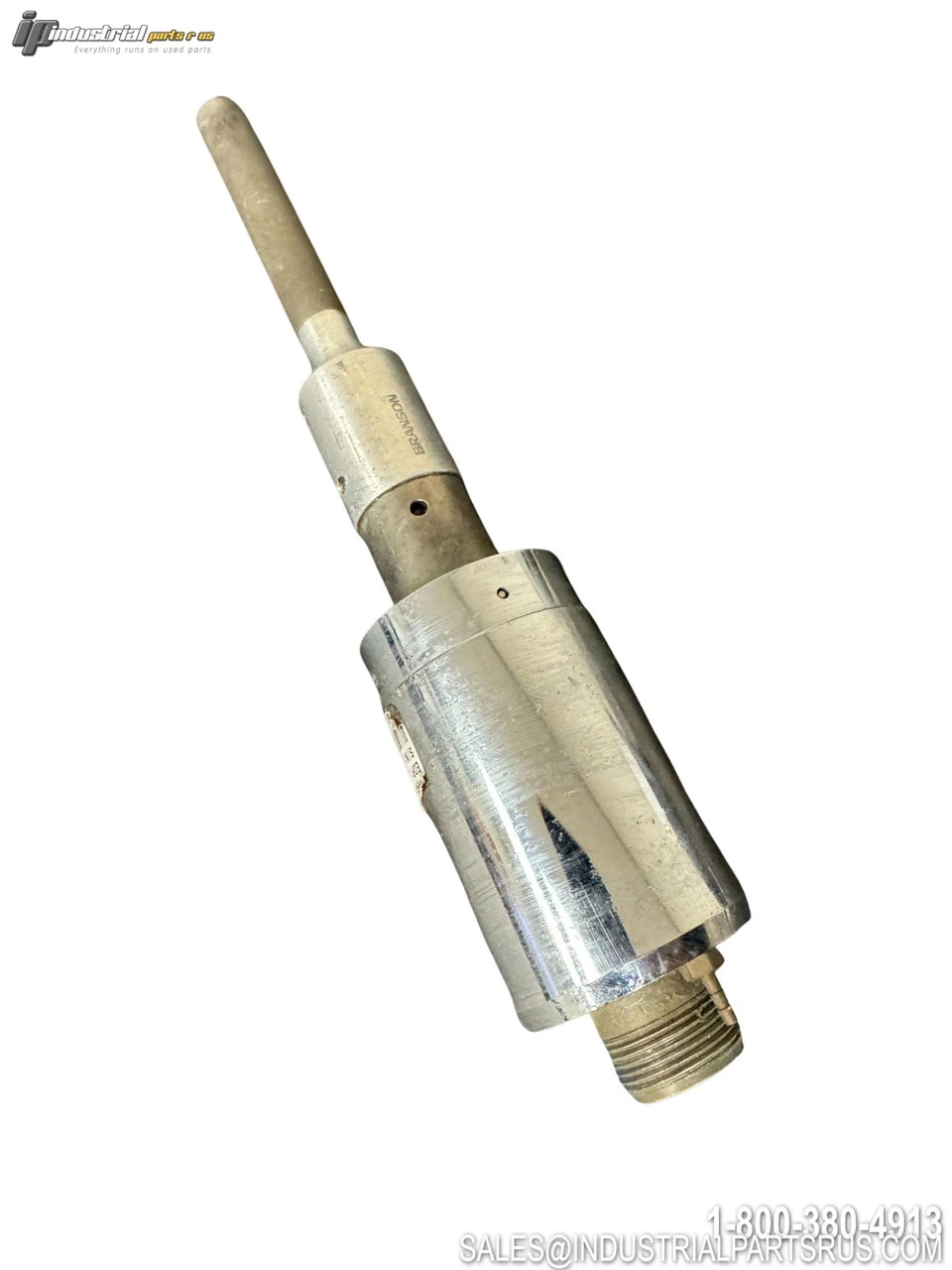

The Branson 4TR is a 40 kHz piezoelectric ultrasonic converter (transducer) designed for use with Branson 900, 2000, and 2000X Series ultrasonic welding systems. It converts high-frequency electrical energy from the power supply into mechanical ultrasonic vibrations, which are transmitted through a booster and horn to the workpiece. The 4TR features a military-style MS circular connector, analog output, and AC current type. It is compatible with Branson actuator models 4MB4, 4MB3, 4MC3, 943, and 947, and mounts via stud mount. OEM part number 101-135-042 (also catalogued as 101-135-042R).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Branson |
| Model / Part Number | 4TR |

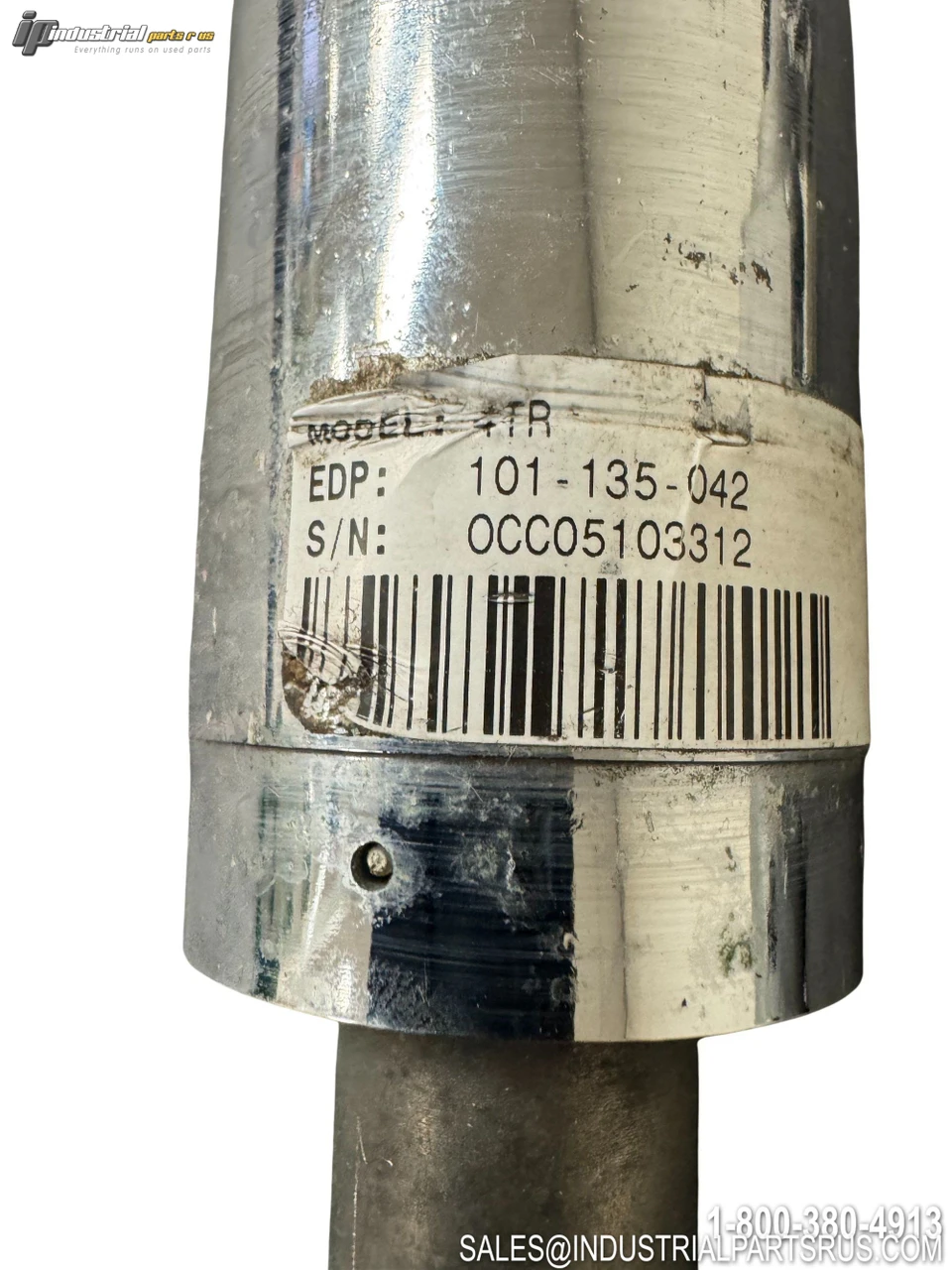

| OEM EDP / Part Number | 101-135-042 / 101-135-042R |
| Product Type | Ultrasonic Converter (Transducer) |
| Frequency | 40 kHz |
| Power Rating | 800W |
| Compatible Welder Series | Branson 900, 2000, 2000X Series (40 kHz) |
| Compatible Actuator Models | 4MB4, 4MB3, 4MC3, 943, 947 |
| Connector Type | Military-Style MS Connector |
| Weight | 5.0 lb |
| Transducer Construction | Piezoelectric ceramic (Langevin/sandwich type) |
| Application | Ultrasonic plastic welding, cutting, sealing |
| Manufacturer | Branson Ultrasonics (Emerson) |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Analog
Sensor Type Ultrasonic
Manufacturer Branson
Part Number 4TR
Shelf C-18
Model 4TR
MPN 4TR
Type Pressure Sensor
