Product Description

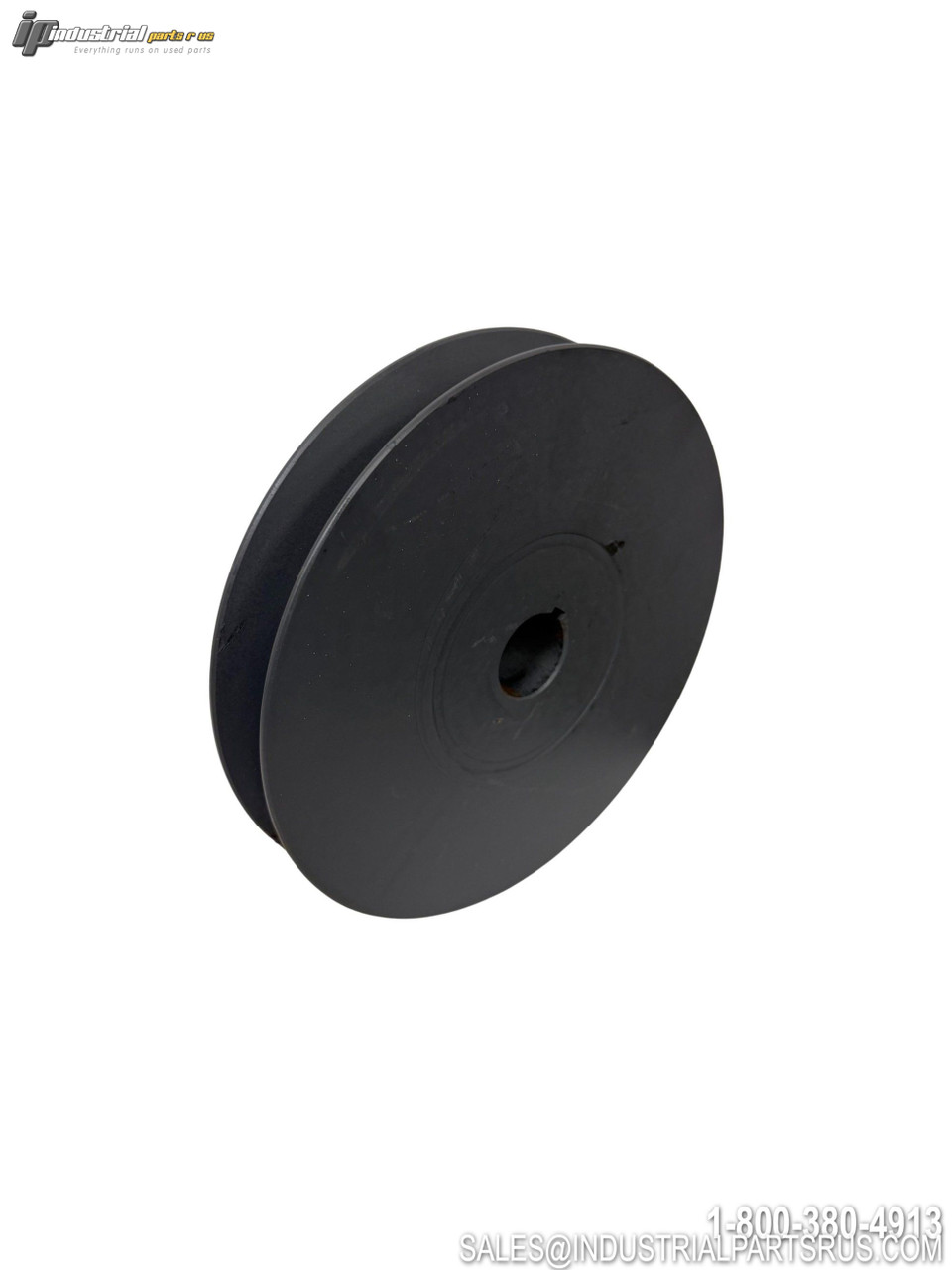

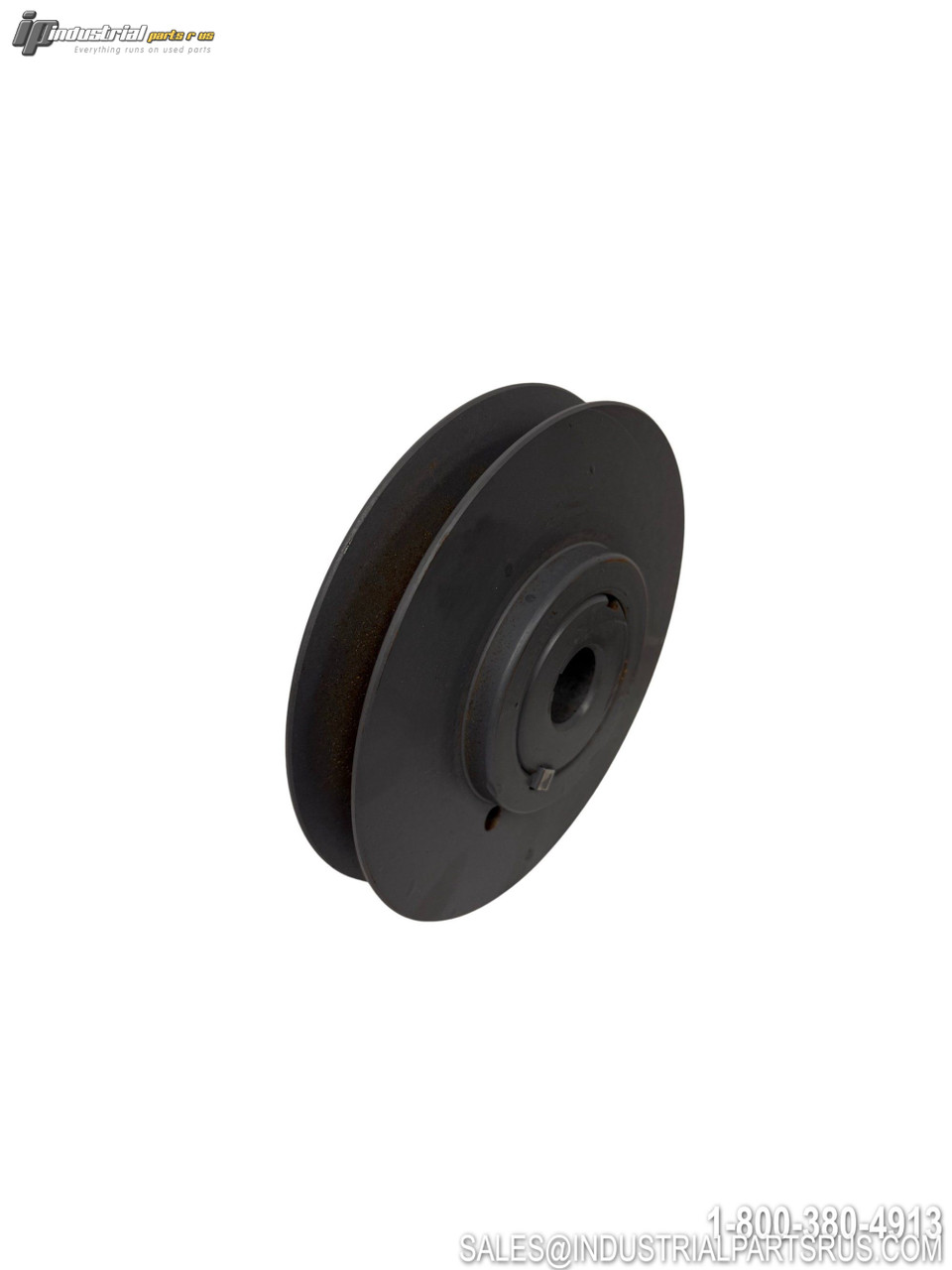

The Browning 1VP75X is a variable pitch sheave from the VP series, designed for adjustable speed control applications. This single groove, cast iron sheave provides flexible belt drive solutions for fans, blowers, and other industrial equipment requiring variable speed operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Browning |
| Model/Part Number | 1VP75X |
| Type | Variable Speed Pulley |
| Series | VP |
| Number of Grooves | 1 |
| Outside Diameter | 7.5 inches |
| Material | Cast Iron |
| Belt Section Size | 4L, A, 5L, B, 5V |
| Bore Type | Finished with Keyway |
| Keyway Size | 1/4 x 1/8 inches |
| Setscrew Type | 5/16-18 Knurled |
| Maximum Horsepower | Up to 25 HP |
| Minimum Pitch Diameter | 5.9 inches |
| Maximum Pitch Diameter (5V) | 7.4 inches |
| Face Width Range | 7/8 to 1-1/4 inches |
