Product Description

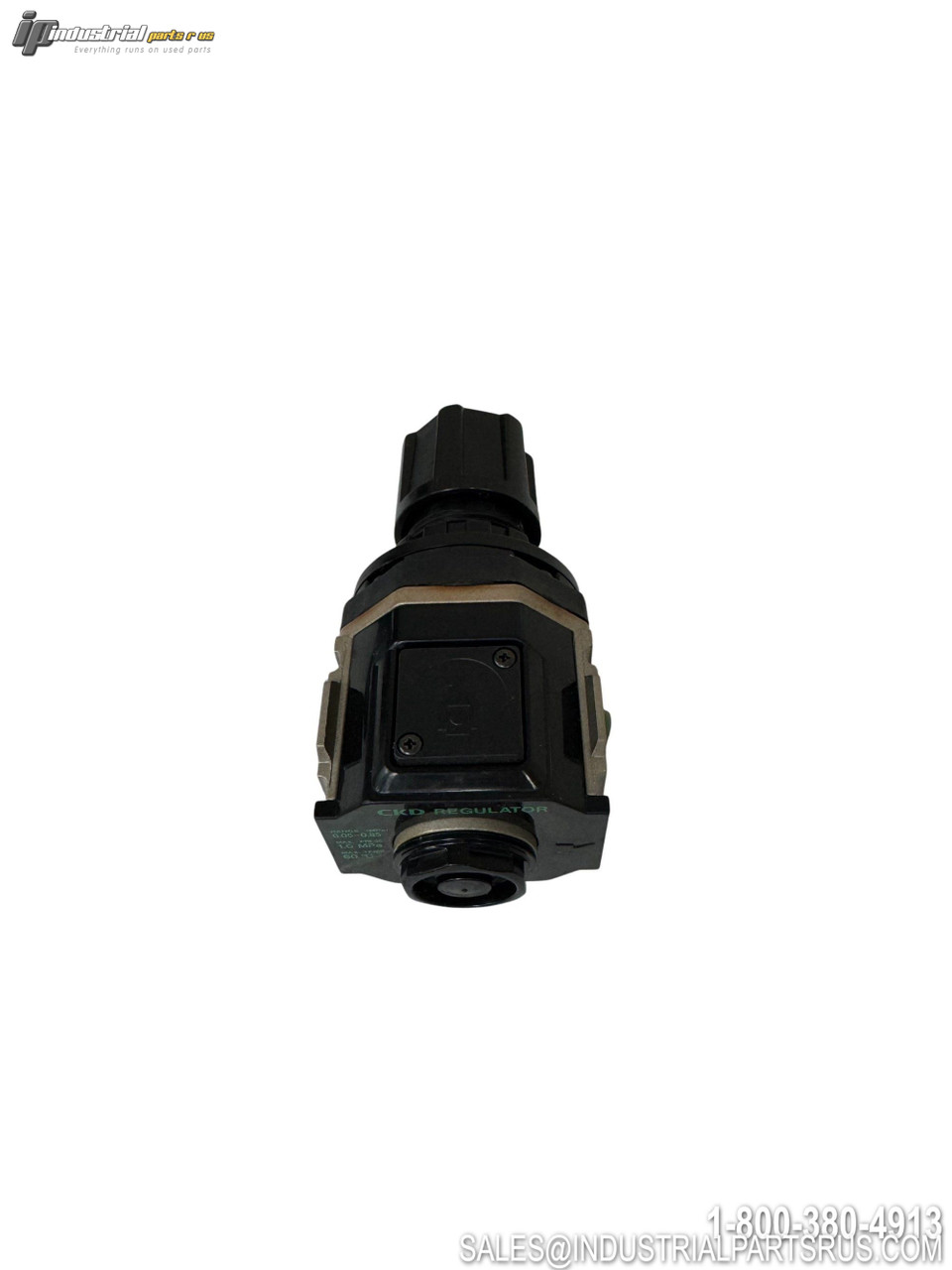

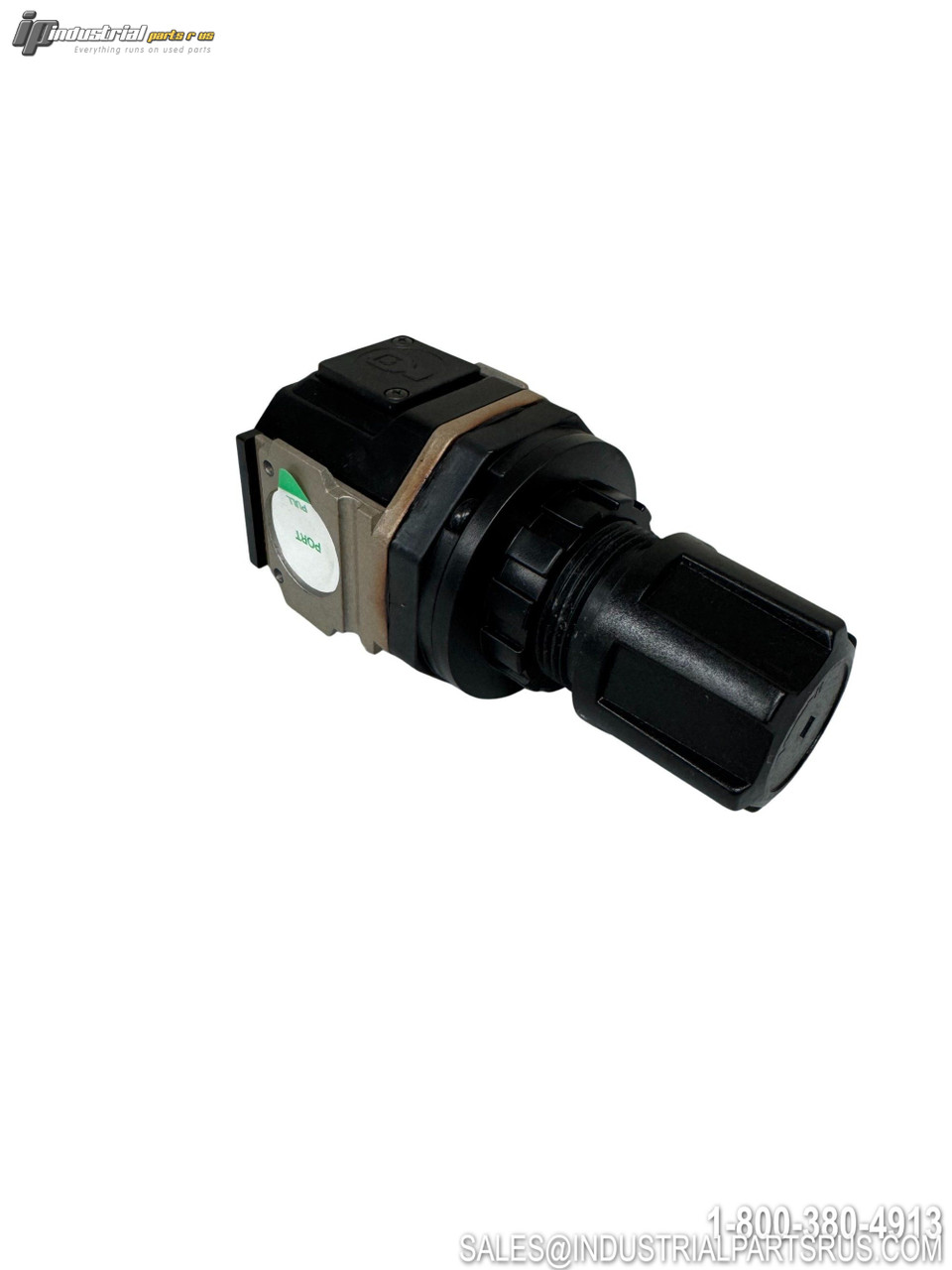

The CKD R3100-10 is a reverse-type pneumatic pressure regulator from CKD's R3100 Standard White Series. It features a built-in reverse flow (back-pressure release) function that allows secondary pressure to be relieved back to the primary side, making it well-suited for applications such as rechargeable battery processing equipment and other precision pneumatic circuits requiring pressure balance control. The regulator includes an embedded pressure gauge and supports tool-free pressure adjustment via a knob, with a push-lock mechanism for secure setting.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | CKD |
| Model / Part Number | R3100-10 |
| Product Type | Reverse Air Regulator |
| Series | R3100 Standard White Series |
| Port Size Code | 10 = 3/8" |
| Port Thread Type | Rc (BSPT) — standard (no N/G suffix) |
| Set Pressure Range | 0.05 to 0.85 MPa (standard spring) |
| Maximum Working Pressure | 1.0 MPa |
| Pressure Relief Type | With relief mechanism (standard) |
| Reverse Flow Function | Yes — secondary to primary back-pressure release |

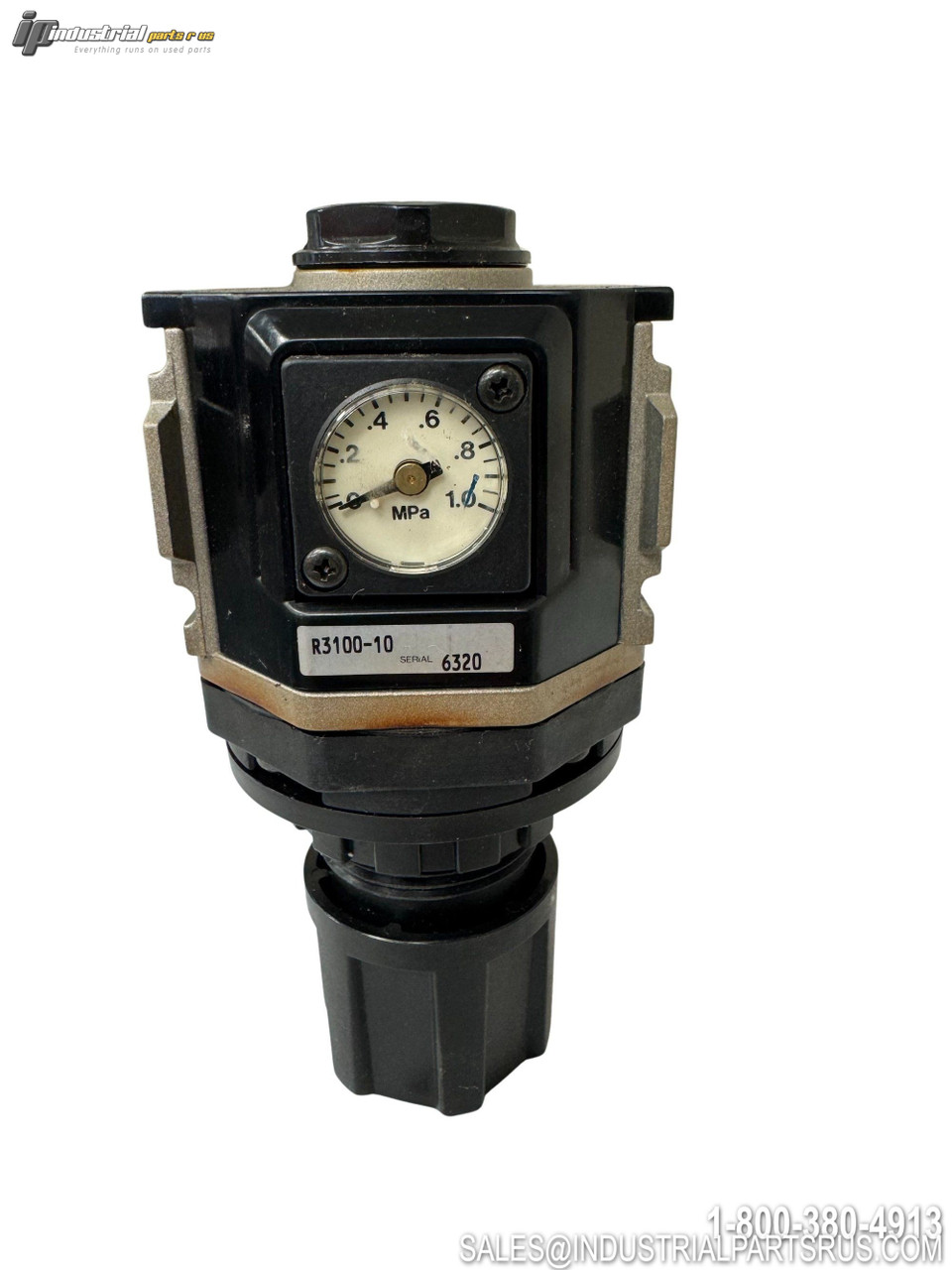

| Pressure Gauge | Embedded, 0–1.0 MPa indication range |
| Pressure Adjustment | Tool-free knob with push-lock |
| Working Fluid | Air |
| Ambient / Fluid Temperature Range | 5 to 50°C |
| Mounting | Inline piping or panel mount (panel nut included) |
| Compatible Attachments | L-bracket, C-bracket, piping adaptor set (optional) |
| Manufacturer | CKD Corporation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer CKD
Part Number R3100-10
Shelf B-2
Model R3100-10
MPN R3100-10
Type Air Regulator
