Product Description

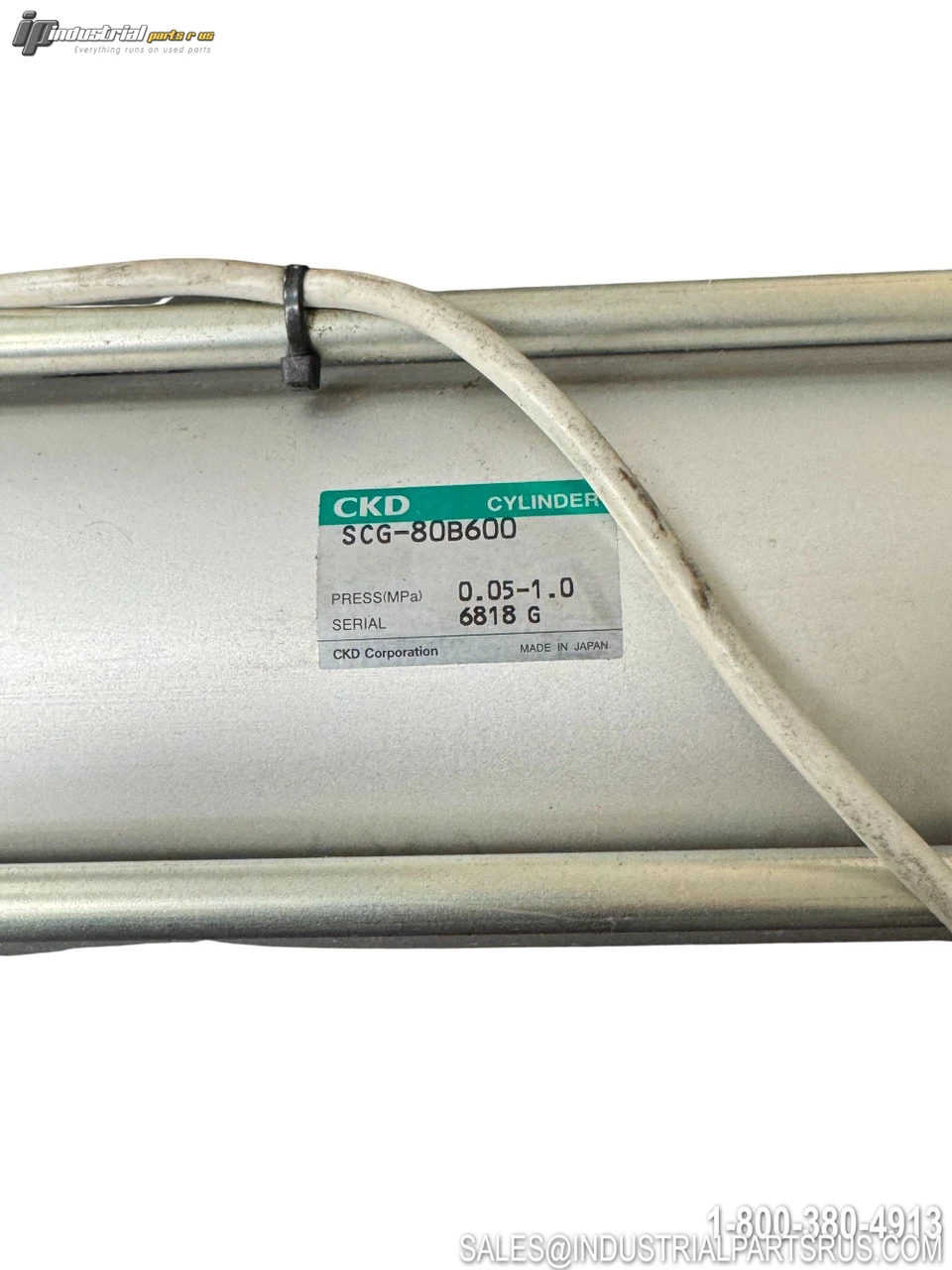

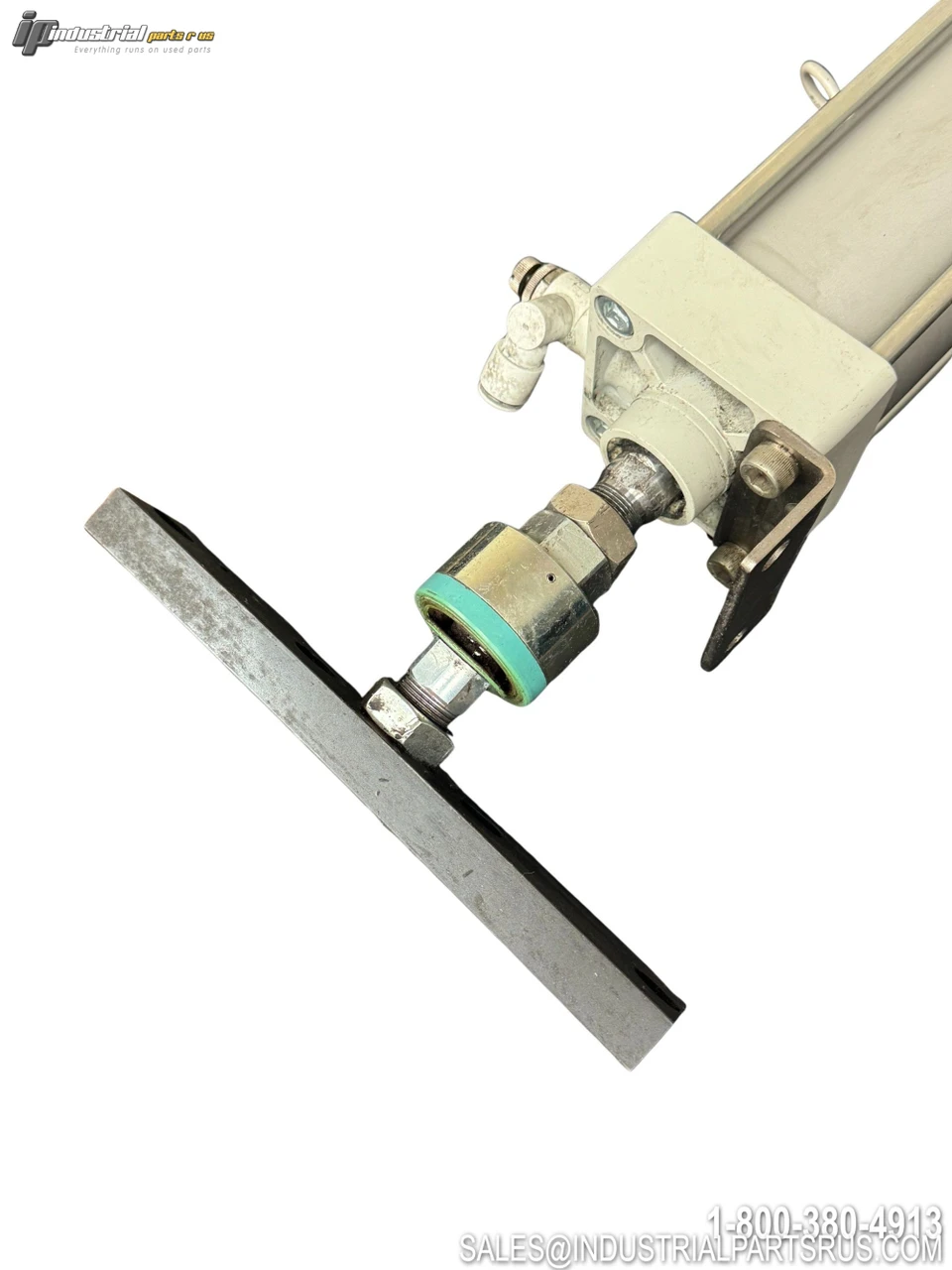

The CKD SCG-80B600 is a medium bore, double-acting single-rod tie rod pneumatic air cylinder from CKD's SCG Series. It features an 80mm bore diameter, a 600mm stroke length, and both-sided air cushioning (code B). This series is designed for general industrial automation use, with the air supply/exhaust ports and cushion needle positioned on the same surface for easy installation and adjustment.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | CKD |
| Model / Part Number | SCG-80B600 |
| Series | SCG |
| Product Type | Tie Rod Pneumatic Cylinder |
| Cylinder Action | Double Acting |
| Rod Configuration | Single Rod |
| Suitable Media | Compressed Air |
| Bore Diameter | 80 mm (ø80) |
| Stroke Length | 600 mm |
| Cushion Type | Both-Sides Air Cushion (B) |
| Working Fluid | Compressed Air |
| Max. Working Pressure | 1.0 MPa (≈145 psi) |
| Min. Working Pressure | 0.05 MPa |
| Proof Pressure | 1.6 MPa |
| Port Size | Rc3/8 |
| Working Piston Speed | 30 to 1000 mm/s |
| Ambient Temperature | -10°C to 60°C (no freezing) |
| Lubrication | Not required (turbine oil Class 1 ISO VG32 if used) |
| Allowable Absorbed Energy (Air Cushion) | 3.3 J |
| Allowable Absorbed Energy (Rubber Cushion) | 25.4 J |
| Mounting Style | Basic (00) — multiple mounting options available |
| Port Thread Type | Rc (BSPT) Thread |
| Bore Size Range (Series) | ø32, ø40, ø50, ø63, ø80, ø100 mm |
| Max Stroke (ø80) | 1400 mm |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Japan
Thread Rc (BSPT)
Pressure 0.05 MPa
Max. Mpa 1.0
Max. PSI 145 psi
Actuation Double Acting
Manufacturer CKD
Part Number SCG-80B600
Series SCG
Shelf B-6
Stroke 600 mm
Bore Diameter 80 mm
Model SCG-80B600
Port Size Rc3/8
MPN SCG-80B600
Type Pneumatic Cylinder
