Product Description

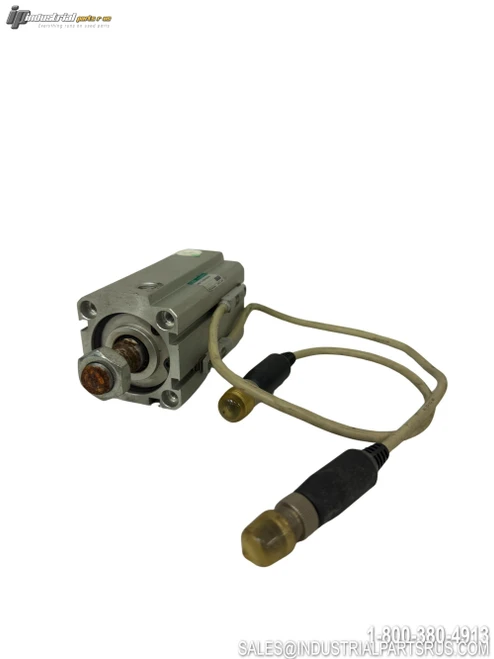

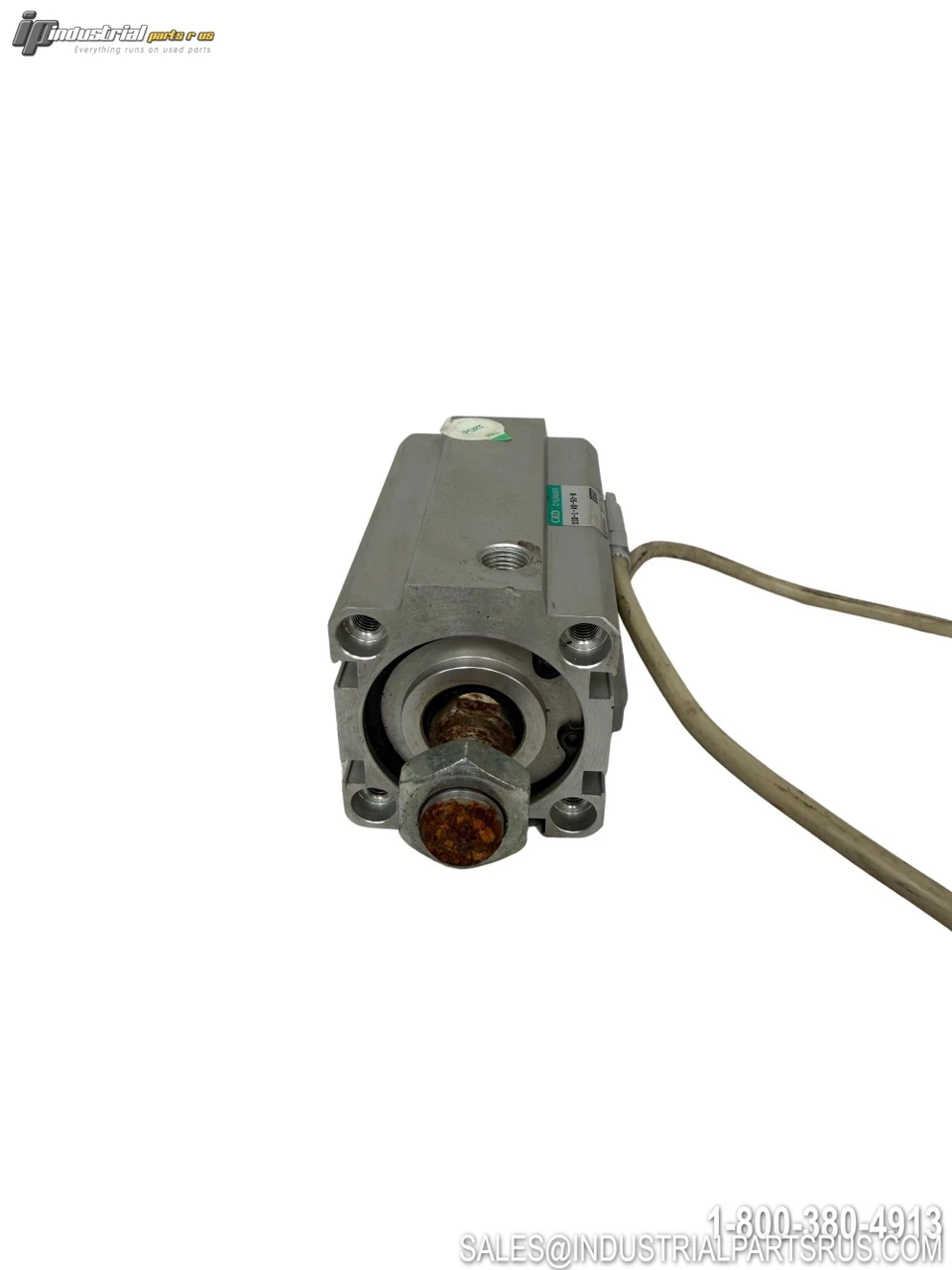

The CKD SSD-L-40-50-N is a space-saving compact pneumatic cylinder from CKD's SSD Series, featuring a square body design with a 40 mm bore diameter and 50 mm stroke length. It is a double-acting, single-rod configuration with a male-threaded rod end option (suffix "-N") and is engineered for reliable performance in general industrial automation applications. The cylinder integrates cylinder switch mounting grooves on four surfaces, allowing flexible sensor placement and easier maintenance access.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | CKD |
| Model / Part Number | SSD-L-40-50-N |
| Series | SSD (Compact Cylinder) |
| Product Type | Compact Cylinder |
| Cylinder Action | Double Acting |
| Rod Configuration | Single Rod |
| Bore Diameter | 40 mm |
| Stroke Length | 50 mm |
| Rod End Type | Male Thread (Option -N) |
| Working Fluid | Compressed Air |
| Max. Working Pressure | 1.0 MPa (≈145 psi / 10 bar) |
| Min. Working Pressure | 0.1 MPa (≈15 psi / 1 bar) |
| Proof Pressure | 1.6 MPa (≈232 psi / 16 bar) |
| Port Size | Rc 1/8 |
| Working Piston Speed | 50 to 500 mm/s |
| Cushion | Selectable (no cushion or rubber cushion) |
| Ambient Temperature | -10°C to +60°C (no freezing) |
| Lubrication | Not Required (turbine oil ISO VG32 if lubricated) |
| Stroke Tolerance (No Cushion) | +1.0 mm |
| Stroke Tolerance (Rubber Cushion) | +2.0 mm |
| Body Style | Square / Space-Saving |
| Switch Mounting | Grooves on Four Surfaces |
| Approximate Weight | ~316 g (50 mm stroke, ø40 bore) |
