Product Description

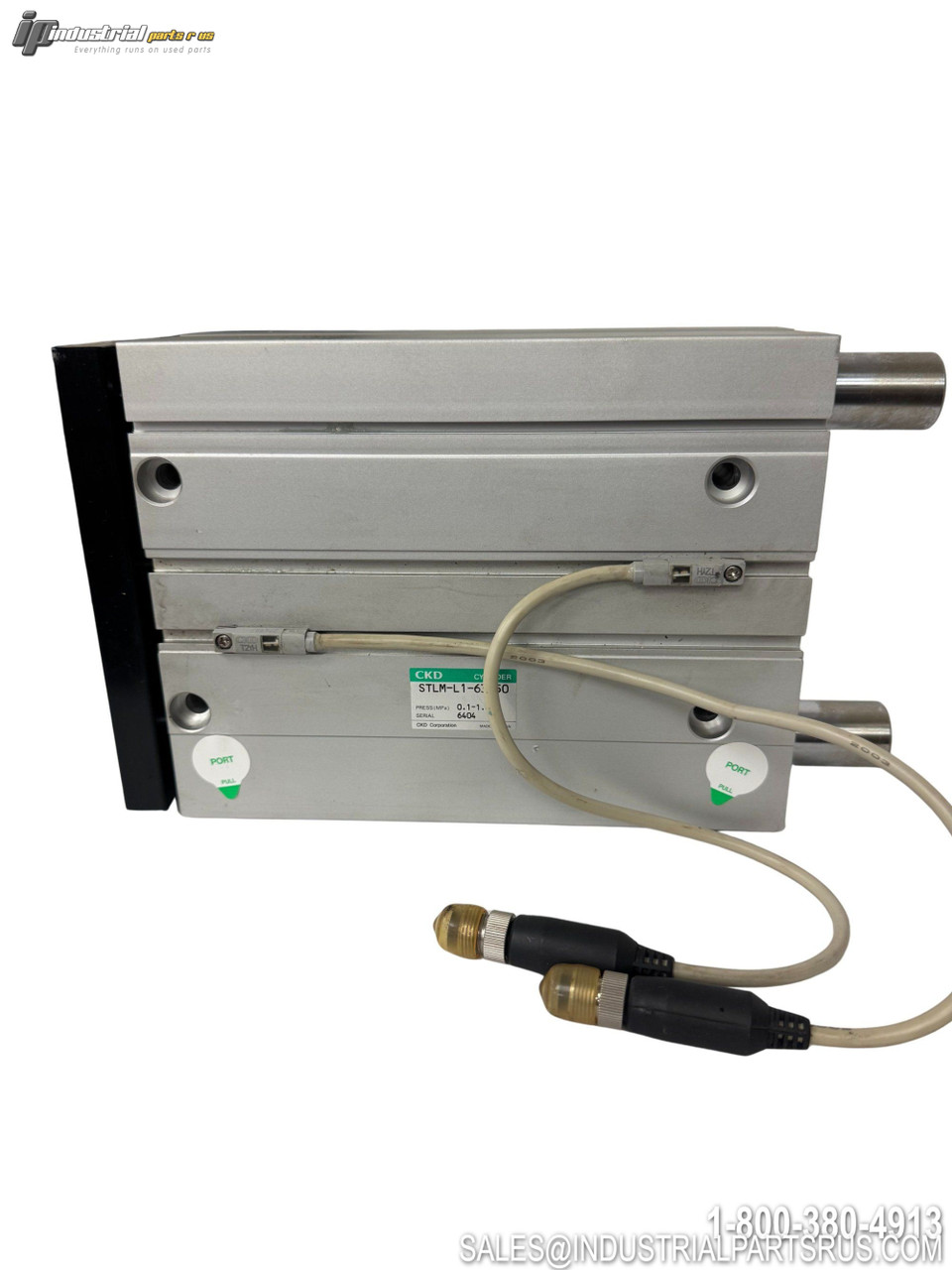

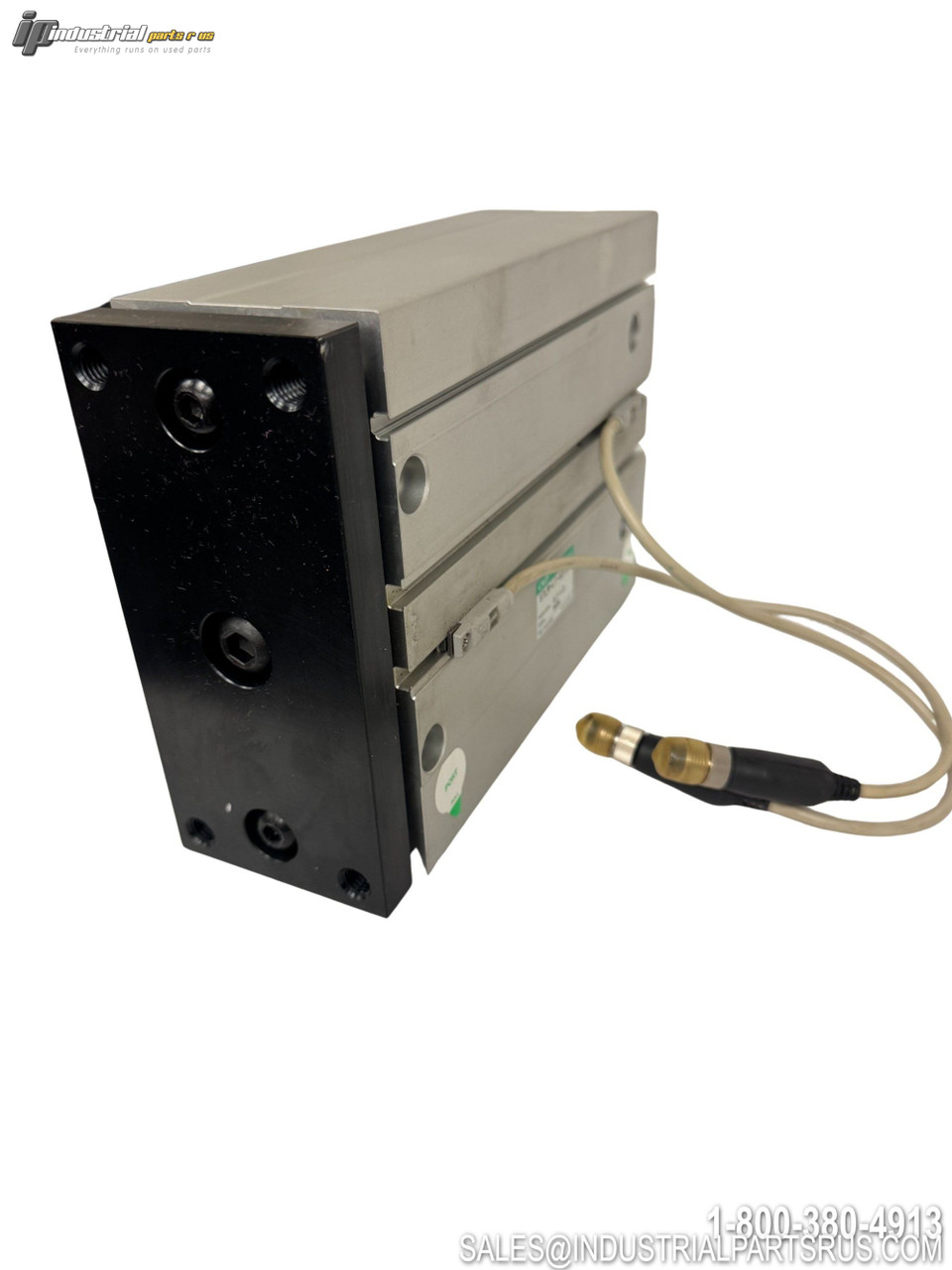

The CKD STLM-L1-63150 is a guided pneumatic cylinder from CKD Corporation's STL series. This square, space-saving cylinder integrates guides on both sides for high accuracy, rigidity, and precise positioning applications. The guided design prevents rotation and lateral movement while providing smooth operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | CKD |
| Model/Part Number | STLM-L1-63150 |
| Product Type | Guided Cylinder |
| Bore Diameter | 63mm |
| Stroke Length | 150mm |
| Action Type | Double-Acting |
| Rod Type | Single Rod |
| Guide Type | L1 (Ball Bearing Guide) |
| Maximum Operating Pressure | 1.0 MPa |
| Working Fluid | Compressed Air |
| Series | STL |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer CKD
Part Number STLM-L1-63150
Shelf K-60
Bore Diameter 63 mm
Model STLM-L1-63150
MPN STLM-L1-63150
Type Guided Cylinder
