Product Description

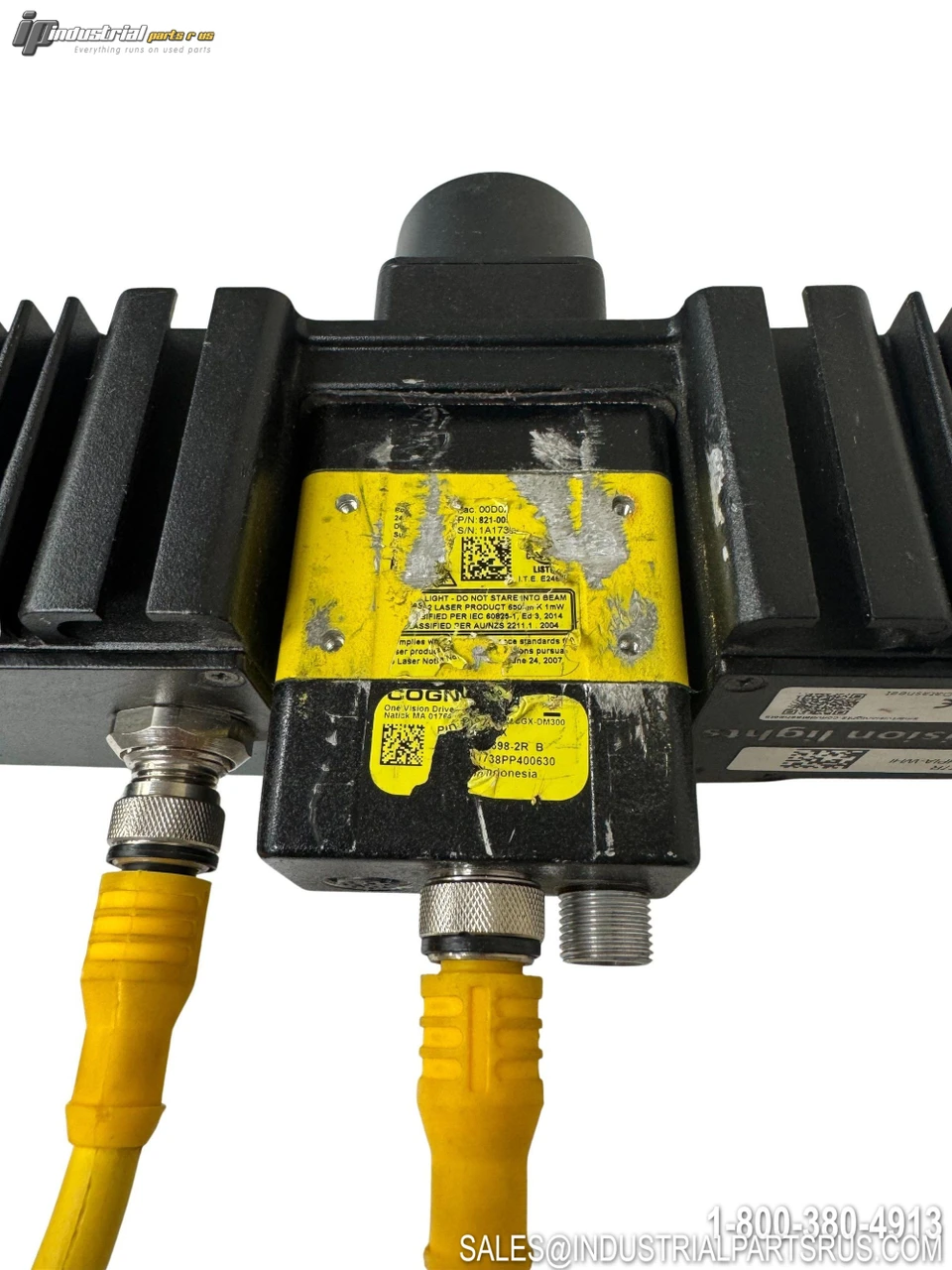

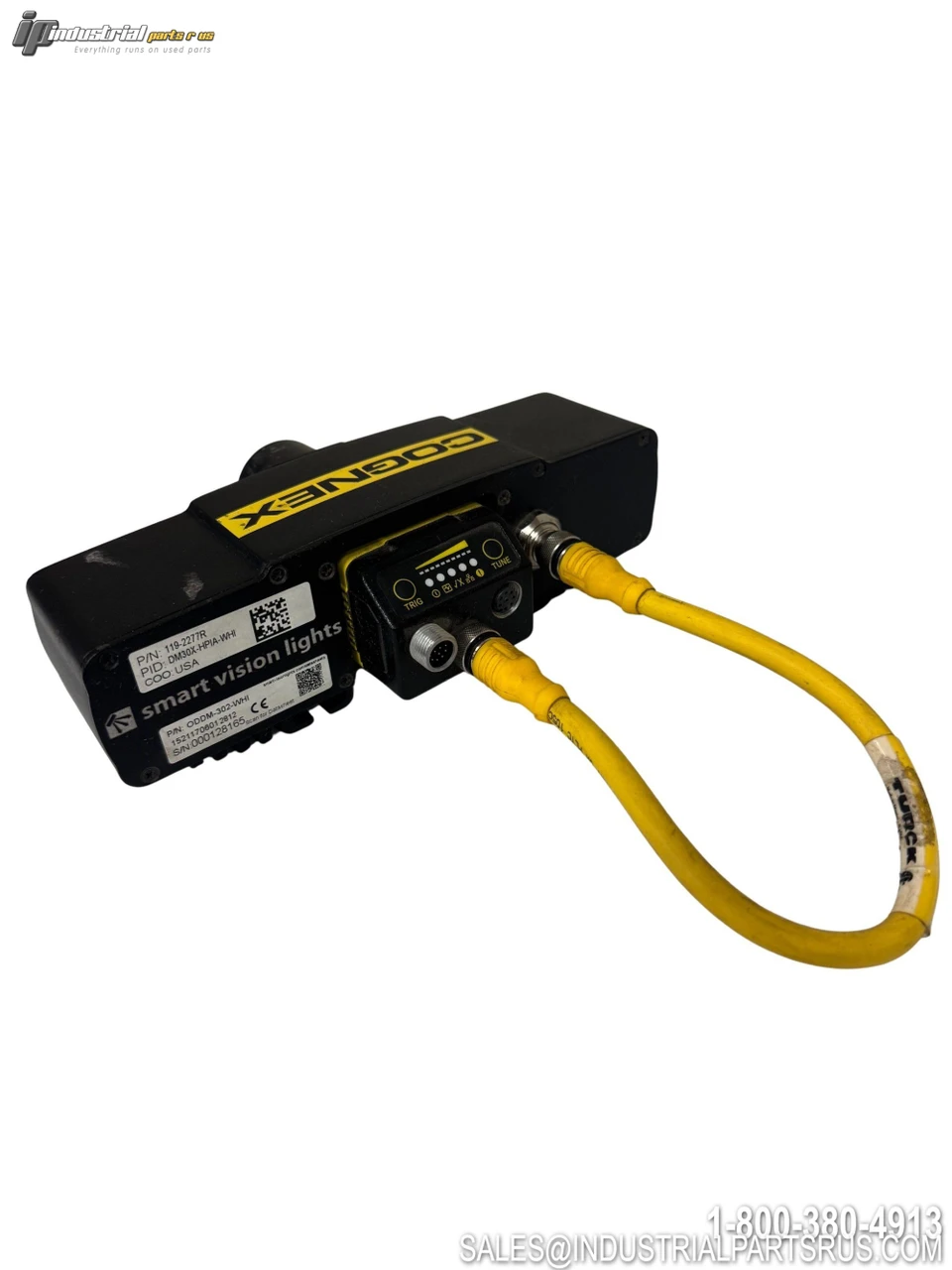

The Cognex 119-2277R is a Smart Vision Lights ODDM-302-WHI White LED Light Module designed specifically for use with Cognex DataMan 300 series fixed-mount barcode reader camera systems. It provides intense, even illumination with 12 high-intensity white LEDs and features SafeStrobe technology for reliable, protected LED operation. The module mounts directly to the DataMan 300 camera body using standard T-slots and connects via a 5-pin M12 connector.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Cognex |
| Model / Part Number | 119-2277R |
| Manufacturer (Light Module) | Smart Vision Lights |
| Smart Vision Lights MPN | ODDM-302-WHI |
| Product Type | LED Light Module (Vision Illumination) |
| Compatible System | Cognex DataMan 300 Series |
| LED Color | White |
| Number of LEDs | 12 |
| Max Current Draw | 500 mA |
| Power Rating | 18 W |
| Connection Type | 5-Pin M12 (Male to Female, Direct Connect) |
| Mounting | Standard T-Slots, Direct Mount to DataMan 300 |
| Strobe Technology | SafeStrobe Technology |
| Cooling | Fanless |
| IP Rating | IP65 |
| Operating Temperature | -18°C to +40°C (0°F to 104°F) |
| Compliance | CE, RoHS, IEC 62471 |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Sensor Type LED Light Module
Manufacturer Cognex
Enclosure Type IP65
Part Number 119-2277R
Shelf A-6
Model 119-2277R
MPN 119-2277R
Type Vision Sensor
