Product Description

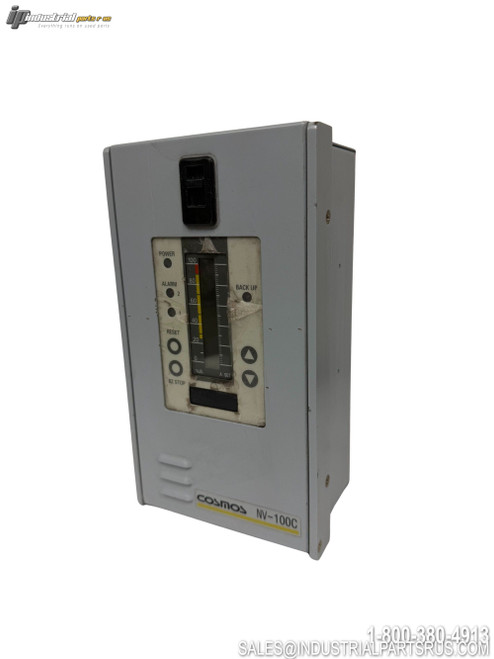

The New Cosmos Electric NV-100C is a single-point combustible gas detection and alarm system designed for continuous monitoring of combustible gas leakage in industrial environments. It uses catalytic combustion on a platinum filament as its detection principle and displays gas concentration on an LCD bar graph meter with backlight. The unit is housed in an earthquake-resistant, slim plastic molded case and can be wall-hung or panel-embedded, making it suitable for petrochemical, semiconductor, and steel industry applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | New Cosmos Electric (Cosmos) |
| Model / Part Number | NV-100C |
| Product Type | 1-Point Type Combustible Gas Detection / Alarm System |
| Principle of Detection | Catalytic Combustion on a Platinum Filament |
| Gases to be Detected | Combustible gases |
| Indicating Range | 0–100% LEL |
| Gas Concentration Indicator | LCD bar graph meter with backlight |
| Power Source (Input Voltage) | AC100/240V or DC24V |
| Power Consumption | Approx. 5.0W (excluding power consumption of extractive gas detector) |
| Alarm Output Contact | 1c no-voltage relay contact (100V AC / 1A resistive load); 1a for trouble contact |
| Alarm Stages | 1st and 2nd stage alarm, adjustable within detection range |
| Alarm Type | Latching (standard); non-latching available as option |
| Power Lamp Indication | Green (normal); Blinks green on startup (30s warm-up); Orange on sensor failure; Off on trouble |
| Alarm Lamp Indication | Red flashing on alarm; Lights up by reset |
| Dimensions (W x H x D) | 113 x 204 x 71.5 mm |
| Weight | Approx. 1.5 kg |
| Housing / Body Material | Plastic molded case |
| Mounting Type | Wall-hung or panel-embedded |
| Compatible Gas Detectors | Diffusion type: KD-5□-N (3C cable); Suction type: PE-2DC (6C cable) |
| Backup Power Option | Optional battery backup for continuous monitoring 60+ minutes after power failure |
| Explosion-Proof | No — install in non-hazardous area only |
| Calibration | Auto zero and span adjustment (one-touch maintenance mode) |
| Zero Suppression Function | Yes — cancels slight reading fluctuations due to environmental change |
| Peak Hold | Yes — peak value blinks after alarm even when reading decreases |
| Optional Features | Peak hold function, alarm delay, low flow rate alarm, switch cover |
| Instruction Manual No. | GAE-009-01 (December 2004) |
| Applications | Petrochemical, semiconductor industry, steel industry |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Sensor Type Catalytic Combustion (Platinum Filament)
Manufacturer Cosmos
Part Number NV-100C
Shelf J-66
Model NV-100C
MPN NV-100C
Type Gas Sensor
