Product Description

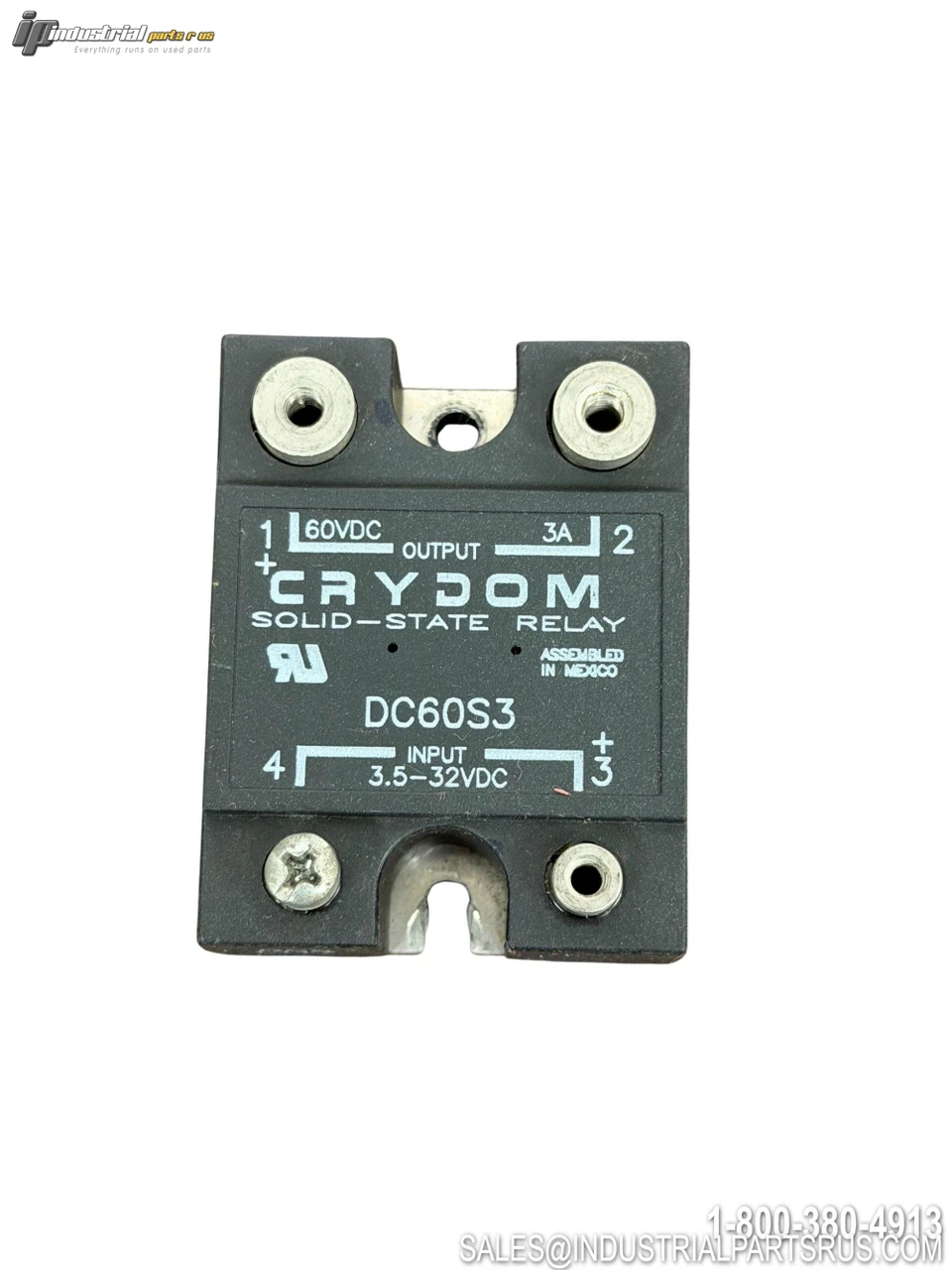

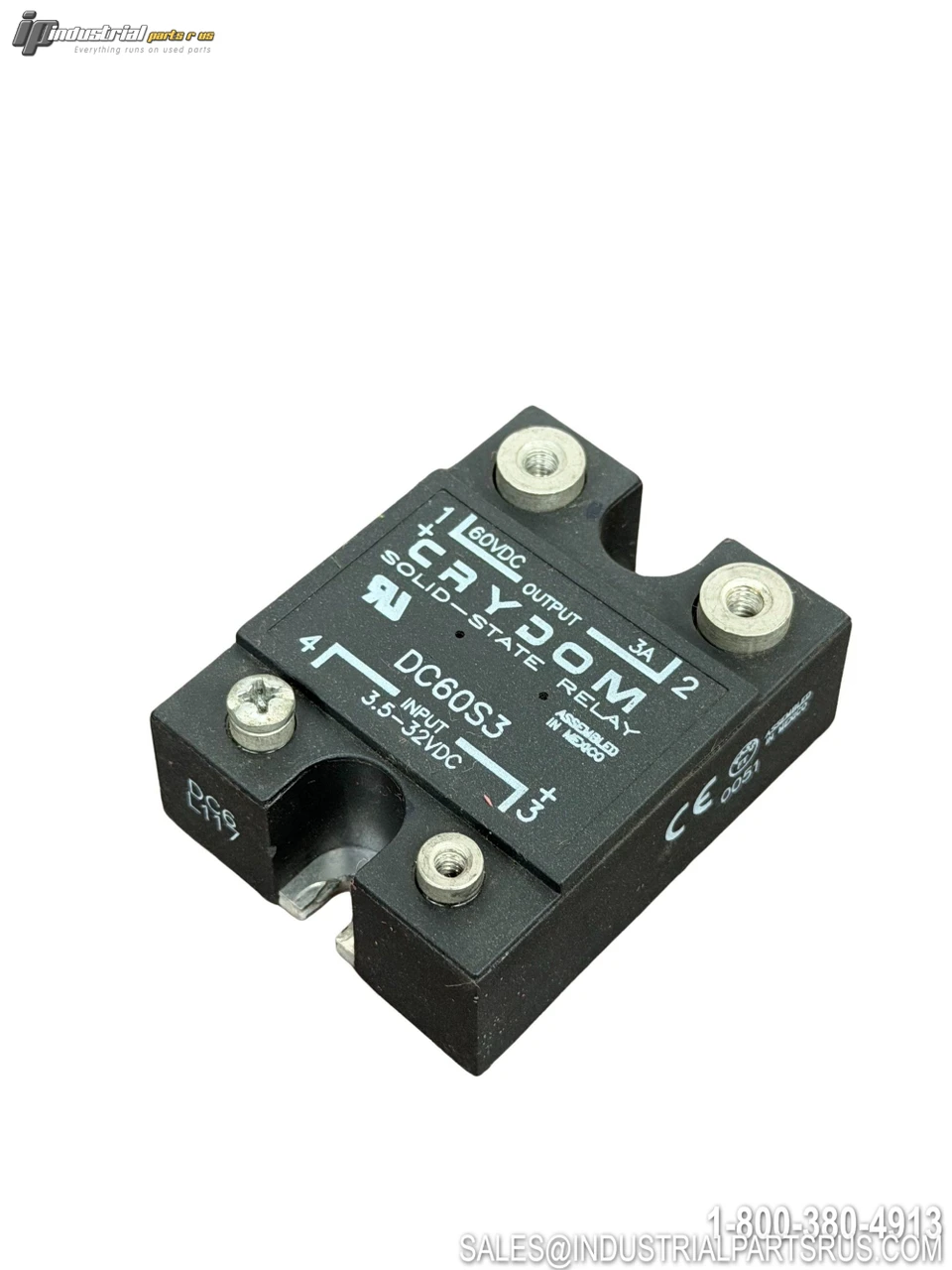

The Crydom DC60S3 is an industrial solid state relay designed for DC load switching applications. The unit features a 3.5-32VDC control input and is rated for loads up to 3A at 60VDC. It uses clearly marked input and output terminals and is designed for panel or heat-sink mounting in industrial control applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Crydom |
| Model / Part Number | DC60S3 |
| Product Type | Solid State Relay (SSR) |
| Input Voltage | 3.5-32VDC |
| Output Voltage | 60VDC |
| Output Current | 3A |
| Input Terminals | 3 (+) / 4 (-) |
| Output Terminals | 1 (+) / 2 (-) |
| Mounting Type | Panel / Chassis Mount |
| Country of Assembly | Mexico |
| Certification Markings | UL Recognized, CE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 20 mA
Manufacturer Crydom
Enclosure Type IP00
Part Number DC60S3
Shelf C-11 Tub 1
Model DC60S3
MPN DC60S3
Type Solid State Relay
