Product Description

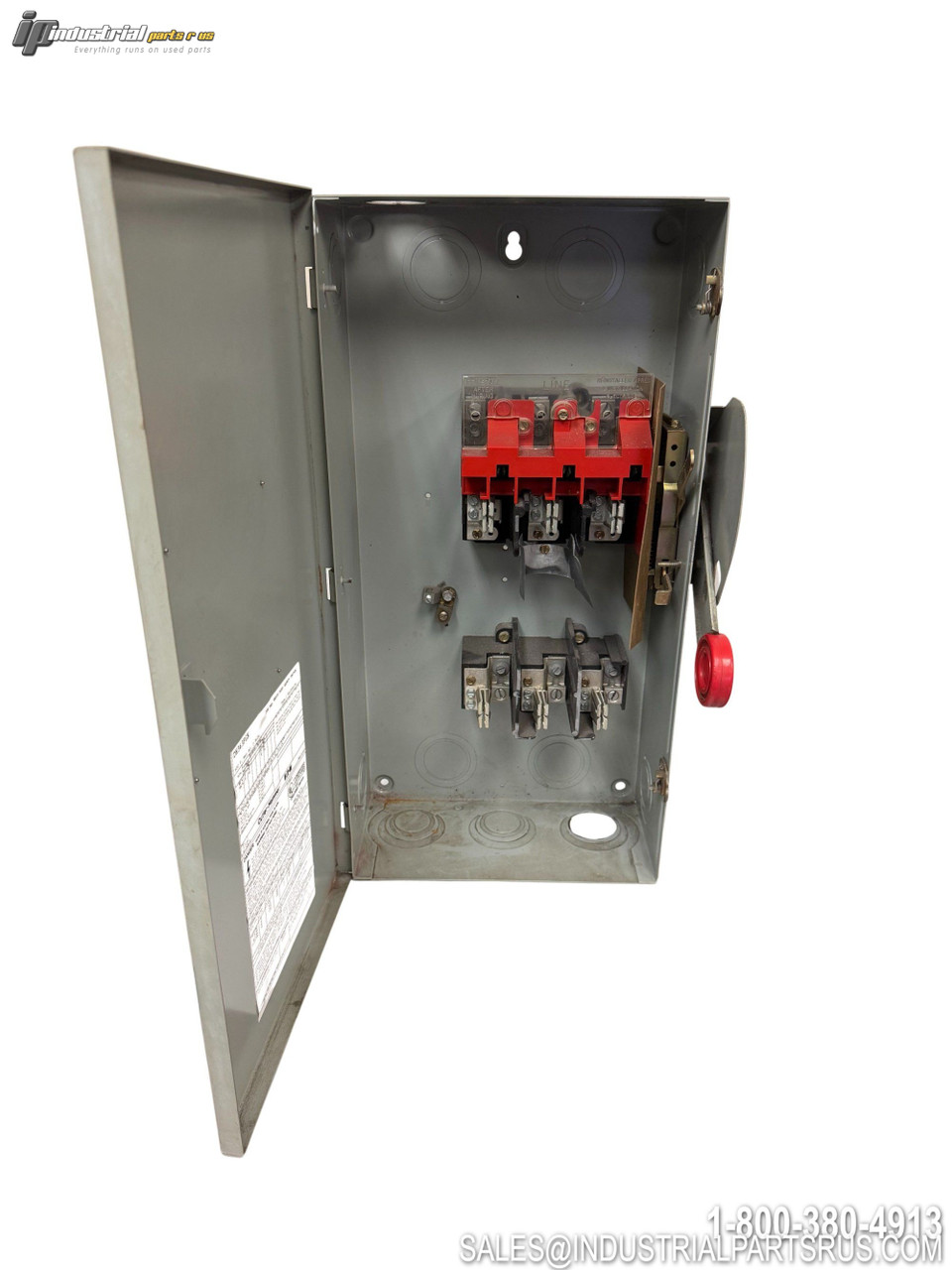

The Cutler-Hammer DH363FGK is a Series DH heavy duty fusible safety disconnect switch designed for demanding commercial and industrial applications where reliable performance and service continuity are critical. This 3-pole, 100 amp switch provides manual circuit control and overcurrent protection via installed Class H fuses, featuring visible ON/OFF indication and mechanical interlocking for enhanced safety.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Cutler-Hammer |
| Model/Part Number | DH363FGK |
| Manufacturer | Eaton Corporation |
| Series | DH |
| Current Rating | 100 A |
| Voltage AC | 480-600 VAC |
| Voltage DC | 250 VDC |
| Number of Poles | 3 |
| Contact Configuration | 3PST |
| Switch Type | Fusible Heavy Duty Single Throw |
| Fuse Type | Class H Cartridge Time Delay |
| NEMA Rating | NEMA 1 |
| Enclosure Material | Painted Steel |
| Mounting Type | Surface/Panel Mount |
| Dimensions (W x H x D) | 11.13" x 21.69" x 10" |
| Weight | 21-27 lbs |
| Number of Wires | 3-Wire |
| Short Circuit Rating | 100 kA RMS at 600V |
| Horsepower 1-Phase 480V | 30 HP |
| Horsepower 1-Phase 600V | 40 HP |
| Horsepower 3-Phase 480V | 60 HP |
| Horsepower 3-Phase 600V | 75 HP |
| Wire Range | #14-#1/0 Cu/Al |
| UPC | 782113206417 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Cutler-Hammer
Enclosure Type NEMA 1
Part Number DH363FGK
Shelf K-58
Model DH363FGK
MPN DH363FGK
Type Disconnect
