Product Description

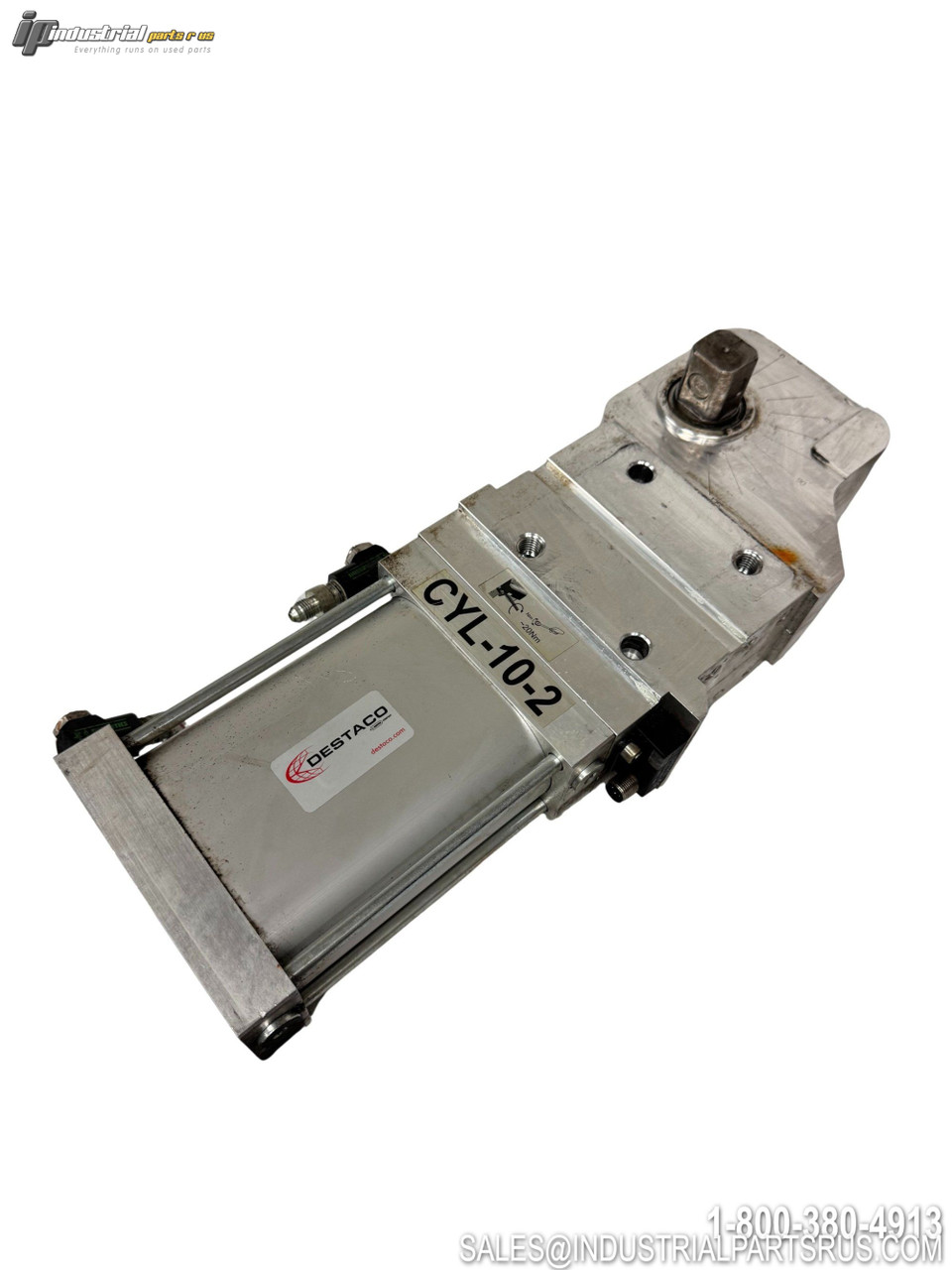

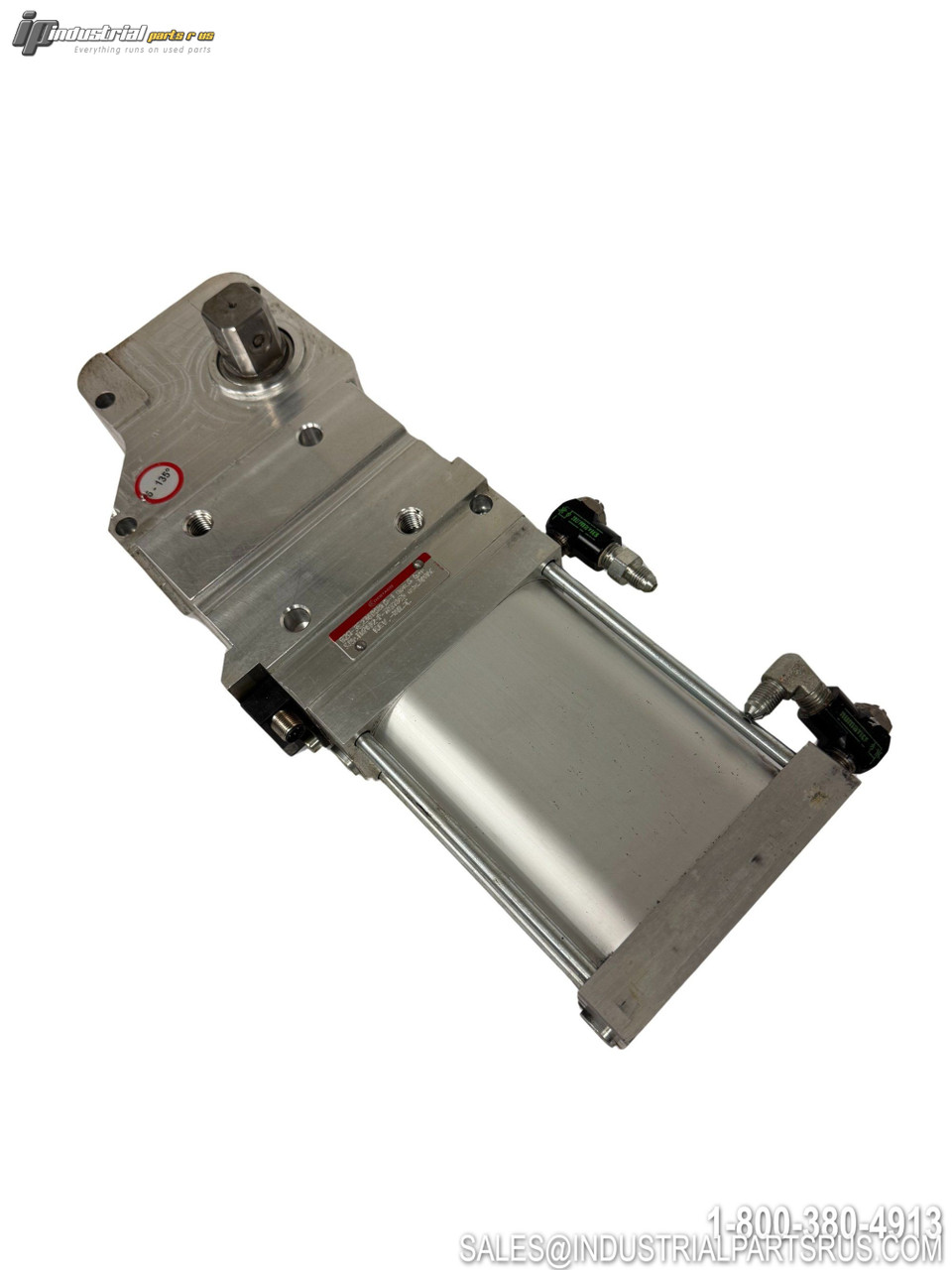

The Destaco 82M-3E23008NL8-1 is an enclosed pneumatic power clamp from the 82M-3E series designed for industrial clamping applications. This series provides automotive and sheet metal processing customers with superior holding power in a versatile, user-friendly and low-maintenance package, well suited for manual and automated fixture welding, positioning and locating. The 82M-3E Series offers multiple mounting and shaft options for Euro/NAAMS standards, with field adjustable opening angles, multiple cylinder sizes and first-in-class manual locking.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Destaco |
| Model/Part Number | 82M-3E23008NL8-1 |
| Product Type | Enclosed Pneumatic Power Clamp |
| Series | 82M-3E |
| Cylinder Bore | 80mm (3.15") |
| Opening Angle | 5-135° |
| Clamp Arm Style | Lateral Arm |
| Port Size | 1" |
| Weight | 19.14 lbs (8.7 kg) |
| Holding Torque (Max) | 220.0 ft-lb (3000.0 Nm) |
| Clamping Arm Torque at 5 Bar | 627.0 ft-lb (850.0 Nm) |
| Air Consumption per Double Stroke at 72 psi | 0.18 ft³ |
| Application | Clamping |
| Manual Unlocking | Yes (in case of air pressure loss) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Destaco
Part Number 82M-3E23008NL8-1
Shelf K-69
Bore Diameter 80 mm
Model 82M-3E23008NL8-1
MPN 82M-3E23008NL8-1
Type Pneumatic Cylinder
