Product Description

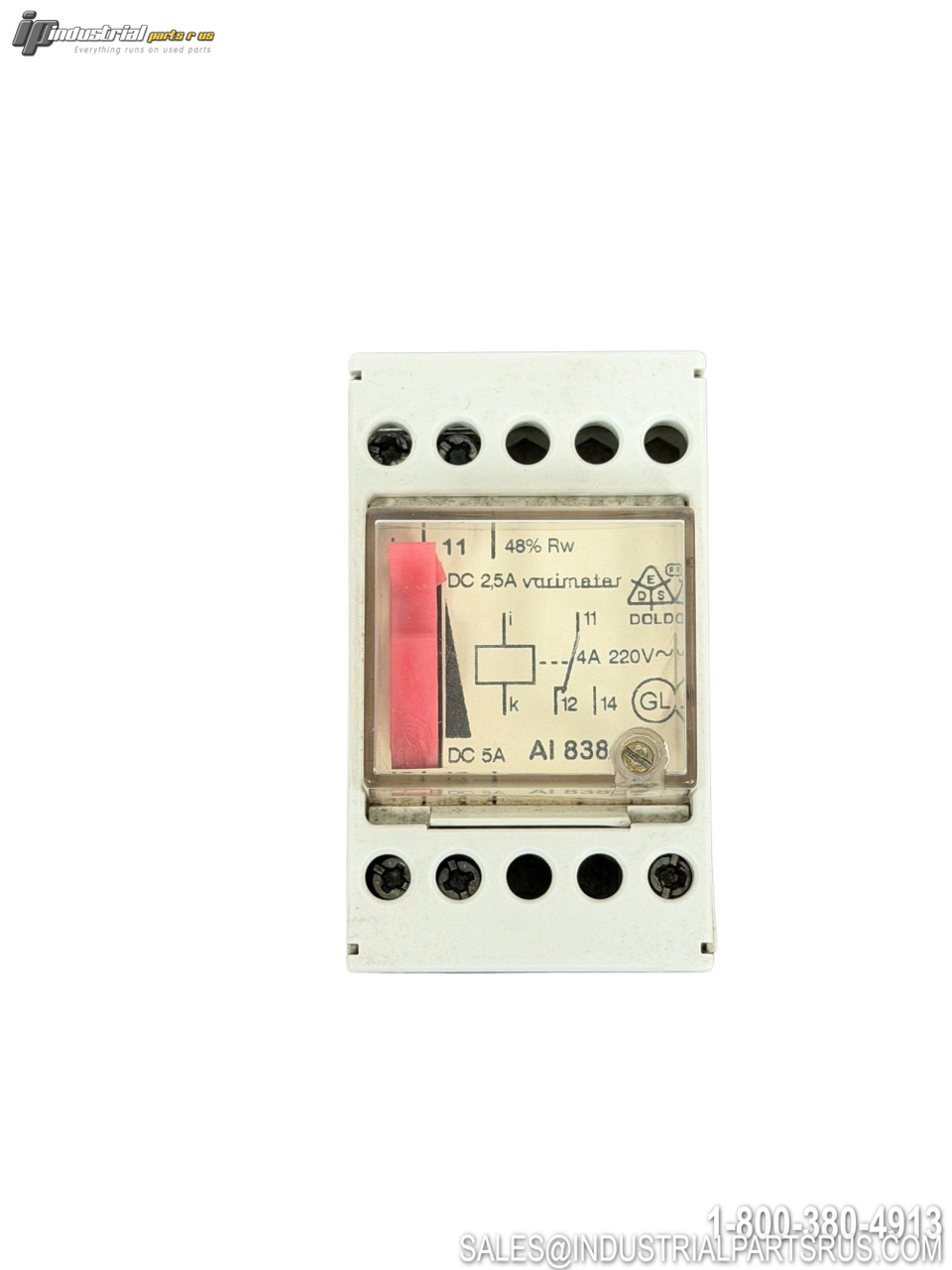

The E. Dold & Söhne KG AI 838 is a single-phase VARIMETER overcurrent relay designed for current monitoring applications in industrial control systems. On the AI 838, the scale is adjusted to the response value; when the monitored current exceeds the set threshold, the relay energizes, and the output contact resets automatically once the current falls below the setting value multiplied by the hysteresis factor. The unit operates without an auxiliary supply voltage, drawing its power directly from the measured circuit, and is compliant with IEC/EN 60 255-1.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | DOLD / E. Dold & Söhne KG |
| Model | AI 838 |
| Part / Identification Number | 0005965 |
| Product Type | Current Monitoring Relay |
| Monitored Current Range | 2.5–5A DC |
| Setting | Adjustable |
| Setting Marking | RW 48% |
| Output Contact Rating | 4A at 250VAC |
| Contact Configuration | Changeover Relay Contact |
| Contact Terminals | 11, 12, 14 |
| Terminal Type | Screw Terminal |
| Mounting | DIN Rail |
| Manufacturer | E. Dold & Söhne KG |
| Manufacturer Location | Furtwangen, Germany |
| Markings | CE, GL |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 4 A
Manufacturer E. Dold & Sohne Kg
Part Number AI 838
Shelf C-11 Tub 1
Model AI 838
Coil Voltage 220V AC
MPN AI 838
Type Relay
