Product Description

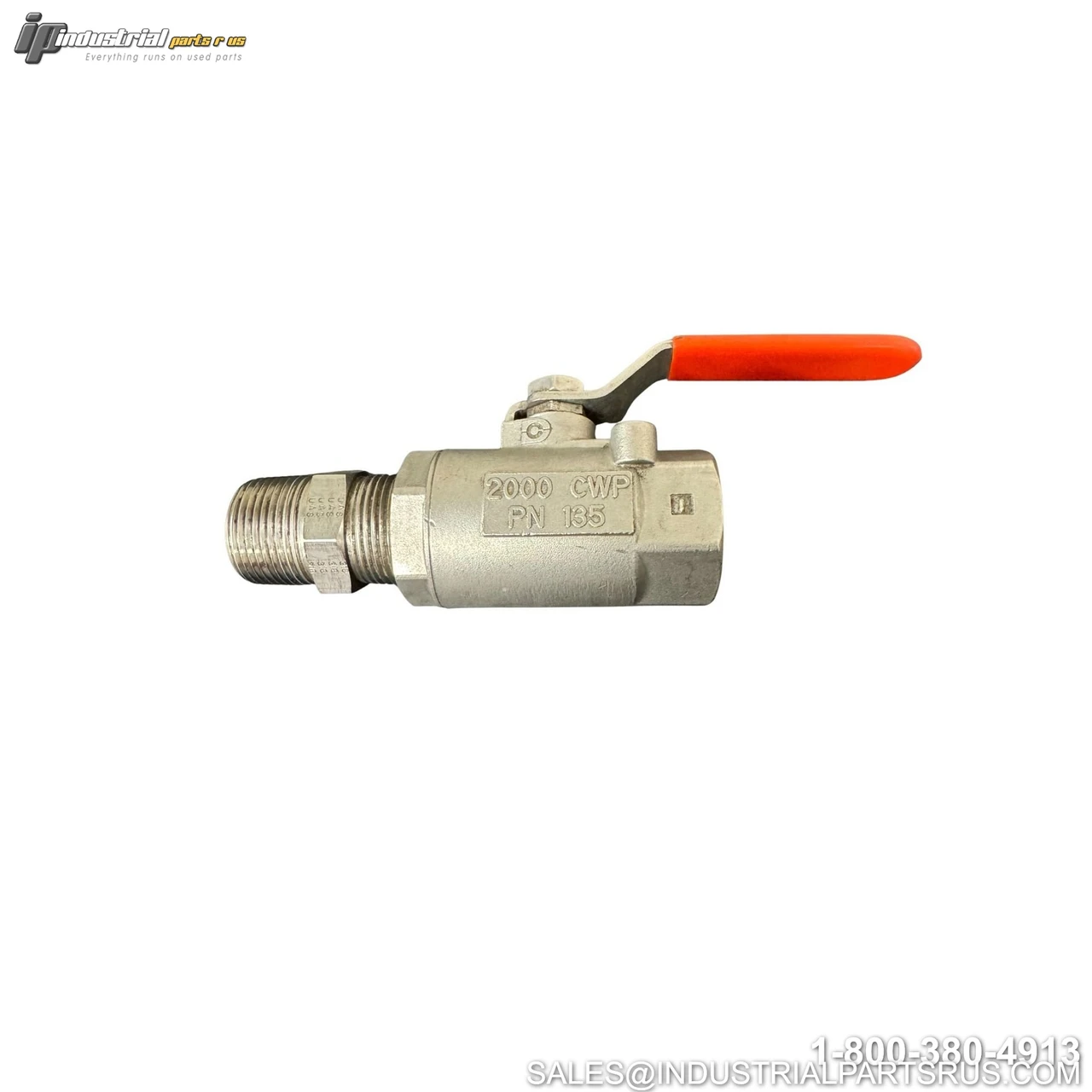

The DynaQuip 2000CWP is a CF8M (316 Stainless Steel) 2-piece manual ball valve rated at 2000 PSI Cold Working Pressure (CWP). Designed for a broad range of industrial fluid control applications, these valves feature FNPT threaded end connections, reinforced PTFE (RTFE) seats, a blowout-proof stem, and a stainless steel ball for reliable, leak-free shut-off service. The 2000 CWP rating and CF8M material designation appear on the valve body along with internal part number PN 135, and the valve is suitable for use with water, oil, air, chemicals, and similar compatible media.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | DynaQuip Controls |
| Model / Part Number | 2000CWP |
| Internal PN (Body Marking) | PN 135 |
| Valve Type | Ball Valve |
| Number of Ways | 2-Way |
| Body Style | 2-Piece |
| Body Material | CF8M (316 Stainless Steel, ASTM A351) |
| Ball Material | 316 Stainless Steel (CF8M) |
| Stem Material | 316 Stainless Steel |
| Seat Material | RTFE (Reinforced PTFE) |
| Stem Seal / Body Seal | PTFE / Viton |
| Connection Type | FNPT (Female NPT) |
| Port | Full Port |
| Max. Pressure (CWP) | 2000 PSI |
| Max. Steam Pressure (WSP) | 150 PSI |
| Temperature Range | -20°F to +425°F (media dependent) |
| Operation Type | Manual / Lever Handle |
| Valve Ways & Position | 2-Way, 2-Position (Open/Close) |
| Stem Design | Blowout-Proof |
| Ball Pattern | Bi-Directional, Conventional |
| Available Sizes | 1/4", 3/8", 1/2", 3/4", 1" (DN8–DN25) |
| Compatible Media | Water, Oil, Air, Light Chemicals |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Connection Type FNPT (Female NPT)
Material 316 Stainless Steel (CF8M)
Pressure 150 PSI WSP
Max. PSI 2000
Pipe Size Multiple (1/4" to 1")
Ratio Manual Lever Handle
Manufacturer Dynaquip
Part Number 2000CWP
Series PN 135
Shelf A-10
Model 2000CWP
MPN 2000CWP
Type Ball Valve
