Product Description

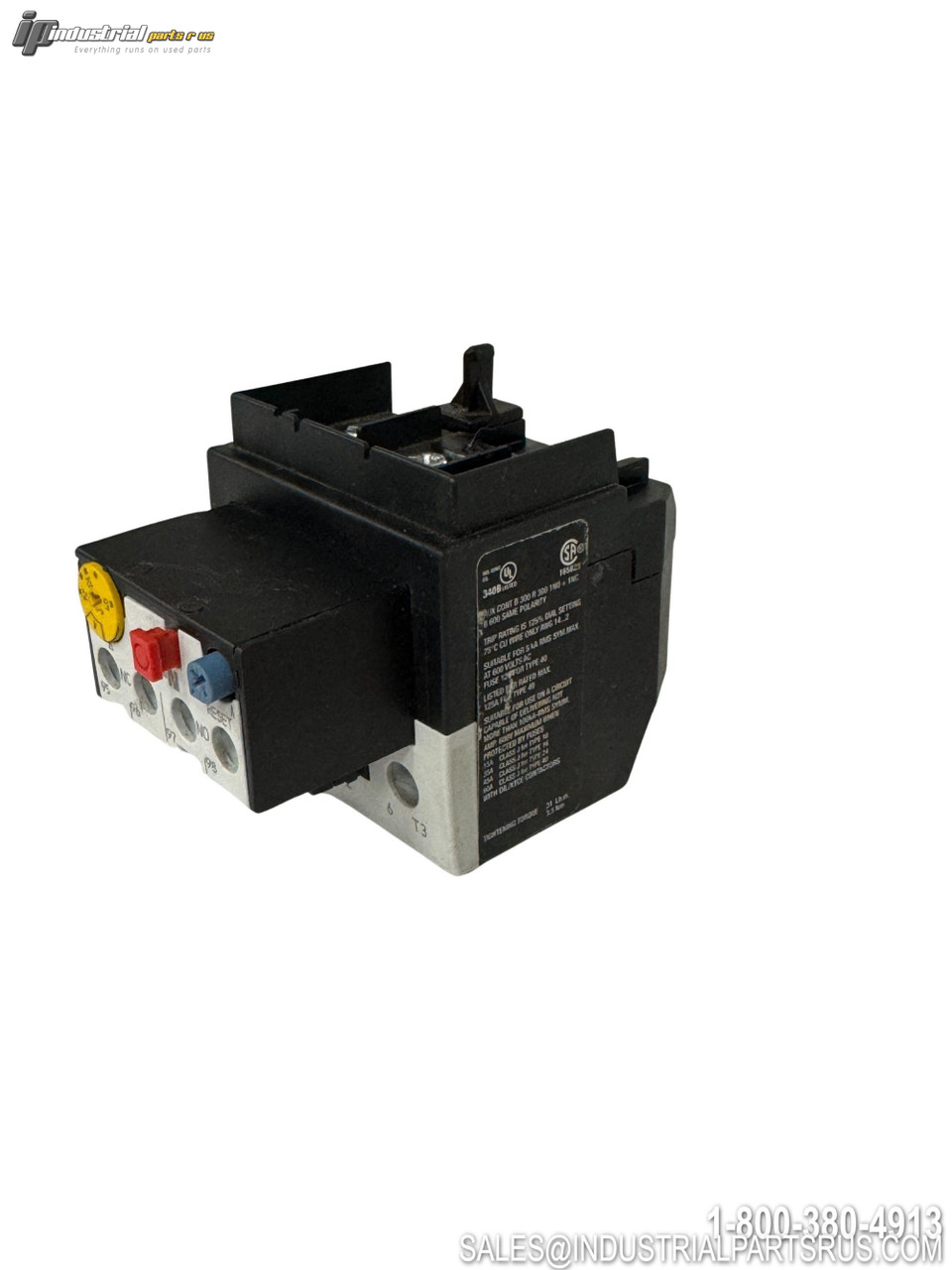

The Eaton ZB65-40 XT0B040DC1 is an IEC-rated thermal overload relay designed for the protection of three-phase motors. This bimetallic overload relay provides reliable protection against overload, phase asymmetry, and phase failure conditions. It features adjustable current range settings and direct mounting to compatible contactors for efficient motor protection solutions.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Eaton |
| Model/Part Number | ZB65-40 XT0B040DC1 |
| Type | Thermal Overload Relay |
| Current Range | 24-40A |
| Frame Size | 55mm (Frame D) |
| Trip Class | Class 10A |
| Contact Configuration | 1NO + 1NC |
| Mounting Type | Direct to Contactor |
| Compatible Contactor Range | 40-72A |
| Voltage Rating | 600VAC |
| Power Consumption | 7.5W |
| Ambient Temperature Range | -25°C to 55°C (-13°F to 131°F) |
| Reset Type | Manual/Automatic Selectable |
| Product Dimensions | 3"L x 2"H x 4"W |
| Weight | 0.4 lb |
| Standards Compliance | IEC 60947, UL Listed, CSA Certified |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Eaton
Part Number ZB65-40 XT0B040DC1
Shelf K-4
Model ZB65-40 XT0B040DC1
MPN ZB65-40 XT0B040DC1
Type Overload Relay
