Product Description

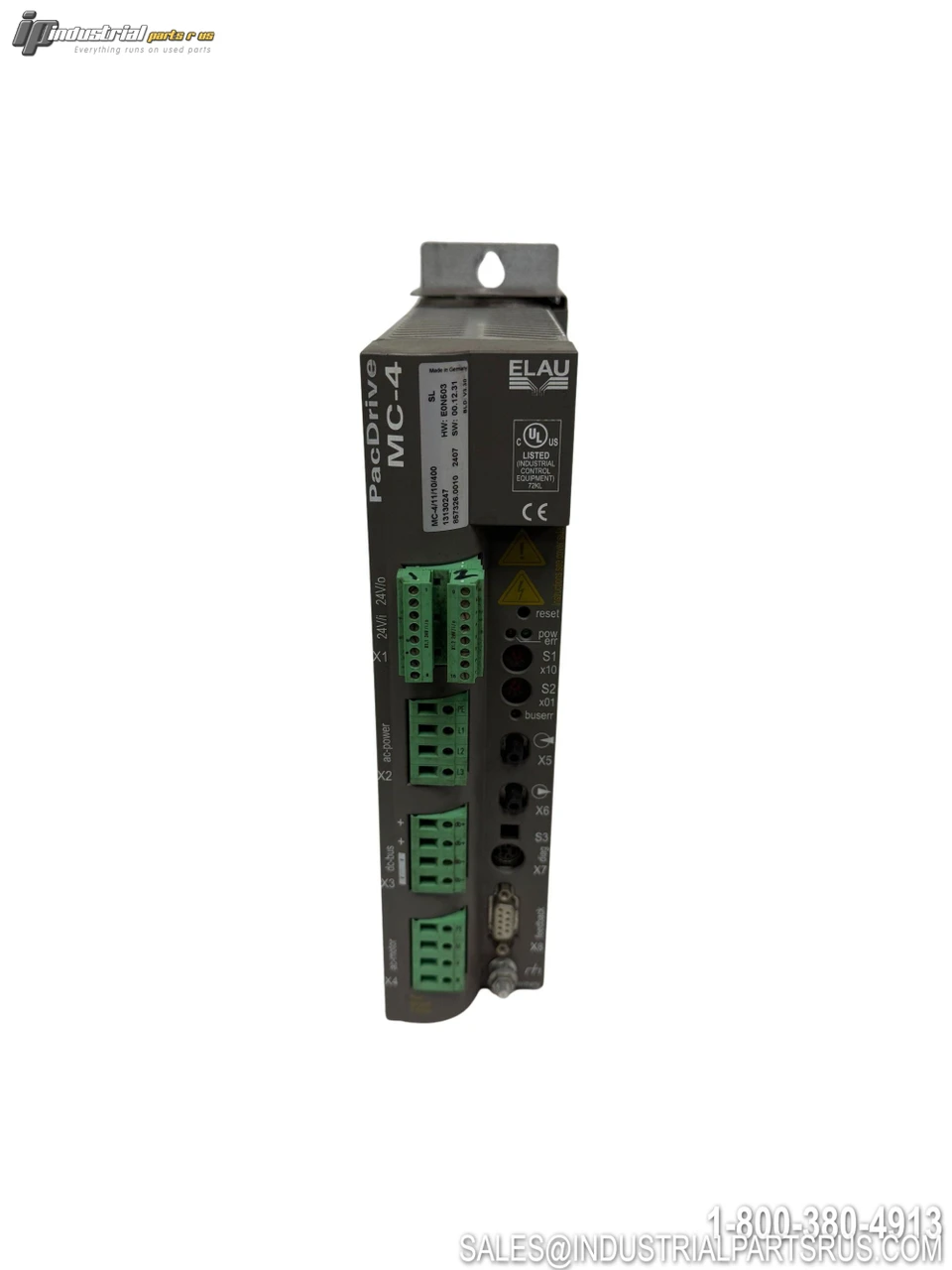

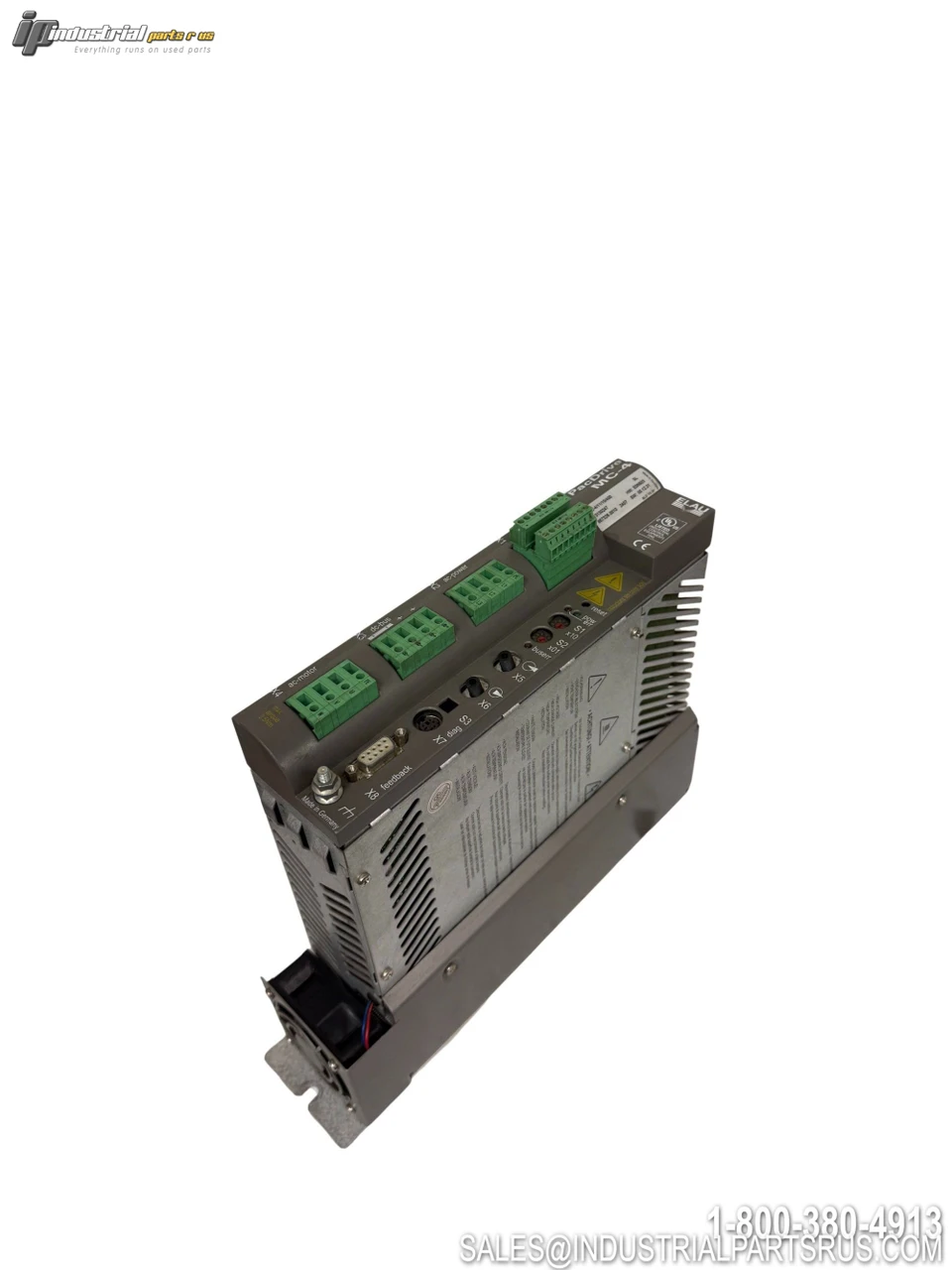

The Elau MC-4/11/10/400 is a PacDrive series digital servo drive manufactured by ELAU GmbH (Schneider Electric Motion Division), designed for high-speed closed-loop torque, speed, and position control in precision industrial automation equipment. It accepts a 3-phase 380–480V AC main power input and delivers a 10A rated output current, with a 24V DC control voltage supply. This drive is widely deployed in packaging machinery, food processing, printing, and automated assembly production lines.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Elau |
| Model / Part Number | MC-4/11/10/400 |
| Product Family / Series | PacDrive MC-4 |
| Order Number | 13130247 |
| Product Type | Servo Drive |
| Input 1 – Voltage (Main Power) | 3-Phase / 380–480 V AC ±10% |
| Input 1 – Current | 10.2 A |
| Input 1 – Frequency | 48–62 Hz |
| Input 2 – Control Voltage | 24 V DC |
| Input 2 – Control Current | 1 A |
| Output Voltage | 3-Phase / 0–480 V AC |
| Output Current (Rated) | 10 A RMS |
| Output Current (Peak, 1s) | 25 A RMS |
| Output Frequency | 0–600 Hz |
| Rated Power | 6.9 kVA |
| Peak Power | 10 kW |
| Compatible Motor Power Range | 400 W – 11 kW (synchronous servo motors) |
| Switching Frequency | 8 kHz |
| Phase | 3-Phase |
| Enclosure / Protection Rating | IP20 (cabinet installation); IP54 with safety wiring / Inverter Enable |
| Ambient Operating Temperature | +5°C to +45°C (up to +55°C with reduced power) |
| Communication Interface | SERCOS (fiber optic) |
| Feedback / Encoder Support | SinCos encoder, EnDat, HIPERFACE DSL, Resolver |
| Control Modes | Closed-loop Position, Velocity, Torque |
| Safety Function | STO – Safe Torque Off |
| Dimensions (H × L × W) | 260 mm × 310 mm × 69 mm |
| Weight | 3.4 kg (approx. 8.99 lbs) |
| EMC Standard | EN 55011 / EN 61800-3 (with external mains filter) |
| Manufacturer | ELAU GmbH (Schneider Electric) |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 1A
Manufacturer ELAU
Part Number MC-4/11/10/400
Shelf E-19
Model MC-4/11/10/400
MPN MC-4/11/10/400
Type Servo Drive
