Product Description

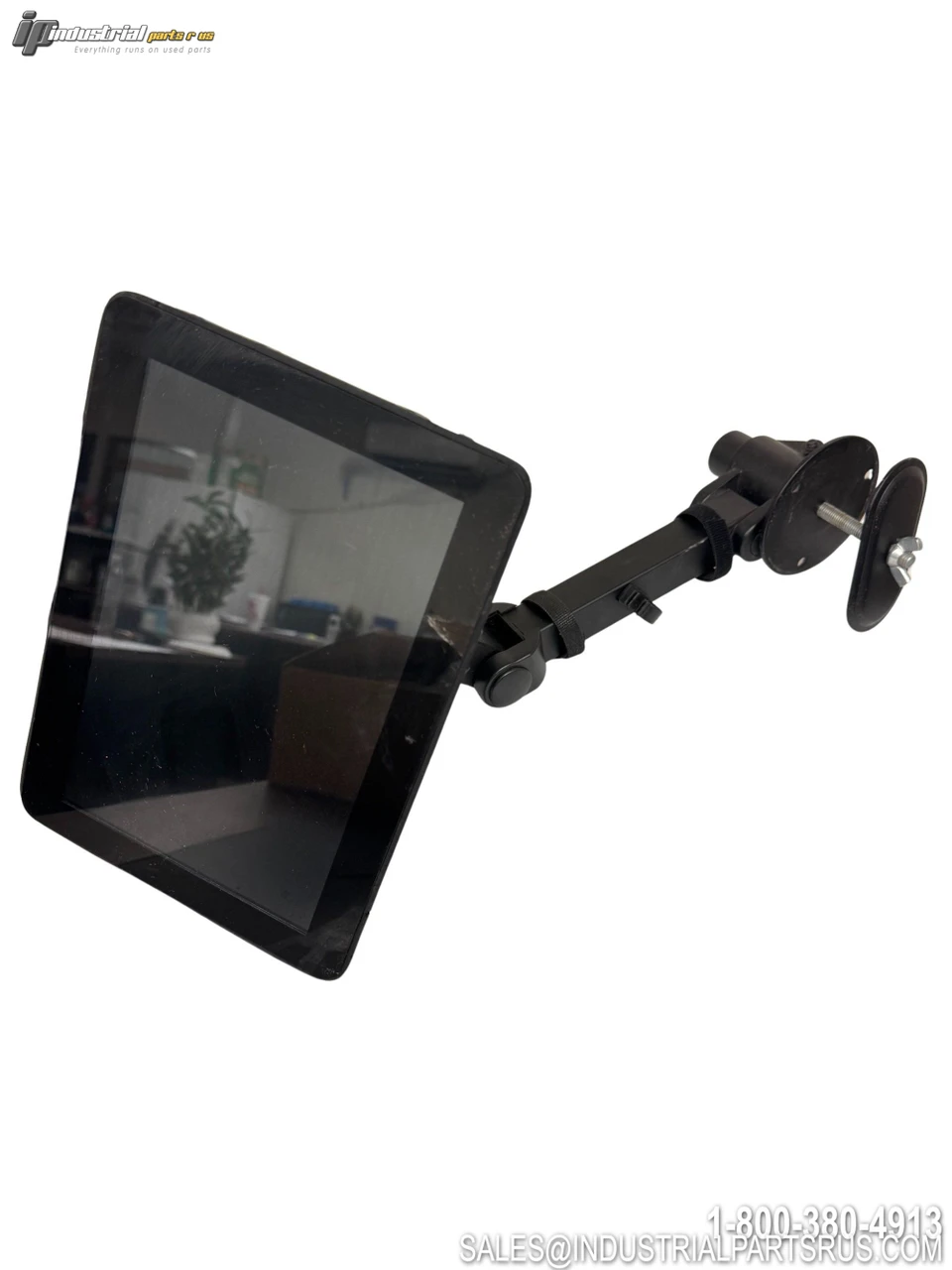

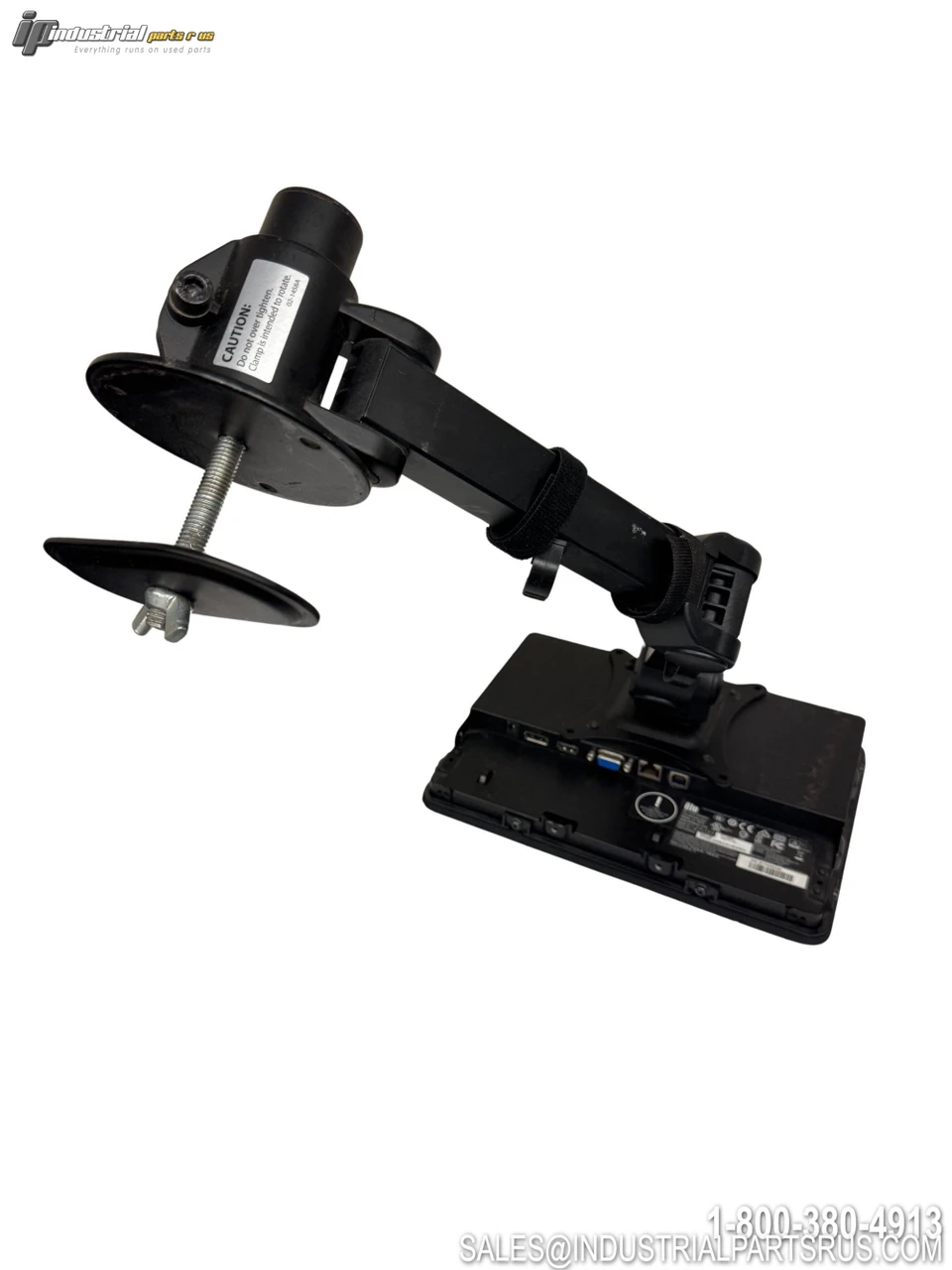

The Elo ET1093L (P/N E231195) is a 10.1-inch open-frame LCD touchscreen from Elo's 90-Series product line, designed for OEM integration into kiosks, retail self-service, casino/amusement, and industrial automation environments. It features a slim, zero-bezel design powered by an energy-saving LED backlight and Elo's TouchPro™ Projected Capacitive (PCAP) multi-touch technology supporting up to 10 simultaneous touch points. The display offers stable, drift-free operation with 1280x800 WXGA resolution, 800:1 contrast ratio, 350 cd/m² brightness, IP65-rated front bezel (when sealed), and universal 100–240V AC input for worldwide deployment.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Elo |
| Model / Part Number | E231195 ET1093L |
| Product Series | 90-Series Open Frame |
| Screen Size | 10.1 inches (25.6 cm diagonal) |
| Display Technology | TFT-LCD with LED Backlight |
| Native Resolution | 1280 x 800 (WXGA) |
| Aspect Ratio | 16:10 |
| Colors Supported | 262,144 (18-bit) |
| Brightness (Typical) | 350 cd/m² (nits) |
| Contrast Ratio | 800:1 |
| Response Time | 25 ms |
| Viewing Angle (H/V) | 170° / 170° |
| Active Display Area (H x V) | 216.96 x 135.6 mm |
| Touch Technology | TouchPro™ Projected Capacitive (PCAP) |
| Touch Points | 10-touch (multi-touch) |
| Touch Interface | USB 2.0 |
| Surface Treatment | Clear (zero-bezel) |
| Video Interfaces | HDMI, VGA, DisplayPort |
| Supported Resolutions | 640x480, 720x400, 800x600, 1024x768, 1280x800, 1920x1080 |
| AC Input Voltage | 100–240 V AC |
| AC Input Frequency | 50–60 Hz |
| DC Input (Internal) | 12V DC |
| Power Consumption (Typical) | 6.1 W |
| Power Consumption (PowerSave) | 0.7 W |
| Power Consumption (Off) | 0.5 W |
| VESA Mounting Pattern | 75 x 75 mm (M4 screws), VESA MIS-E,C |
| Mounting Type | Open Frame / Flush Mount |
| IP Rating (Front) | IP65 (PCAP units, when sealed) |
| MTBF | 50,000 hours demonstrated |
| OSD Control | Tethered OSD Control Box |
| Color | Black |
| Agency Approvals | UL, FCC, cUL, IC, CCC, CE, TUV, VCCI, KCC, CoC, BSMI, CB, EAC, RoHS, China RoHS, WEEE |
| What's in the Box | HDMI Cable, VGA Cable, OSD Remote, Touch USB Cable, Quick Install Guide, Flush Mount Brackets w/Screws |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Elo
Part Number E231195 ET1093L
Controller Platform TouchPro Projected Capacitive (PCAP)
Shelf K-6
Model E231195 ET1093L
MPN E231195 ET1093L
Type Touch Screen
