Product Description

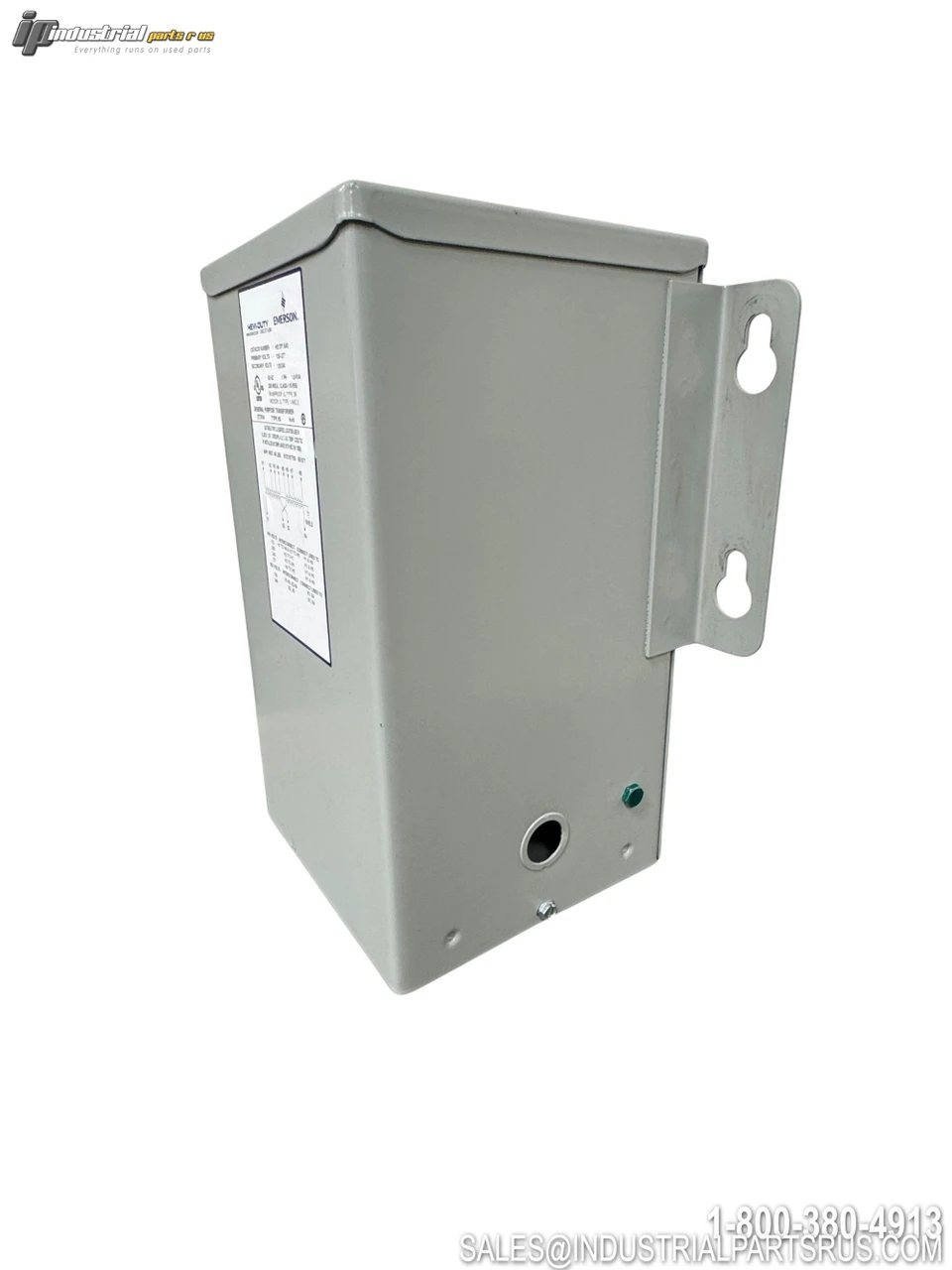

The Emerson SolaHD HS12F.15AS is a 150 VA (0.15 kVA) single-phase, non-ventilated automation transformer belonging to the HS12F series. It features a 120/208/240/277 VAC primary and a 120/240 VAC secondary at 60 Hz, housed in a UL Listed NEMA Type 3R enclosure suitable for both indoor and outdoor service. This transformer is rated for use in hazardous locations (Class I, Division 2, Group A, B, C and D) as well as harsh industrial environments when installed per NEC 501.100(B).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Emerson / SolaHD (Sola Hevi-Duty) |
| Model / Part Number | HS12F.15AS |
| Series | HS12F |
| Product Family | Automation Transformers – Non-Ventilated |
| Power Rating (kVA) | 0.15 kVA (150 VA) |
| Phase | 1 (Single Phase) |
| Primary Voltage | 120 / 208 / 240 / 277 VAC |
| Secondary Voltage | 120 / 240 VAC |
| Secondary Current (approx.) | 1.25 A (at 120V) / 0.625 A (at 240V) |
| Frequency | 60 Hz |
| Construction Type | Non-Ventilated, Non-Encapsulated (50–250 VA range) |
| Insulation Class | UL Class 130°C |
| Temperature Rise | 80°C (under full load) |
| Enclosure Rating | NEMA 3R / UL Type 3R |
| Mounting Type | Wall Mount |
| Connection Type | Copper Lead Wire |
| Winding Material | Aluminum |
| Installation | Indoor / Outdoor |
| Hazardous Location Rating | Class I, Division 2, Group A, B, C, D (per NEC 501.100(B)) |
| Certifications | UL Listed, CSA Certified |
| Application | Automation, Industrial Control, OEM Equipment |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Emerson
Enclosure Type NEMA 3R / UL Type 3R
Part Number HS12F.15AS
Shelf I-18
Model HS12F.15AS
MPN HS12F.15AS
Type Transformer
