Product Description

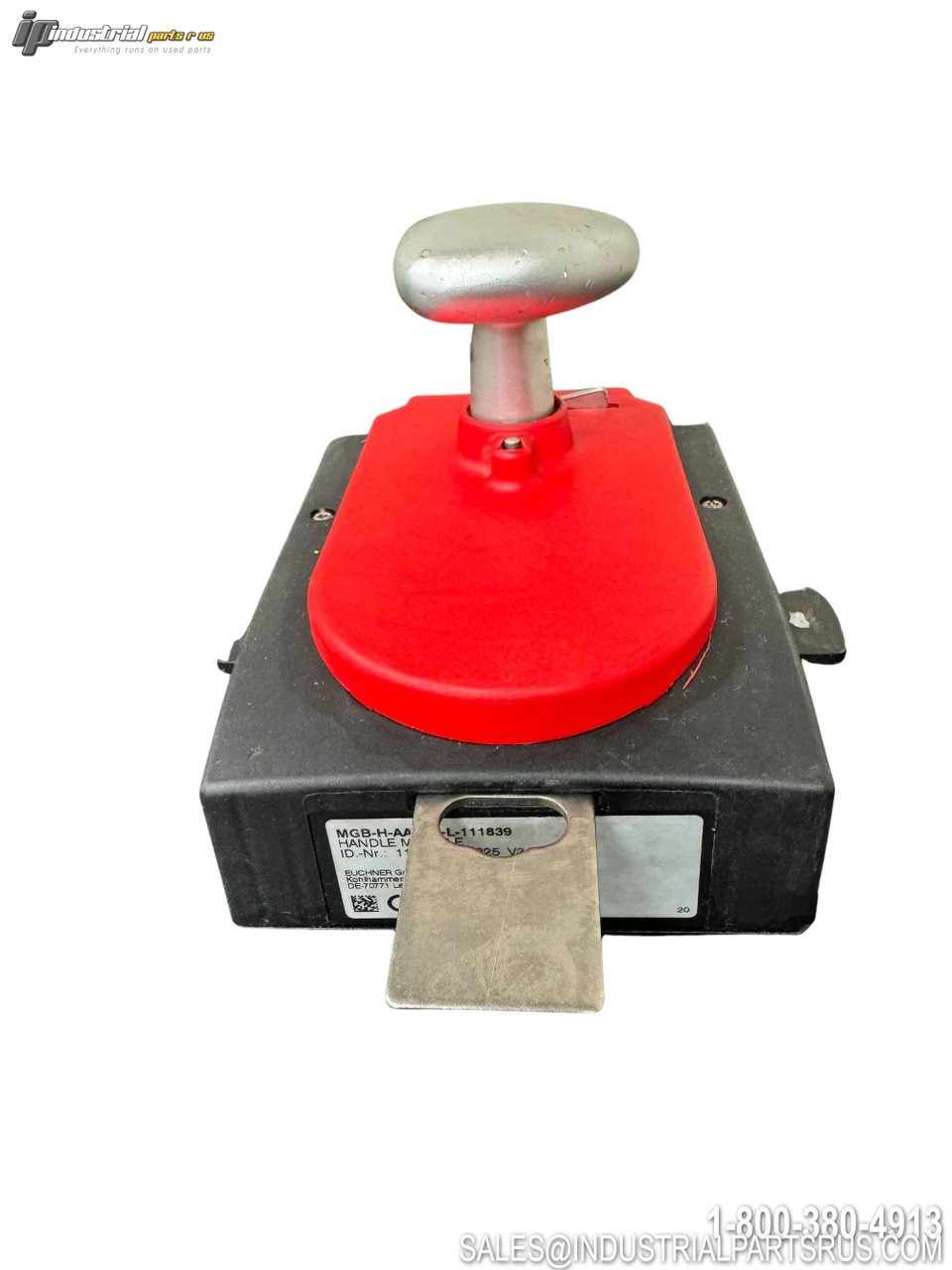

The Euchner MGB-H-AA1A6-L-111839 is a handle module for the Multifunctional Gate Box (MGB) safety system, designed for machine guarding applications on safety doors hinged on the left (DIN left). It includes an intelligent bolt tongue detected by RFID transponder, a fold-out lockout mechanism, a second automatically extending lockout mechanism, a robust door handle, and a mounting plate. The handle can be rotated in 90° steps and supports up to 3 padlocks for LOTO (Lockout/Tagout) compliance. This module is compatible with Euchner MGB locking modules and achieves the highest safety level of Category 4 / PLe per EN ISO 13849-1 and SIL 3 per EN 62061 when used in a complete MGB system.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Euchner |
| Model / Part Number | MGB-H-AA1A6-L-111839 |
| Order Number | 111839 |
| Product Type | Handle Module – Multifunctional Gate Box (MGB) |
| Product Series | MGB (Multifunctional Gate Box) |
| Installation Orientation | Door Hinge DIN Left |
| Degree of Protection | IP65 |
| Ambient Temperature | -20 ... +55 °C |
| Storage Temperature | -25 ... +70 °C |
| Housing Material | Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel |
| Safety Category | Category 4 / PLe per EN ISO 13849-1 |
| SIL Rating | SIL 3 per EN 62061 |
| Transponder Type | RFID / Unicode |
| Lockout Mechanism | Fold-out + Automatically Extending (second mechanism) |
| Max. Padlocks Supported | 3 |
| Door Handle Adjustment | Rotatable in 90° steps |
| Product Version | V3.0.0 |
| Additional Feature | With mounting plate and automatic lockout mechanism |
| Gross Weight | 1.722 kg (approx. 3.79 lbs) |
| GTIN | 4047048006775 |
| ECLASS 11.0 | 27-27-24-04 (Actuator for safety-related proximity switch) |
| Customs Tariff Number | 85389099990 |
| Compatible With | Euchner MGB Locking/Evaluation Modules (e.g., MGB-L1B-PNA-L series) |
| Approvals | DGUV, ET 25017, ET 25018 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Panel Mount / Surface Mount with Mounting Plate
Current Rating 200 mA
Manufacturer Euchner
Enclosure Type IP65
Part Number MGB-H-AA1A6-L-111839
Shelf K-10
Model MGB-H-AA1A6-L-111839
Coil Voltage 24V DC
MPN MGB-H-AA1A6-L-111839
Type Safety Interlock
