Product Description

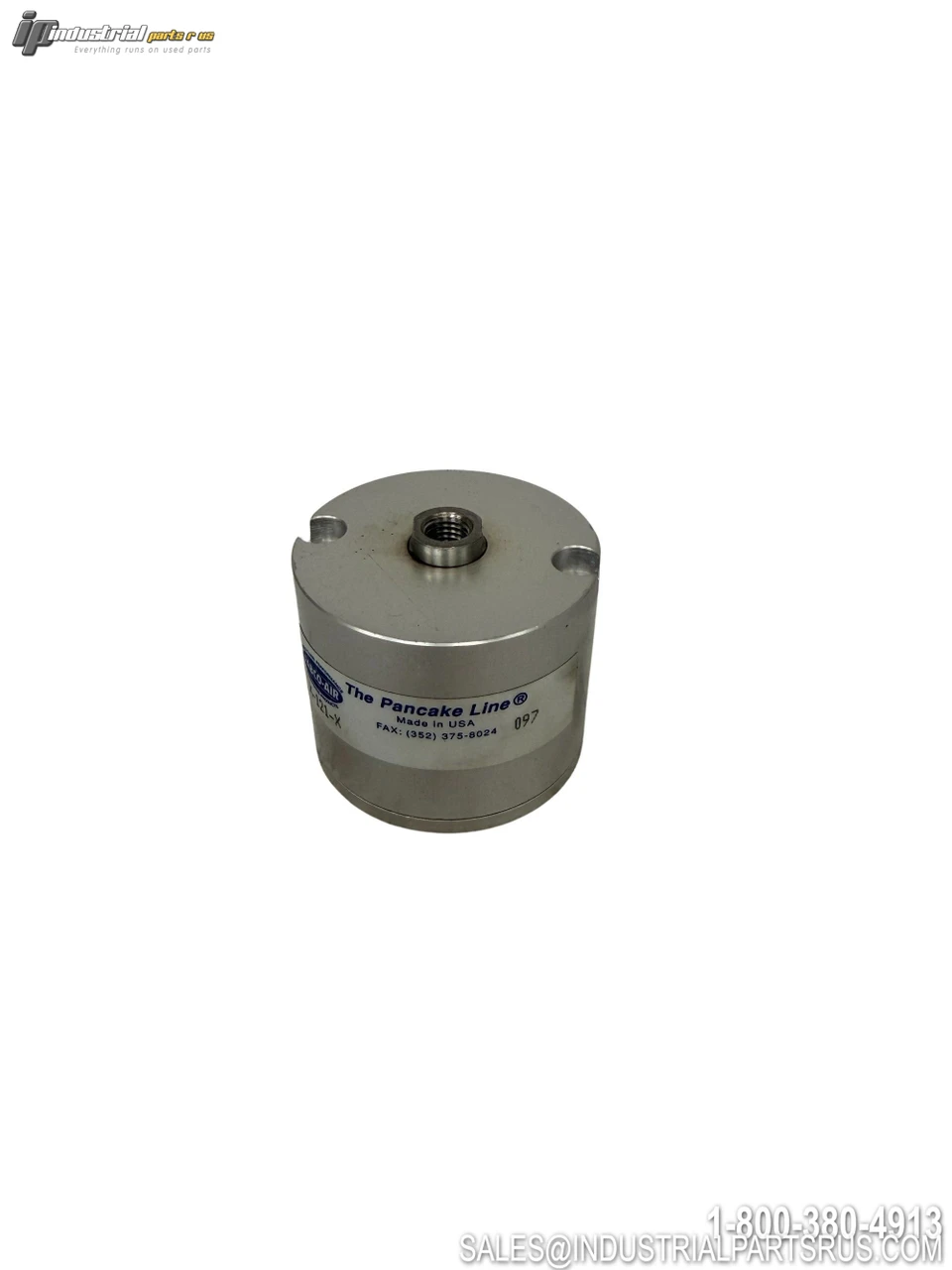

The Fabco-air X-121-x is a double-acting original compact round air cylinder actuator with single rod from the Pancake original series. This pneumatic cylinder features a 1-1/8" bore, 3/4" stroke, and is designed for through-hole mounting with clear anodized aluminum body and hard chrome-plated stainless steel piston rod.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fabco-air |
| Model/Part Number | X-121-x |
| Product Series | Pancake Original Series |
| Cylinder Type | Double-acting |
| Bore Diameter | 1-1/8" (28.5mm) |
| Stroke Length | 3/4" |
| Rod End Thread | 5/16"-24 UNF-2B female threaded |
| Port Size | 2 x 1/8" NPT threaded |
| Mounting Type | Through-hole mounting |
| Body Material | Clear anodized aluminum |
| Piston Rod | Hard chrome-plated stainless steel |
| Seals | Standard Buna-N |
| Pressure Rating | 4.5 PSI - 250 PSI |
| Operating Temperature | -25°F to +250°F (-31°C to +121°C) |
| Shape | Round cylindrical |
| Design | Single rod |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Fabco-Air
Part Number X-121-X
Shelf K-3
Bore Diameter 1-1/8 in
Model X-121-X
MPN X-121-X
Type Pneumatic Cylinder
