Product Description

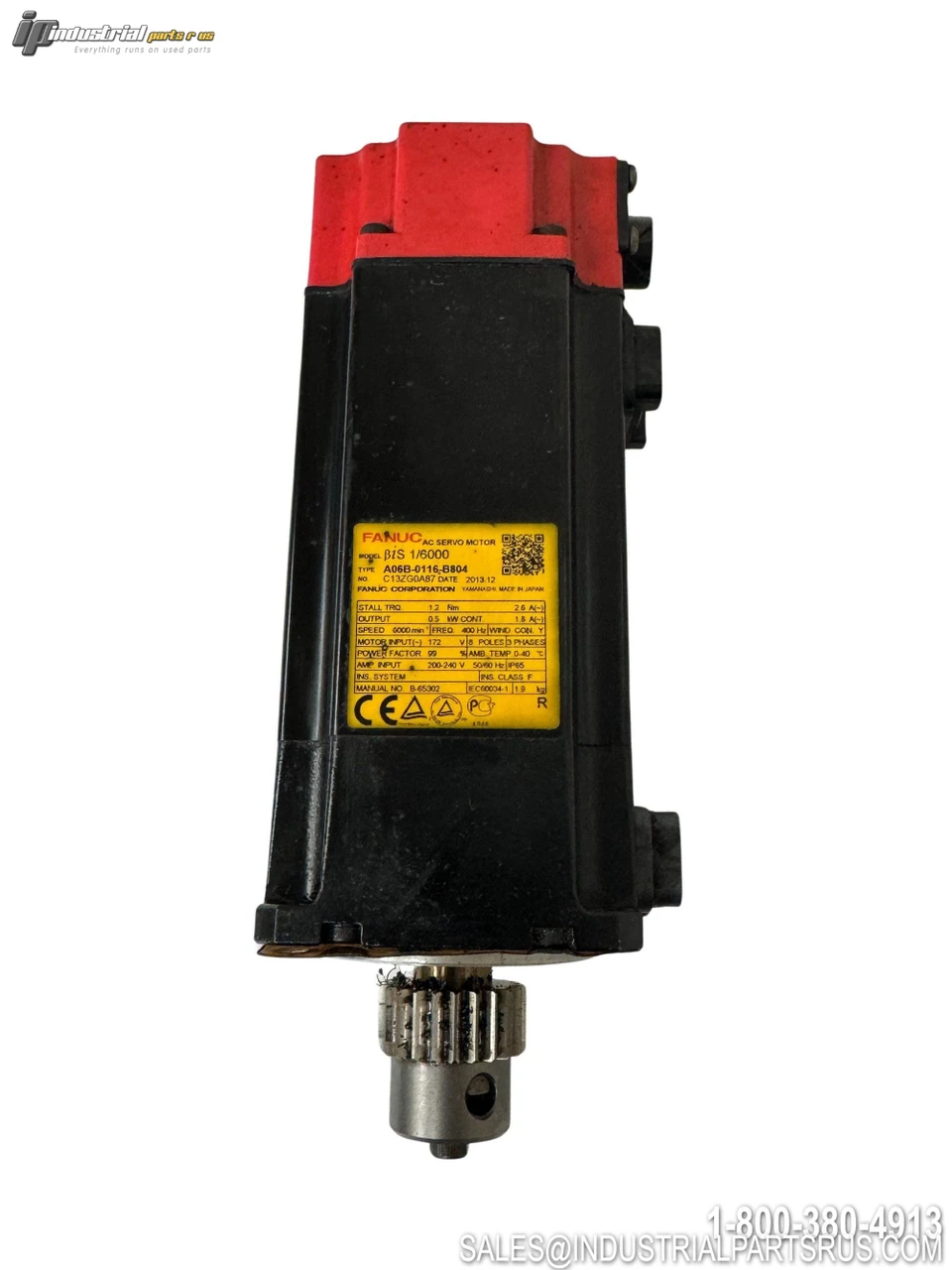

The Fanuc A06B-0116-B804 is a Beta iS series AC servo motor (Model BiS1/6000) designed for high-precision motion control in CNC machine tools, industrial robots, and factory automation systems. It delivers 0.5 kW of continuous rated output at up to 6,000 RPM, featuring a straight shaft with keyway for secure mechanical coupling and a built-in 90V DC brake for controlled, safe stopping. The motor includes a b64iA incremental encoder (64 pulses per revolution) that provides precise speed and position feedback to the connected servo amplifier or CNC controller.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fanuc |
| Model / Part Number | A06B-0116-B804 |
| Product Description | AC SERVO MDL BiS1/6000, ST, KEY, 90v BRK, b64ia |
| Motor Series | Beta iS (βiS) Series |
| Motor Model | BiS 1/6000 |
| Rated Output Power | 0.5 kW |
| Maximum Speed | 6,000 RPM |
| Stalling Torque | 1.2 Nm |
| Rotor Inertia | 0.00001 kg·m² |
| Phase | 3-Phase |
| Number of Poles | 8 |
| Input Voltage | 200–240V AC |
| Brake Voltage | 90V DC |
| Encoder Type | b64iA Incremental Encoder |
| Shaft Type | Straight Shaft with Keyway (ST, KEY) |
| Mounting Type | Flange Mount |
| Enclosure / Protection Class | IP65 |
| Weight | 3.86 lbs (1.75 kg) |
| Product Series (Part Group) | A06B-0116 |
| Manufacturer Status | Discontinued — Replaced by A06B-2116-B805 |
| Compatible Systems | Fanuc CNC, Industrial Robots, Automation Systems |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Stall Torque 1.2 Nm
Country/Region of Manufacture Japan
Manufacturer Fanuc
Shaft Diameter 14 mm
Enclosure Type IP65
Part Number A06B-0116-B804
Shelf G-3
Model A06B-0116-B804
MPN A06B-0116-B804
Type AC Servo Motor
