Product Description

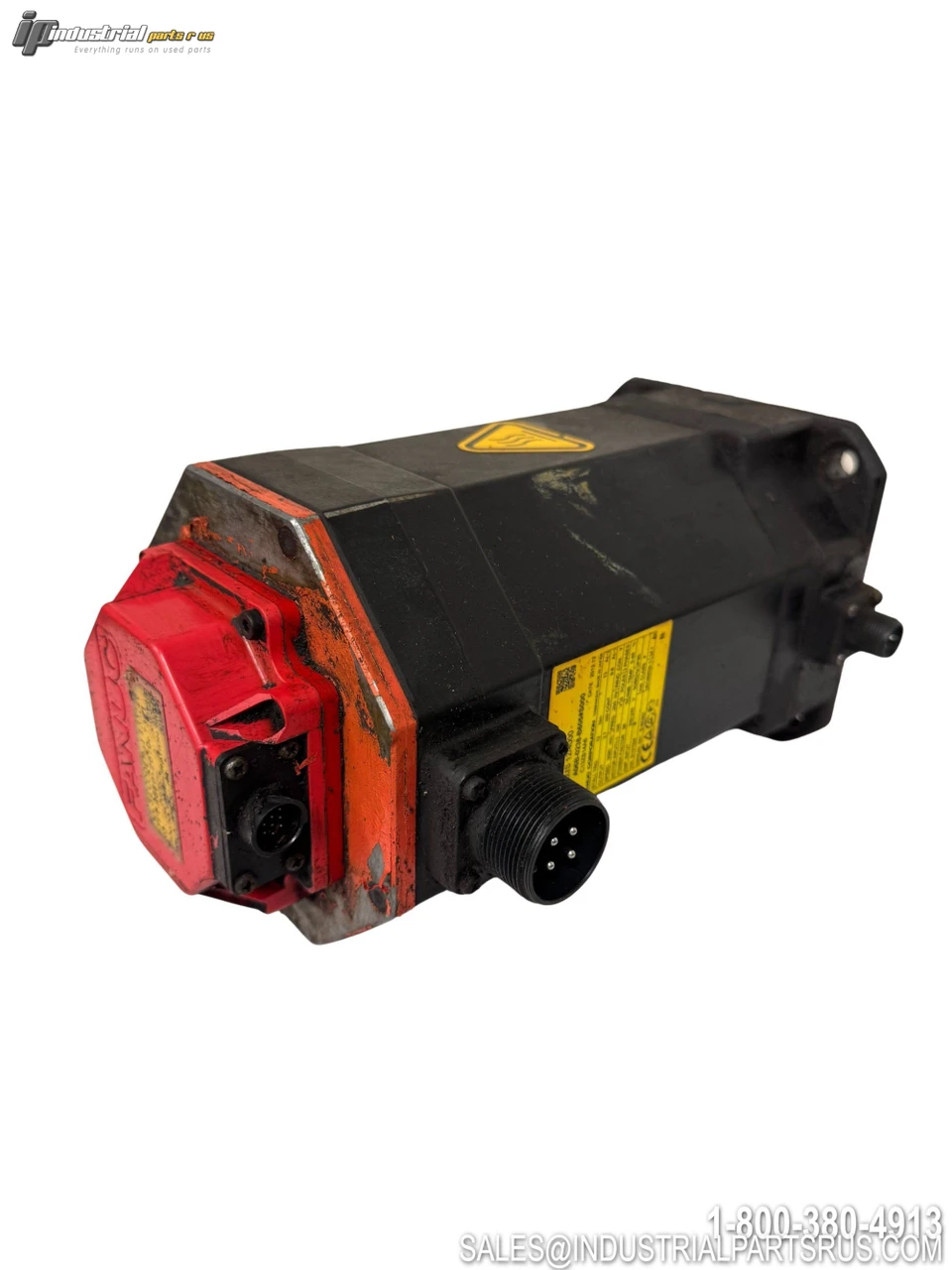

The Fanuc A06B-0238-B605#S000 is a three-phase AC servo motor from the Alpha iS (αiS) series, model AiS12/4000, rated at 2.7 kW continuous output and 3000 RPM maximum speed. It features a tapered shaft with keyway, an integrated 90V DC holding brake, and a high-resolution a64iA absolute pulse coder encoder (16,777,216 PPR) for precise positioning and feedback. This motor carries an IP65 enclosure rating and is designed for demanding CNC machine tool and industrial robot applications requiring high torque density and reliable motion control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fanuc |
| Model / Part Number | A06B-0238-B605#S000 |
| Motor Series / Model Name | Alpha iS (αiS) Series – AiS12/4000 |
| Motor Type | AC Servo Motor (Permanent Magnet Synchronous) |
| Rated Output Power | 2.7 kW |
| Rated Speed (Max) | 3000 RPM |
| Stall Torque | 12 Nm |
| Rated Voltage (Output) | 168V AC |
| Input Voltage | 200–240V AC |
| Phase | 3-Phase |
| Frequency | 200 Hz (input: 50/60 Hz) |
| Stall Current | 13 A |
| Rated Current (Continuous) | 9.6 A |
| Power Factor | 98% |
| Number of Poles | 8 |
| Winding Configuration | Wye (Star) |
| Shaft Type | Tapered Shaft with Keyway (TPR) |
| Brake | 90V DC Holding Brake |
| Encoder / Feedback | a64iA Absolute Pulse Coder (Ai AR128) |
| Enclosure / Protection Class | IP65 |
| Insulation Class | Class F |
| Motor Family | 200V AC Alpha i Series |
| Suitable Applications | CNC Machine Tools, Industrial Robots (e.g. R-30iA), Automation |
| Approx. Weight | 33.2 lbs (15.1 kg) |
| Approx. Dimensions (L × W × H) | 15.5 × 8 × 6.5 in |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Stall Torque 12 Nm
Full Load Amps 9.6A
Manufacturer Fanuc
Shaft Diameter 35 mm (Tapered)
Enclosure Type IP65
Part Number A06B-0238-B605#S000
Shelf G-4
Model A06B-0238-B605#S000
MPN A06B-0238-B605#S000
Type AC Servo Motor
