Product Description

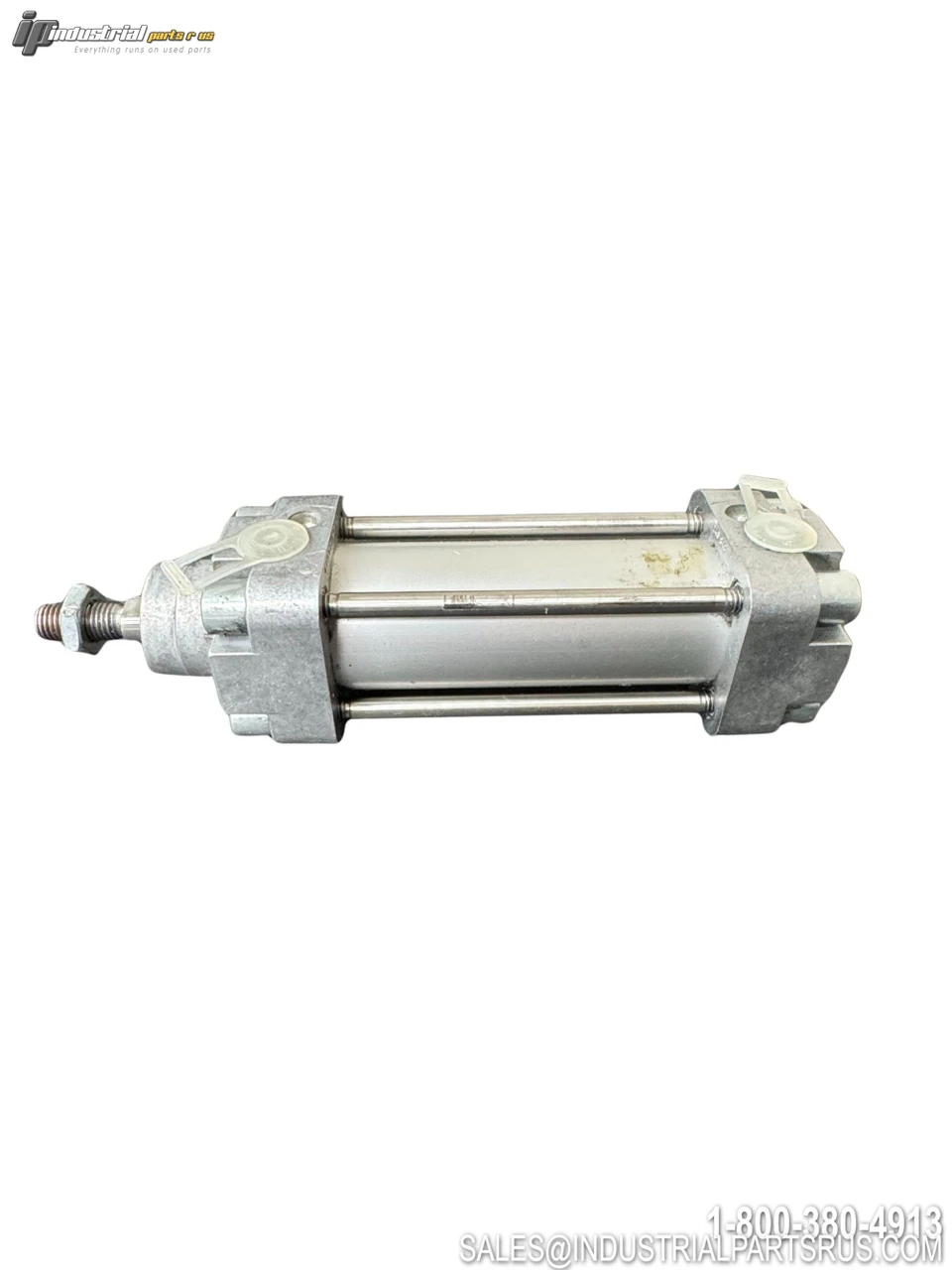

The Festo DNG-32-50-PPV-A is a standard double-acting pneumatic cylinder conforming to ISO 15552 (previously also VDMA 24652, ISO 6431, NF E 49 003.1, and UNI 10 290). It features a 32mm piston diameter, 50mm stroke, and pneumatic cushioning adjustable at both ends (PPV), with a profile barrel design suitable for proximity sensor position detection. The cylinder operates over a pressure range of 0.6 to 12 bar and can be mounted in any position via accessories.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Festo |
| Model / Part Number | DNG-32-50-PPV-A |
| Festo Part Number | 36323 |
| Product Series | DNG (Standard Cylinder) |
| Conforms to Standard | ISO 15552 (also NF E 49 003.1, UNI 10 290) |
| Cylinder Type | Standard / Double-Acting |
| Piston Diameter (Bore) | 32 mm |
| Stroke Length | 50 mm |
| Piston Rod Thread | M10 x 1.25 |
| Piston-Rod End | Male thread |
| Cushioning Type | PPV – Pneumatic cushioning, adjustable at both ends |
| Cushioning Length | 19 mm |
| Operating Pressure | 0.6 – 12 bar (87 – 174 psi) |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air per ISO 8573-1:2010 [7:4:4] |
| Pneumatic Port Size | G1/8 |
| Theoretical Force at 6 bar – Advance Stroke | 483 N |
| Theoretical Force at 6 bar – Return Stroke | 415 N |
| Position Detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Assembly / Mounting Position | Any (via accessories) |
| Ambient Temperature Range | -20 °C to +80 °C |
| Corrosion Resistance Class (CRC) | CRC 2 – Moderate corrosion stress |
| Authorisation | Germanischer Lloyd |
| Basic Weight (0 mm stroke) | 565 g |
| Additional Weight per 10 mm Stroke | 30 g |
| Cylinder Barrel Material | Wrought aluminium alloy (smooth-anodised / profile barrel) |
| Cover / End Cap Material | Die-cast aluminium (coated) |
| Piston Rod Material | High-alloy steel (hard-chrome-plated, tempered) |
| Seal Material | NBR / TPE-U (PU) |
| Lubricated Operation | Possible (subsequently always required if used) |
| RoHS Compliant | Yes |
| LABS (PWIS) Conformity | VDMA 24364-B1/B2-L |
| Design Structure | Piston / Piston rod / Profile barrel |
