Product Description

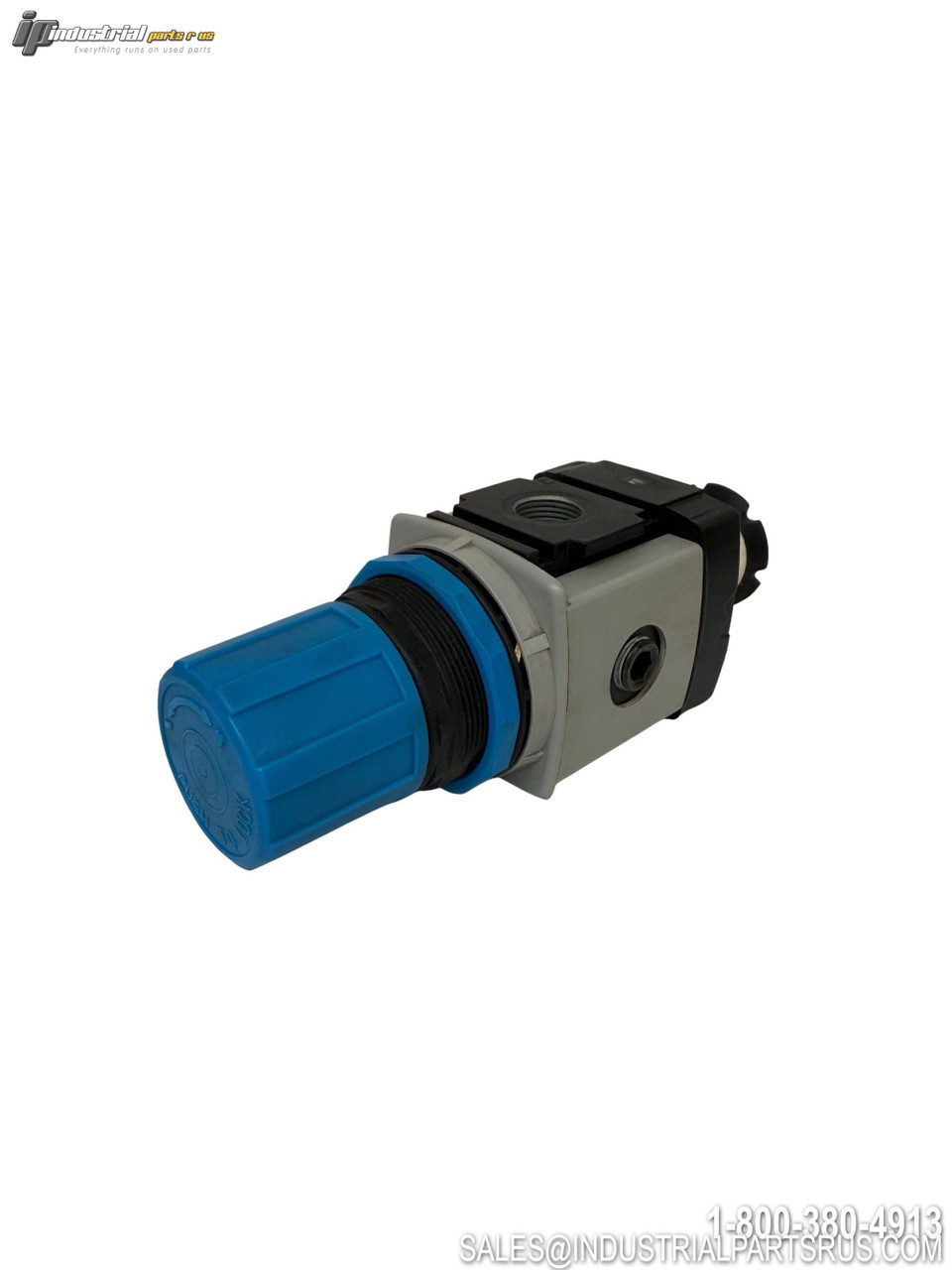

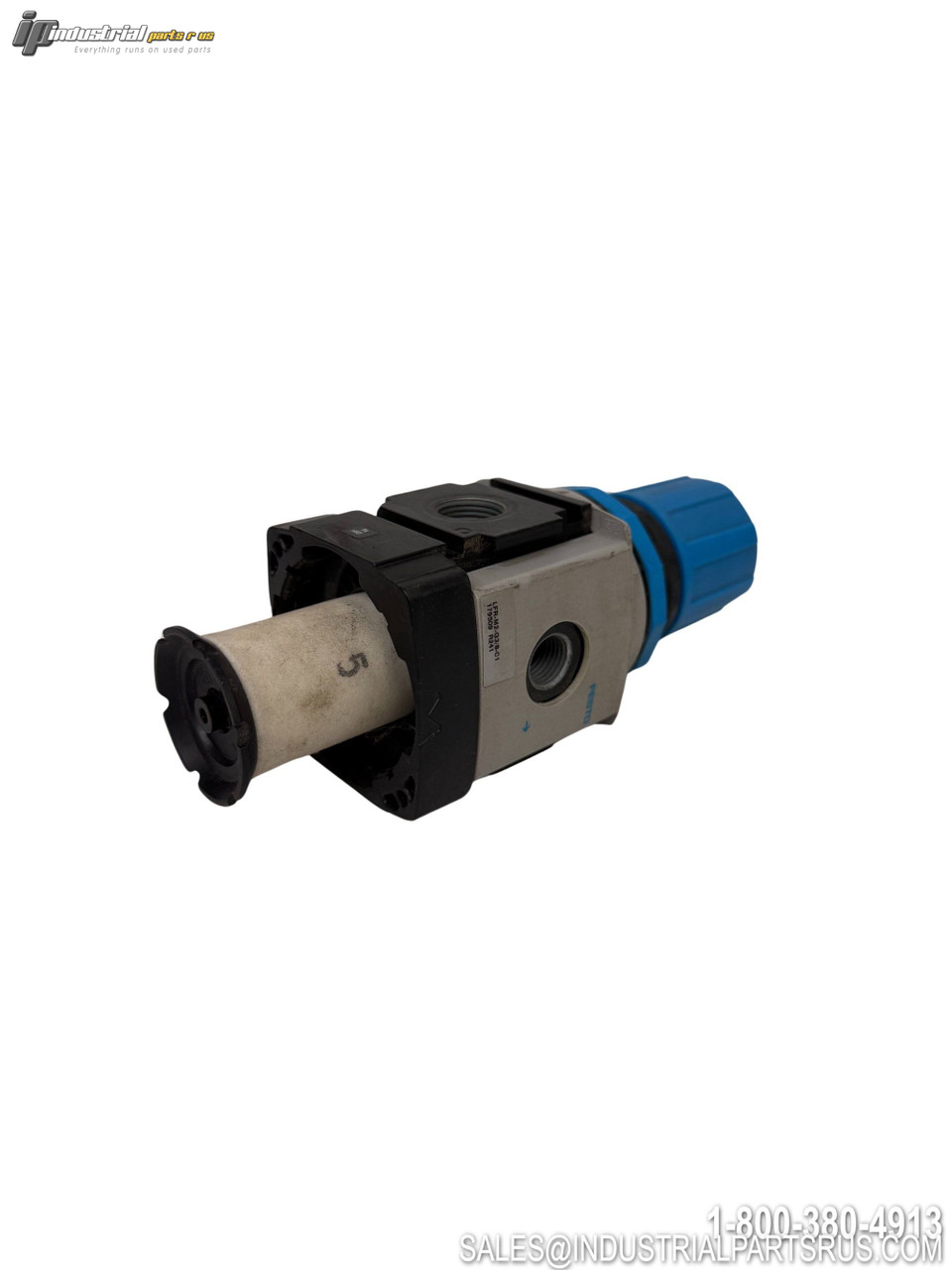

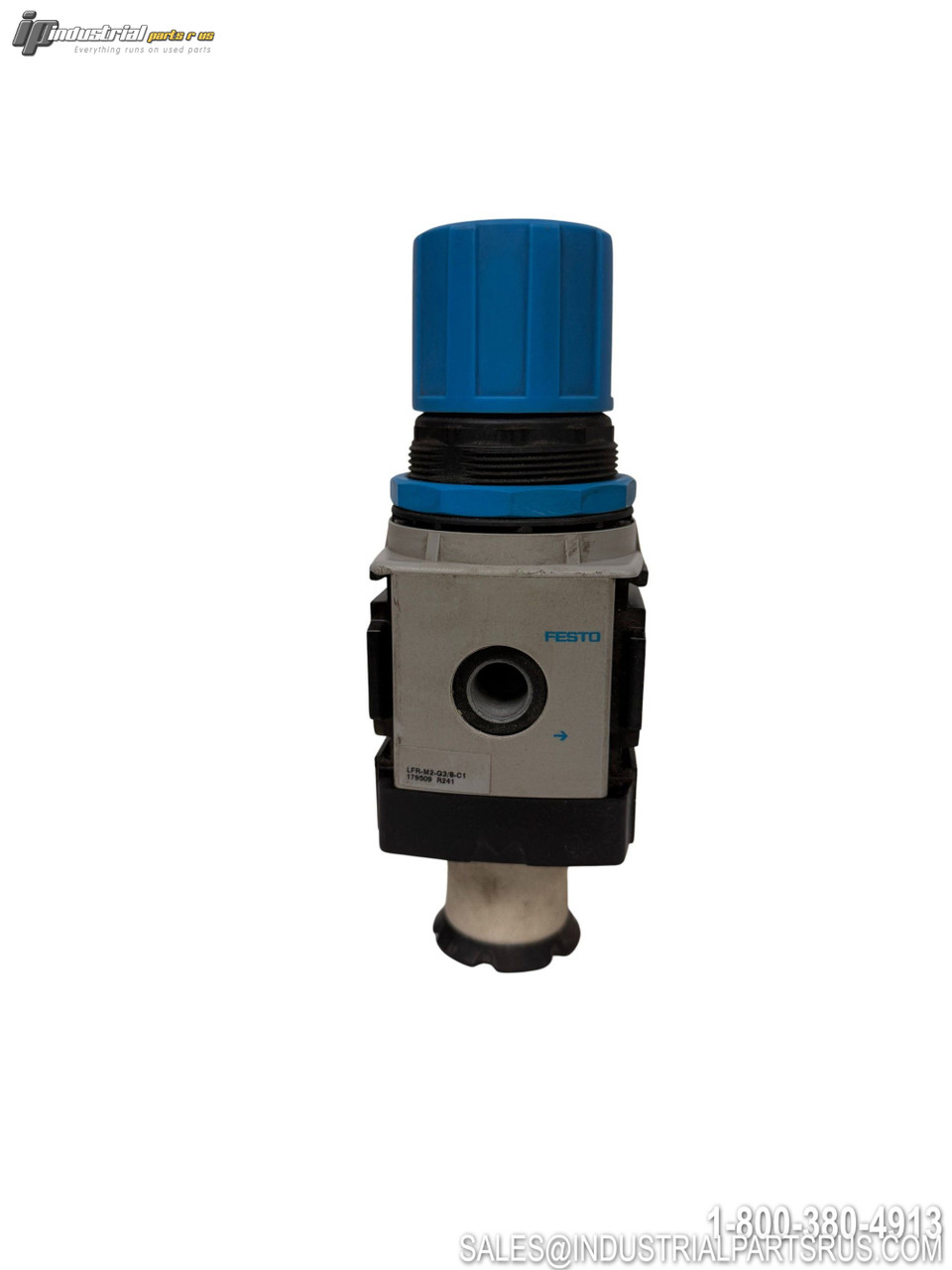

The Festo LFR-M2-G3/8-C1 is a Midi-size combination filter regulator from Festo's M-series air preparation product line. It integrates particle filtration (40 µm) and pressure regulation into a single compact unit with G3/8 BSPP pneumatic connections, a rotary knob with lock, and an integrated pressure gauge. This unit is designed for use in compressed air systems requiring clean, pressure-regulated supply air and is suitable for standard industrial automation environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Festo |
| Model / Part Number | LFR-M2-G3/8-C1 |
| Product Type | Filter Regulator (FRL) |
| Series | M-Series (Metal) |
| Size | Size 2 (Midi) |
| Pneumatic Connection (Port 1 & 2) | G3/8 (BSPP Female Thread) |
| Inlet Pressure (Max) | 0 – 12 bar (0 – 174 psi) |
| Pressure Control Range | 0 – 10 bar (0 – 145 psi) |
| Grade of Filtration | 40 µm |
| Standard Nominal Flow Rate | 3,800 l/min |
| Max. Pressure Hysteresis | 0.5 bar |
| Condensate Drain | Manual |
| Pressure Gauge | Included (with pressure gauge) |
| Actuator Lock | Rotary knob with lock |
| Max. Condensate Volume | 52.75 cm³ |
| Operating Medium | Compressed air |
| Medium Temperature | -10 °C to +60 °C |
| Ambient Temperature | -10 °C to +60 °C |
| Assembly / Mounting Position | Vertical ±5° |
| Housing Material | Zinc die-cast / Wrought aluminium alloy |
| Bowl Material | Polycarbonate (PC) |
| Bowl Guard | Plastic guard |
| Product Weight | 1,900 g (approx.) |
| Standards Compliance | ISO 1179-1, ISO 228-1 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Festo
Part Number LFR-M2-G3/8-C1
Shelf A-20
Model LFR-M2-G3/8-C1
MPN LFR-M2-G3/8-C1
Type FRL
