Product Description

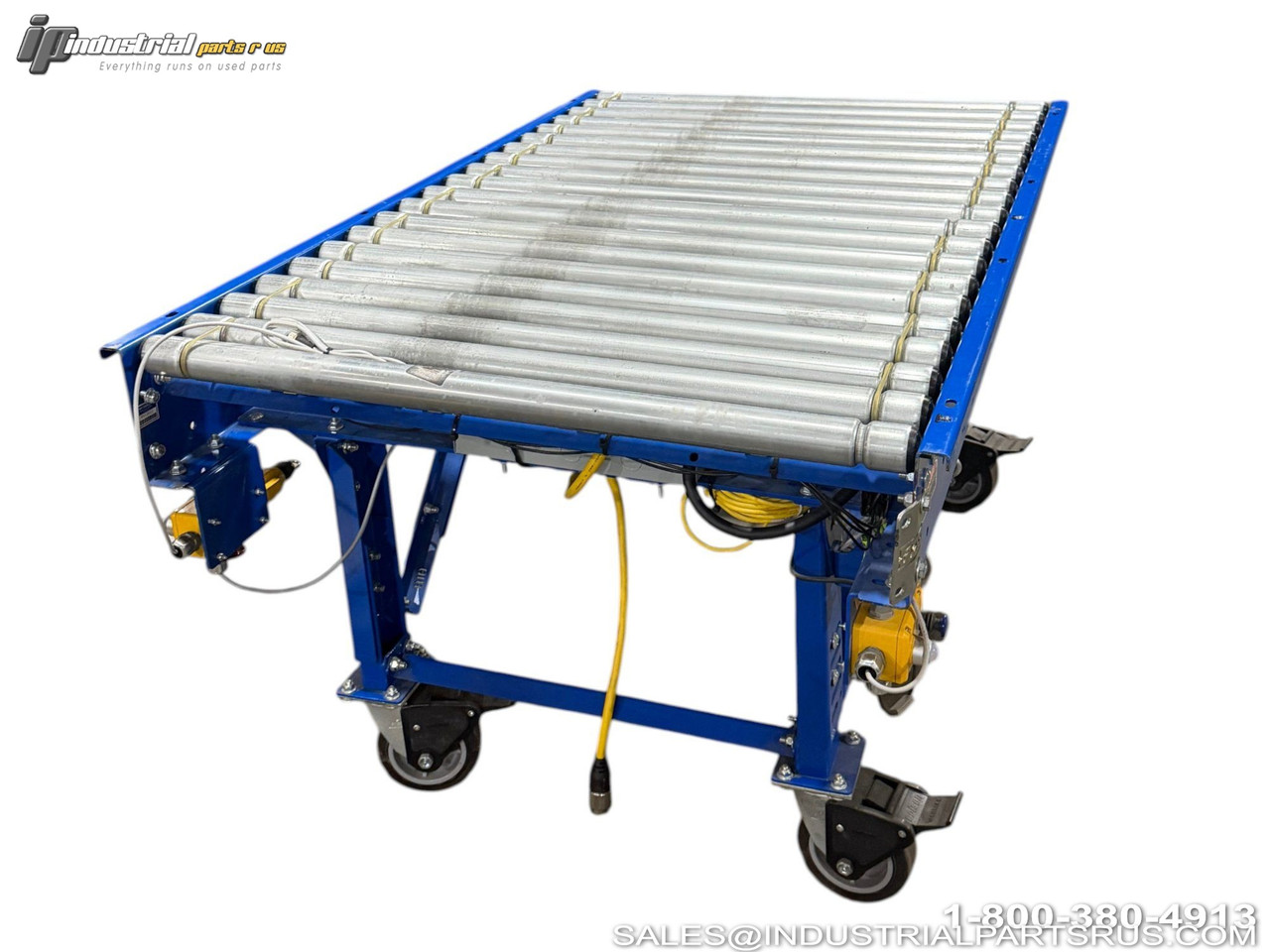

The FMH Conveyors BC3660A-AMZ is a BestConnect rigid modular accumulation conveyor section measuring 36 inches wide by 60 inches long. It is part of FMH's BestConnect system — a modular, powered roller conveyor platform designed for rapid deployment, reconfiguration, and zero-pressure package accumulation in warehouse, distribution, and truck loading/unloading operations. The accumulation function uses photo eye sensors and zones of DC-powered 1.9" rollers to control package flow, stopping each zone's rollers when a package is detected downstream, and releasing only when the next zone is clear.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | FMH Conveyors |
| Model / Part Number | BC3660A-AMZ |
| Product Line | BestConnect Rigid Modular Conveyor |
| Section Type | Accumulation (Zero-Pressure) |
| Width (Between Frames) | 36 inches |
| Length | 60 inches |
| Roller Diameter | 1.9 inches |
| Roller / Axle Centers | 3 inches |
| Input Voltage | 120VAC, 30A |
| Motor Voltage (DC) | 90VDC |
| Roller Speed | Variable, 0–120 FPM |
| Caster Size | 6" x 2" heavy duty with locking brakes |
| Electrical Connection | Twist-and-lock, no field wiring required |
| Accumulation Control | Photo eye sensors, zoned zero-pressure |
| Status Indicators | Illuminated On/Off buttons (green/red zone lights) |
| Frame Material | Steel |
| Conveyor Height | Adjustable |
| Available Standard Widths | 24, 30, 36, 48 inches |
| Compatible Systems | BestConnect, NestaFlex (w/ bracket kit), BestFlex (w/ bracket kit) |
| Manufacturer HQ | Jonesboro, AR 72401 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 30A
Manufacturer Fmh Conveyors
Part Number BC3660A-AMZ
Shelf Freight
Model BC3660A-AMZ
MPN BC3660A-AMZ
Type Conveyor
