Product Description

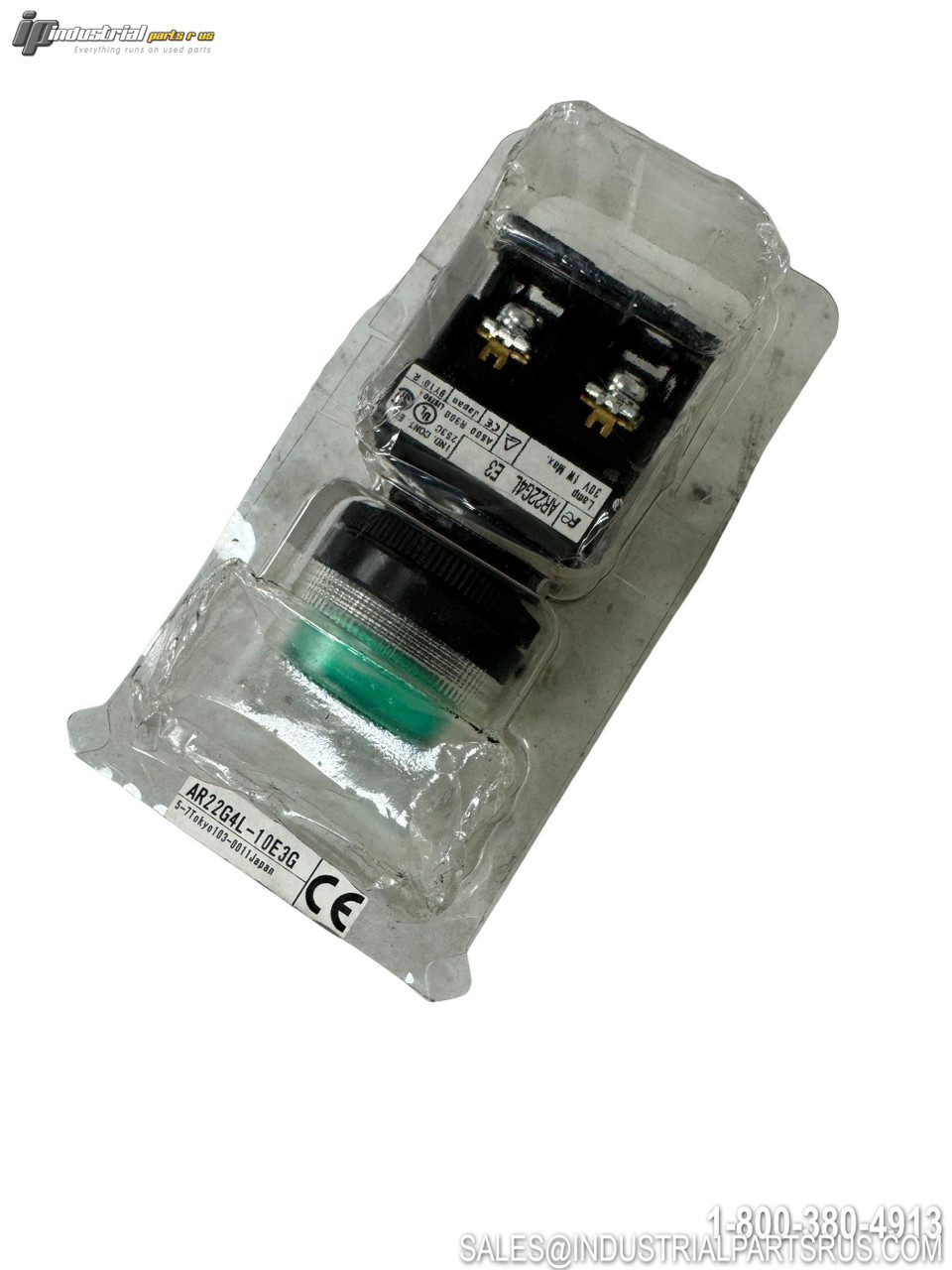

The Fuji Electric AR22G4L-10E3G is a 22mm diameter illuminated momentary push button switch from the AR22 Series, featuring an extended round head with a full guard (24mm dia.), green LED illumination rated at 24V AC/DC without a transformer, and one normally open (N.O.) SPST contact with screw terminal connections. It is designed for use in machine tools, industrial machines, control panels, and distribution panels where reliable operator interface is required. The AR22 Series uses a one-touch lock and release arm with a wedge mechanism for tool-free mounting and contact block replacement, and accommodates both 22.3mm and 25.5mm panel cutout diameters.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model / Part Number | AR22G4L-10E3G |
| Series | AR22 |
| Product Type | Illuminated Push Button Switch |
| Mounting Hole Diameter | 22mm (fits 22.3mm or 25.5mm panel cutout) |
| Operator / Actuator Style | Extended Round Head with Full Guard (24mm dia.) |
| Action Type | Momentary |
| Contact Configuration | 1 N.O. (Normally Open) |
| Pole / Throw Configuration | SPST |
| Illumination Color | Green |
| Illumination Type | LED (High-Brightness "Pikari Kun") |
| Lamp / LED Voltage | 24V AC/DC (No Transformer Required) |
| Terminal Type | Screw Terminal |
| Mounting Type | Panel Mount (Threaded Bushing) |
| Panel Thickness Range | 1 to 6mm |
| Overall Dimensions | 44 x 30 x 98.5 mm |
| Rated Insulation Voltage | 600V AC/DC |
| Dielectric Strength | 2500V AC, 1 minute |
| Insulation Resistance | 100 MΩ or more (500V DC megger) |
| Mechanical Durability | Up to 5 million operations |
| Electrical Durability | 500,000 operations at 220V AC 6A |
| Operating Frequency | Up to 1,200 operations/hour |
| Degree of Protection | IP65 (Oil and Dust-Tight) |
| Ambient Temperature | -20 to +70°C (-4 to +158°F) |
| Utilization Category | AC-15, DC-13 |
| Wire Size | AWG 18 to AWG 14 |
| Tightening Torque | 0.8 to 1.0 N·m |
| Approvals / Certifications | UL508, CSA C22.2 No.14, TÜV EN60947-5-1, CCC GB14048.5, RoHS Compliant |
| ECCN | EAR99 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Fuji
Enclosure Type IP65
Part Number AR22G4L-10E3G
Shelf J-38
Model AR22G4L-10E3G
MPN AR22G4L-10E3G
Type Push Button
