Product Description

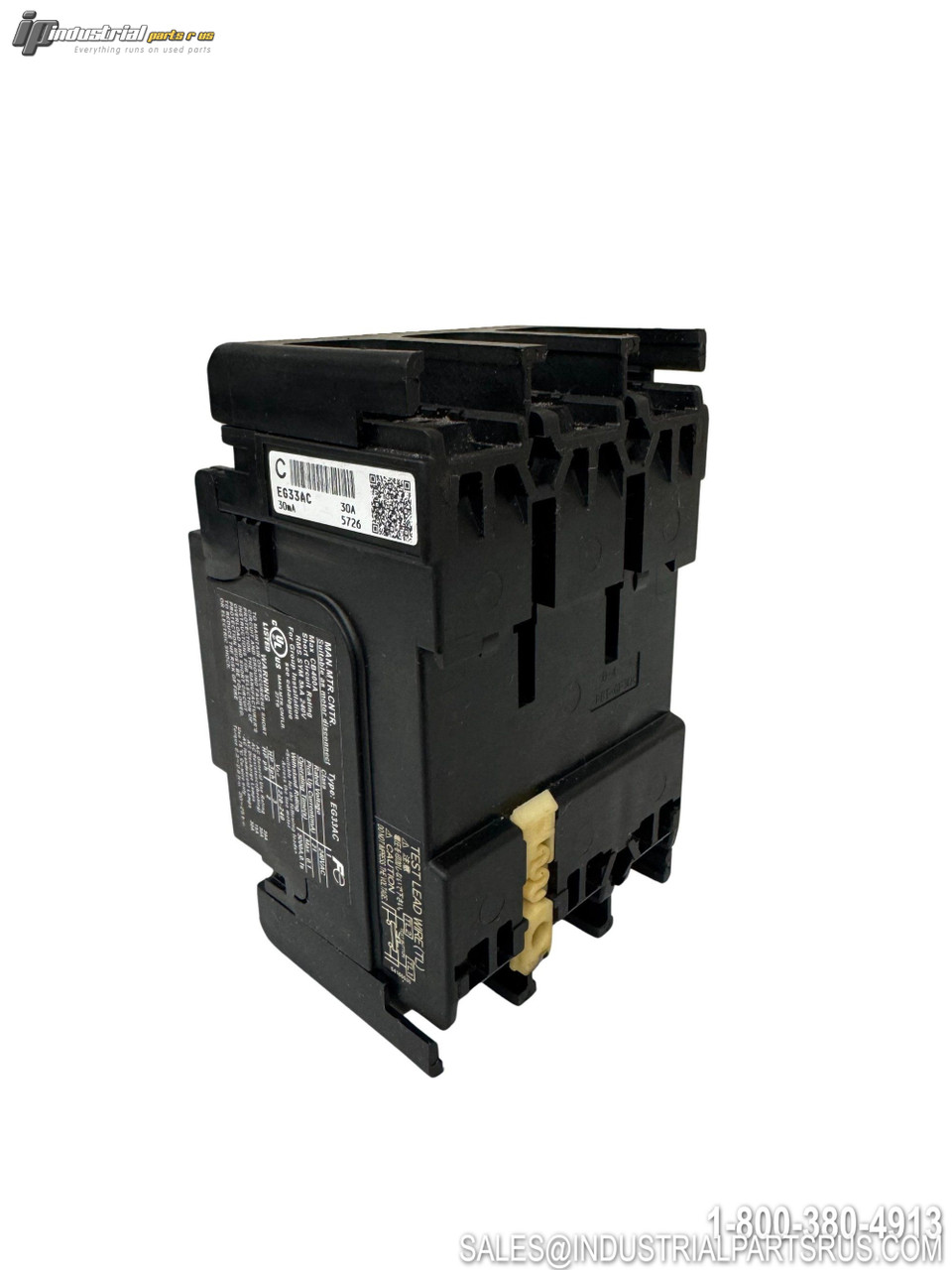

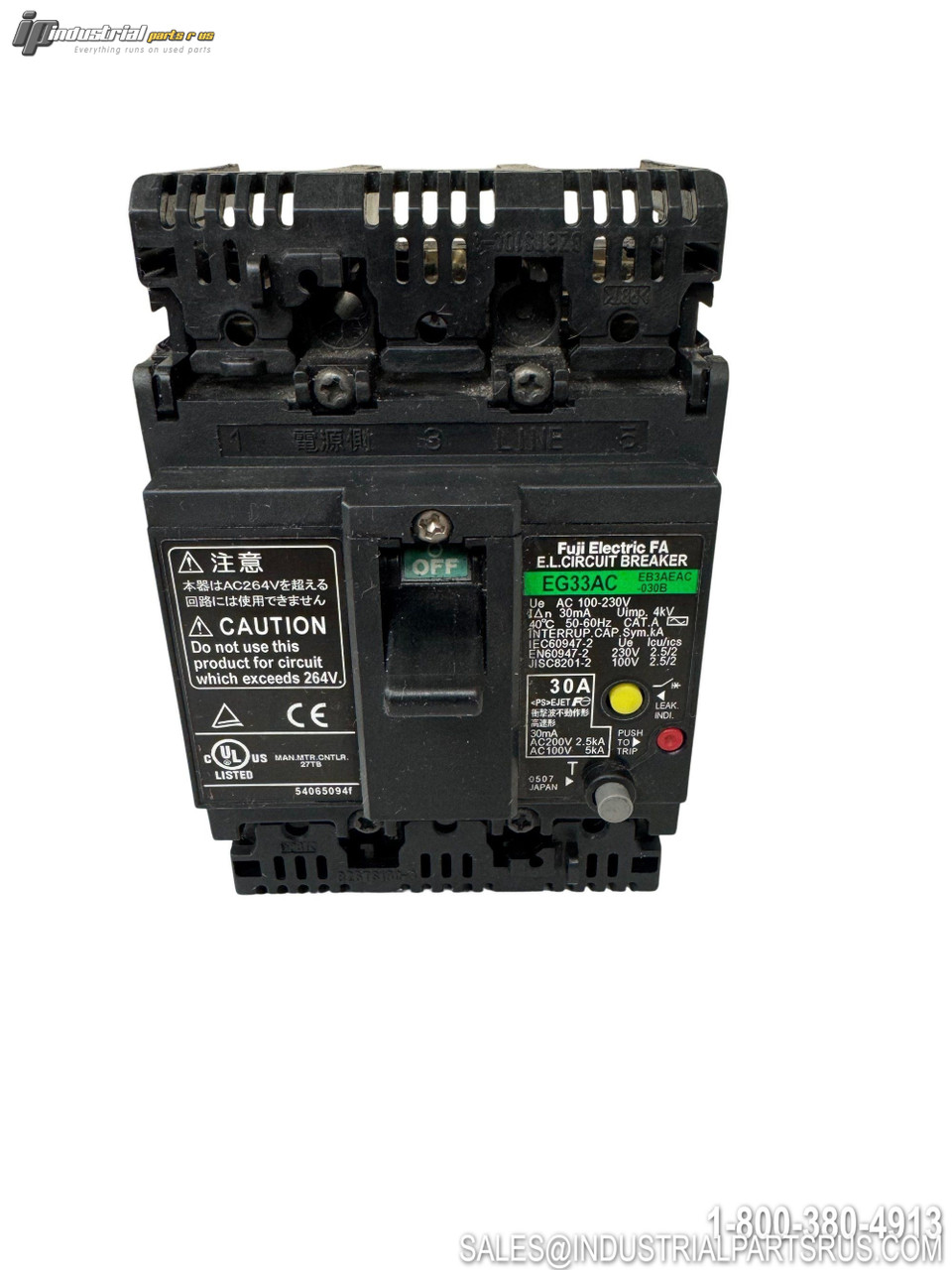

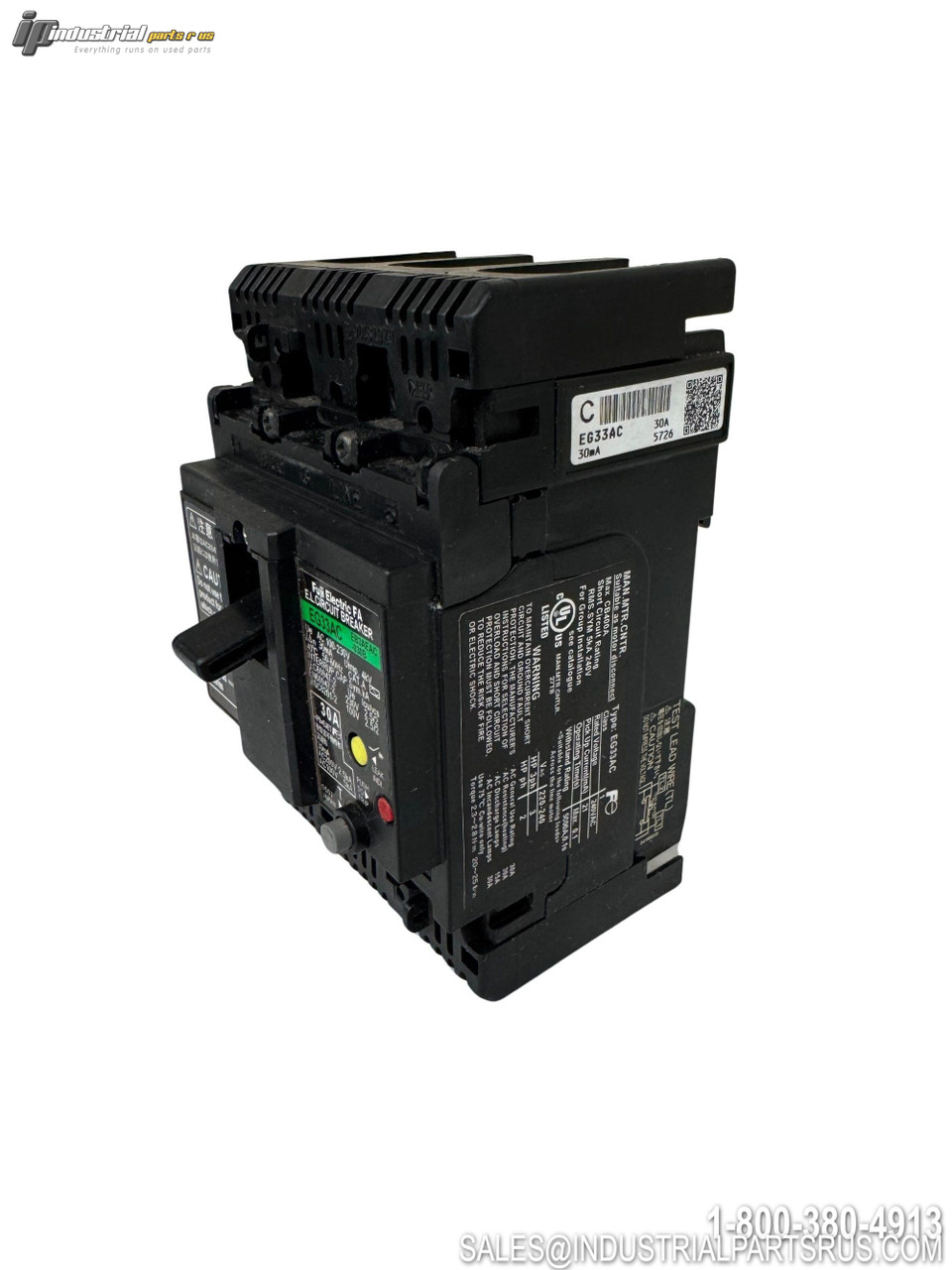

Fuji Electric EG33AC is a 3-pole, 30 A Earth Leakage Circuit Breaker (ELCB) from Fuji Electric's α-TWIN Series. It is designed to provide both overcurrent protection and ground-fault (earth leakage) protection in three-phase industrial electrical systems. It is a discontinued model that has been replaced by newer Fuji Electric G-TWIN series breakers.
Key specifications
- Manufacturer: Fuji Electric
- Model: EG33AC
- Type: Earth Leakage Circuit Breaker (ELCB)
- Poles: 3
- Rated current: 30 A
- Frame size: 30 AF
- Series: α-TWIN
- Mounting: Surface mount
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model / Part Number | EG33AC |
| Product Type | Earth Leakage Circuit Breaker (ELCB) |
| Series | EG Series |
| Number of Poles | 3 |
| Ampere Frame | 30A |
| Available Rated Current (A) | 5, 10, 15, 20, 30 |
| Rated Operating Voltage (AC) | 100–230V AC |
| Rated Sensitive Current (Earth Leakage) [mA] | 15 mA, 30 mA, 100 mA (specified at order) |
| Interrupting Capacity Icu/Ics @ 100–230V AC | 2.5 kA / 2.0 kA |
| Applicable 3-Phase Load (HP) @ 220–240V AC | 0.5 / 1 / 2 / 2 / 3 HP (5–30A) |
| Applicable Single-Phase Load (HP) @ 220–240V AC | 1/6 / 1/3 / 3/4 / 1 / 2 HP (5–30A) |
| Standards | IEC 60947-2, JIS C8201-2-2, UL508 (cUL) |
| UL508 Rated Operating Voltage | 240V AC |
| Mounting Types Available | Blank (panel), X, E, Y, P (plug-in) |
| Test Button | Yes (built-in) |
| Trip Button | Yes |
| CE Marking Model | EG33AC-CE |
| Insulation | Resin-molded ZCT integrated unit |
| Accessory Dimensions (A × B × C, mm) | 85 × 42.5 × 83 |
| Manufacturer | Fuji Electric FA Components & Systems Co., Ltd. |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Panel Mount
Current Rating 5 A, 10 A, 15 A, 20 A, 30 A
Material Thermoplastic (Resin-Molded)
Full Load Amps 15 mA, 30 mA, 100 mA
Manufacturer Fuji
Part Number EG33AC
Shelf J-2
Model EG33AC
MPN EG33AC
Voltage 100-230V AC
Type Circuit Breaker
