Product Description

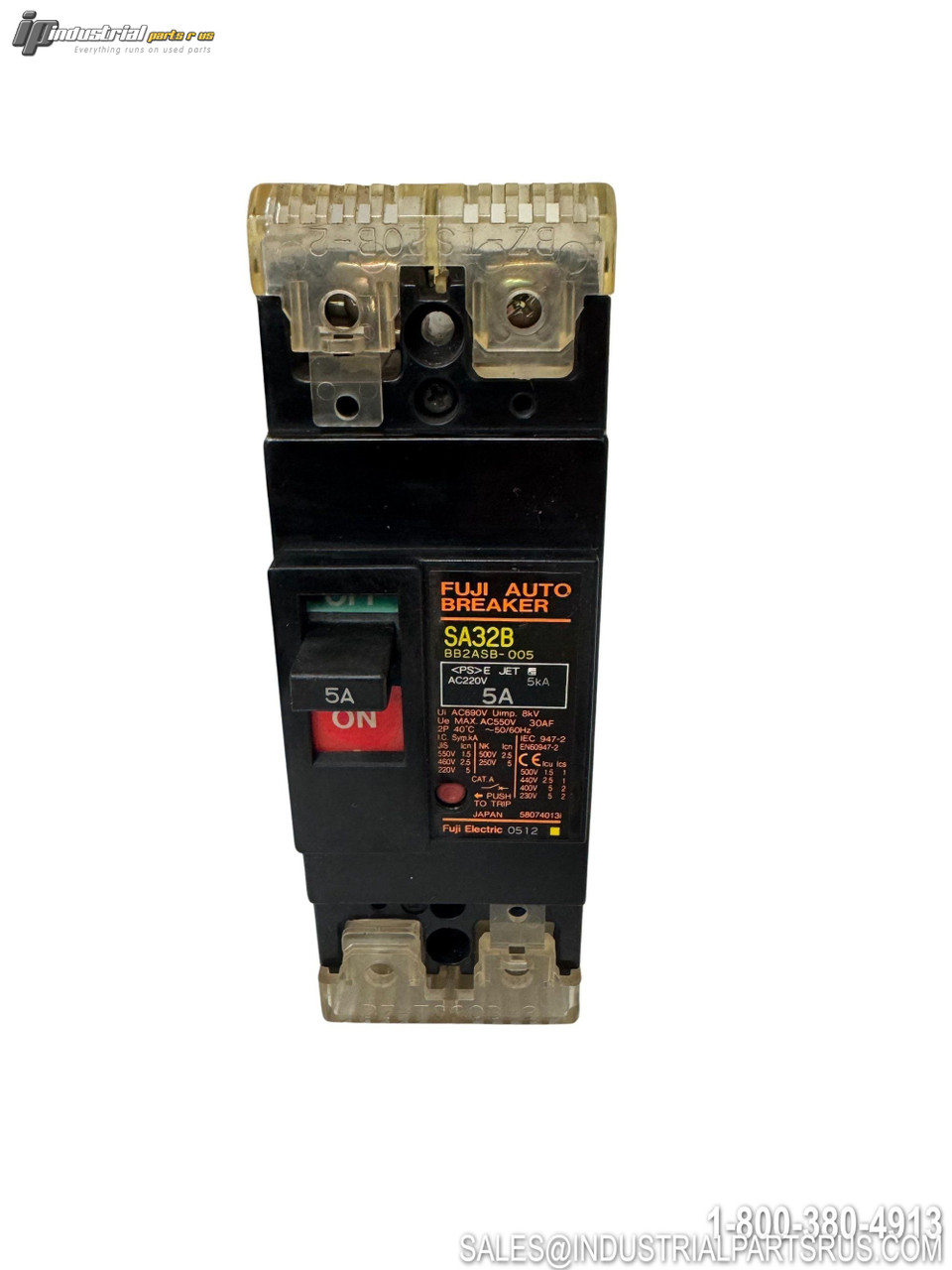

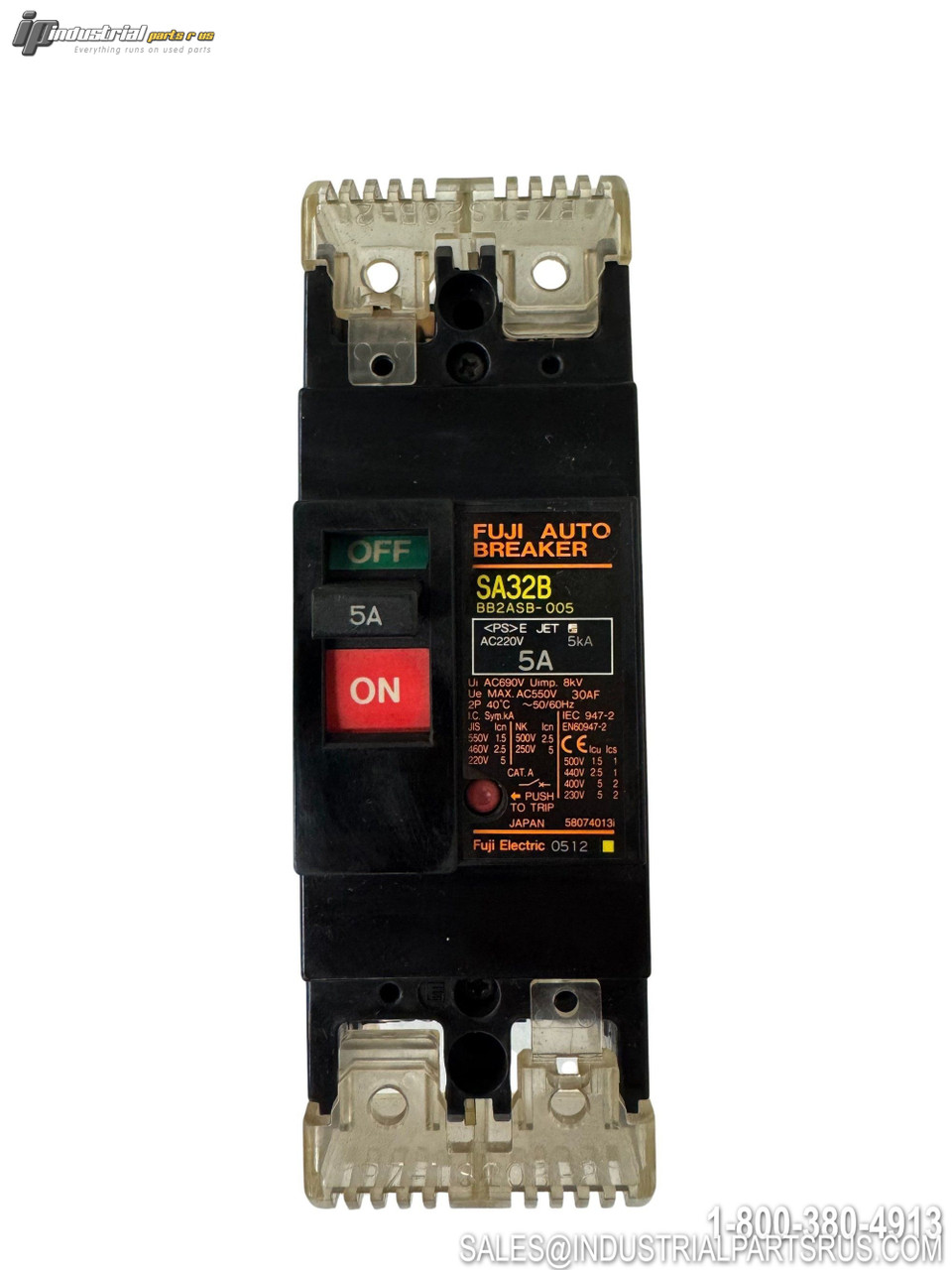

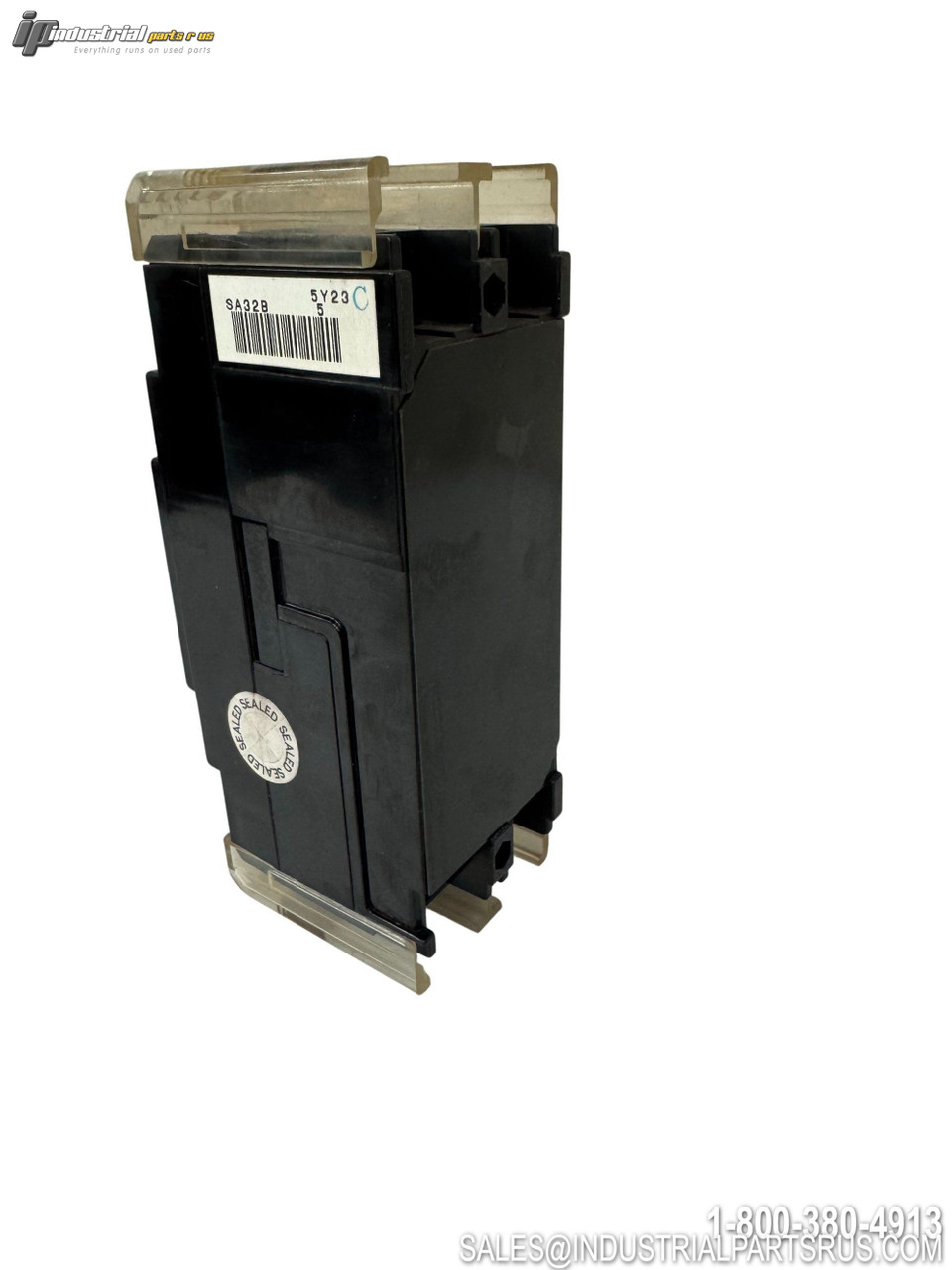

The Fuji Electric SA32B is a compact molded case circuit breaker (MCCB) designed for branch circuit protection in industrial and commercial applications. This 5A, 2-pole unit provides reliable overload and short-circuit protection via a thermal-magnetic trip mechanism, and is rated for operation up to 550V AC. It complies with JIS and IEC 60947-2 standards and carries NK certification, making it suitable for a wide range of global installations. The breaker features screw terminal connections, a toggle-style actuator with ON/OFF indicator, and a push-to-trip test button for manual verification.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model / Part Number | SA32B 5A |
| Alternate Part Number | BB2ASB-005 |
| Product Type | Molded Case Circuit Breaker (MCCB) |
| Rated Current | 5 A |
| Number of Poles | 2P (2-Pole) |
| Rated Voltage | AC 220V |
| Maximum Voltage Rating | 550V AC |
| Rated Insulation Voltage (Ui) | 690V AC |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Frequency | 50/60 Hz |
| Interrupting Capacity @ 220V | 5 kA |
| Interrupting Capacity @ 460V | 2.5 kA |
| Interrupting Capacity @ 550V | 1.5 kA |
| Trip Type | Thermal-Magnetic |
| Actuator Type | Toggle Switch with ON/OFF Indicator |
| Push-to-Trip | Yes (Manual Test Button) |
| Mounting Type | Panel Mount |
| Operating Temperature | -10°C to +40°C (Reference: 40°C Ambient) |
| Standards / Certifications | JIS, IEC 60947-2, NK Certified |
| Category | CAT.A |
| Manufacturer | Fuji Electric |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Panel Mount
Current Rating 5 A
Material Thermoplastic Molded Case (Glass-Filled Polyamide)
Manufacturer Fuji
Part Number SA32B 5A
Shelf J-8
Model SA32B 5A
MPN SA32B 5A
Voltage 220 V AC
Type Circuit Breaker
