Product Description

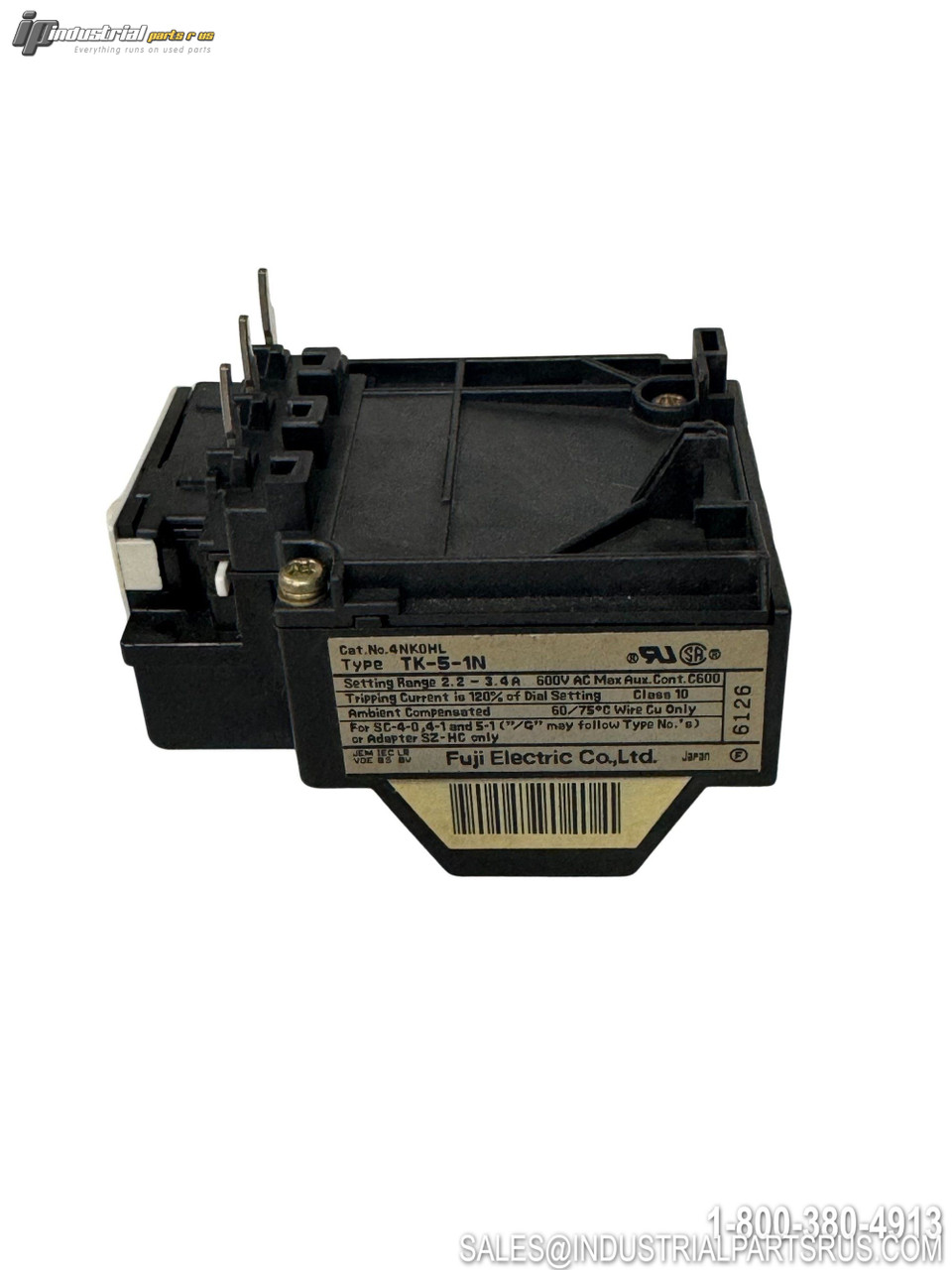

The Fuji TK-5-1N is a thermal overload relay with integrated phase-loss protection designed for three-phase motor protection applications. This relay provides both overload and phase-loss protection, automatically disconnecting the circuit when motor overload or phase imbalance conditions are detected. It features manual reset operation and is compatible with specific Fuji magnetic contactors.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji |
| Model/Part Number | TK-5-1N |
| Type | Thermal Overload Relay |
| Manufacturer | Fuji Electric |
| Frame Size | 5-1N |
| Number of Phases | 3 |
| Number of Poles | 3 |
| Phase Loss Protection | Yes |
| Reset Type | Manual |
| Compatible Contactors | SC-4-0, SC-4-1, SC-5-1 |
| Connection Type | 3-Pin |
| Current Range | See label for specific range |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps See label
Manufacturer Fuji
Part Number TK-5-1N
Shelf K-46
Model TK-5-1N
MPN TK-5-1N
Type Overload Relay
