Product Description

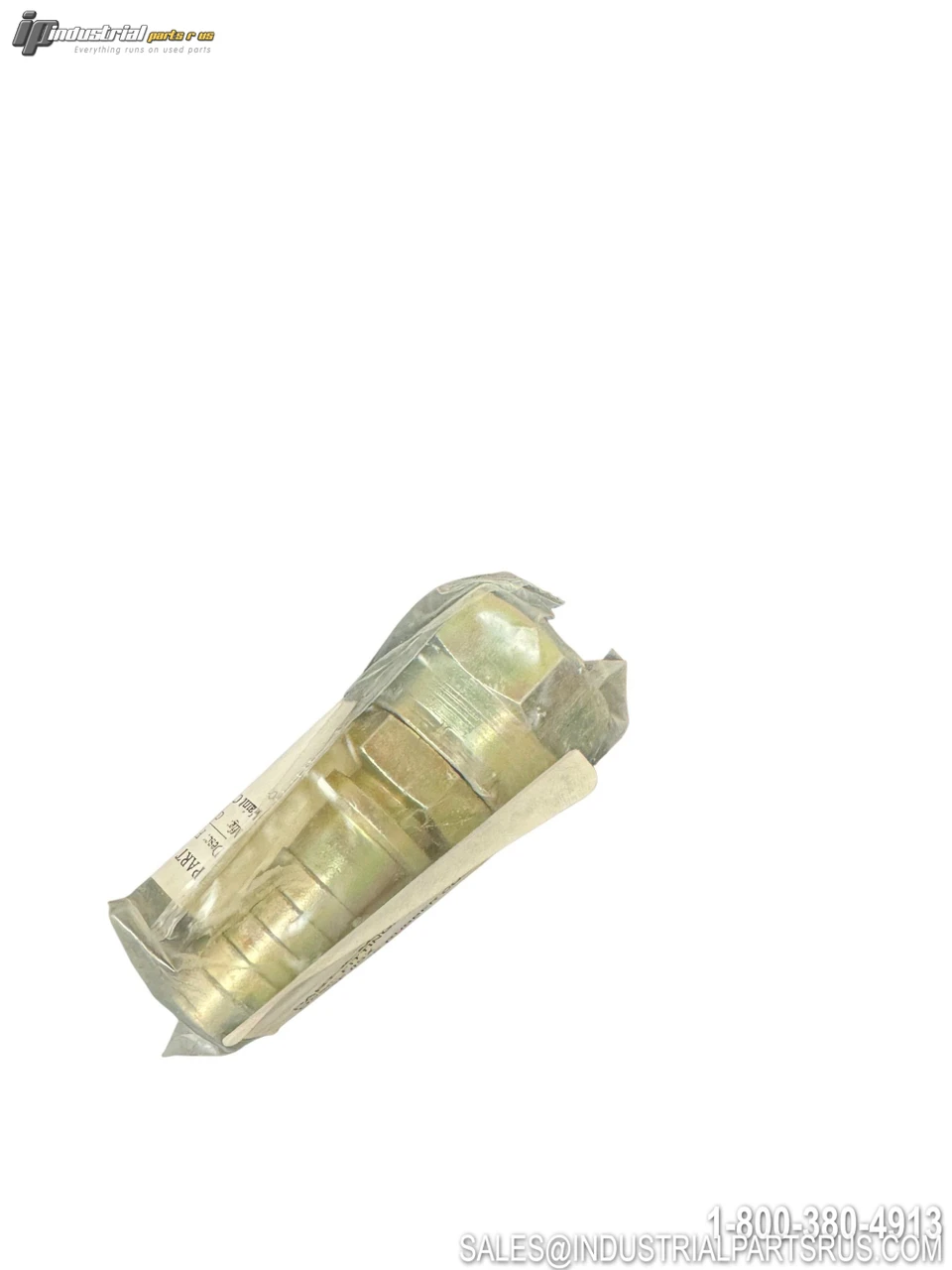

The Gates 10-12FJISX is a MegaCrimp® series hydraulic crimp-on hose fitting featuring a Female Japanese Industrial Standard (JIS) 30° flare swivel end. It is designed for use with 5/8" inside diameter (dash-10) wire braid hydraulic hose and connects to equipment ports using a 3/4-14 BSP (British Standard Pipe Parallel) thread, conforming to JIS B 0202 thread form. The fitting uses Gates' patented "C" insert pre-assembled ferrule technology to evenly distribute crimping forces for a concentric, leak-free seal across various hose outside diameters on both 1-wire and 2-wire braid hydraulic hose.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Gates |
| Model / Part Number | 10-12FJISX |
| Product Series | MegaCrimp® |
| Fitting Type | Female Japanese Industrial Standard (JIS) 30° Flare Swivel |
| Fitting Shape / Configuration | Straight |
| Connection Type 1 (Hose End) | Crimp-On |
| Connection Type 2 (Port End) | Female JIS 30° Flare Swivel |
| Hose Dash Size | -10 |
| Hose Inside Diameter | 5/8 in (15.9 mm) |
| Terminal / Thread Dash Size | -12 |
| Thread Size | 3/4-14 BSP (JIS B 0202 Parallel) |
| Mating / Flare Angle | 30° |
| Seal Type | Mated Angle (Metal-to-Metal 30° Cone Seat) |
| Swivel | Yes |
| Material | Steel |
| Finish / Coating | TuffCoat™ |
| Standards Met | ASTM B-117, SAE, JIS B 0202 |
| Compatible Hose Types | Various ODs on 1-Wire & 2-Wire Braid Hydraulic Hose |
| Fitting Connection Family | Crimp-On to JIS |
| Number of Ports | 2 |
| Port Gender | Female (both ports) |
| Manufacturer | Gates Corporation |
