Product Description

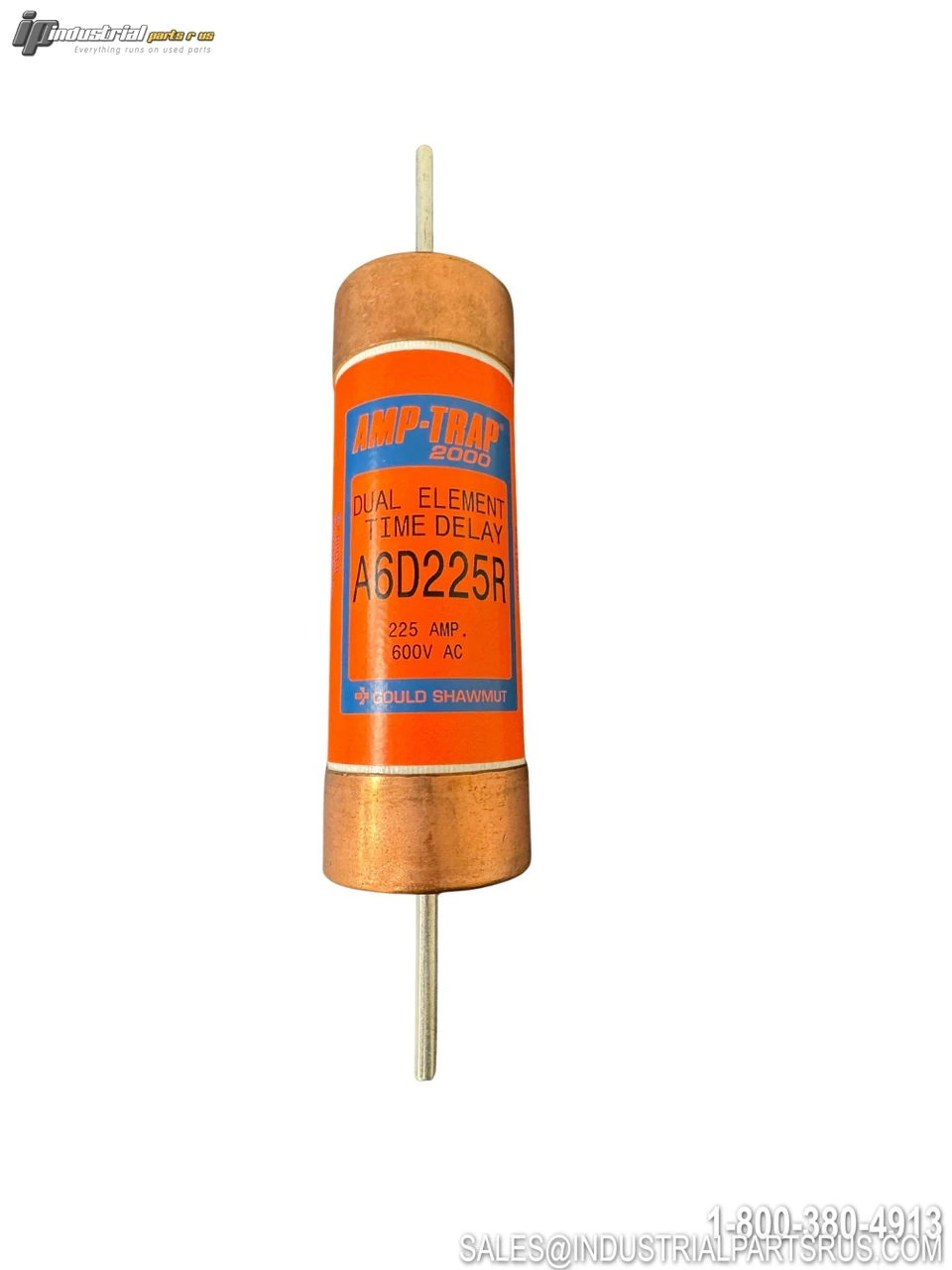

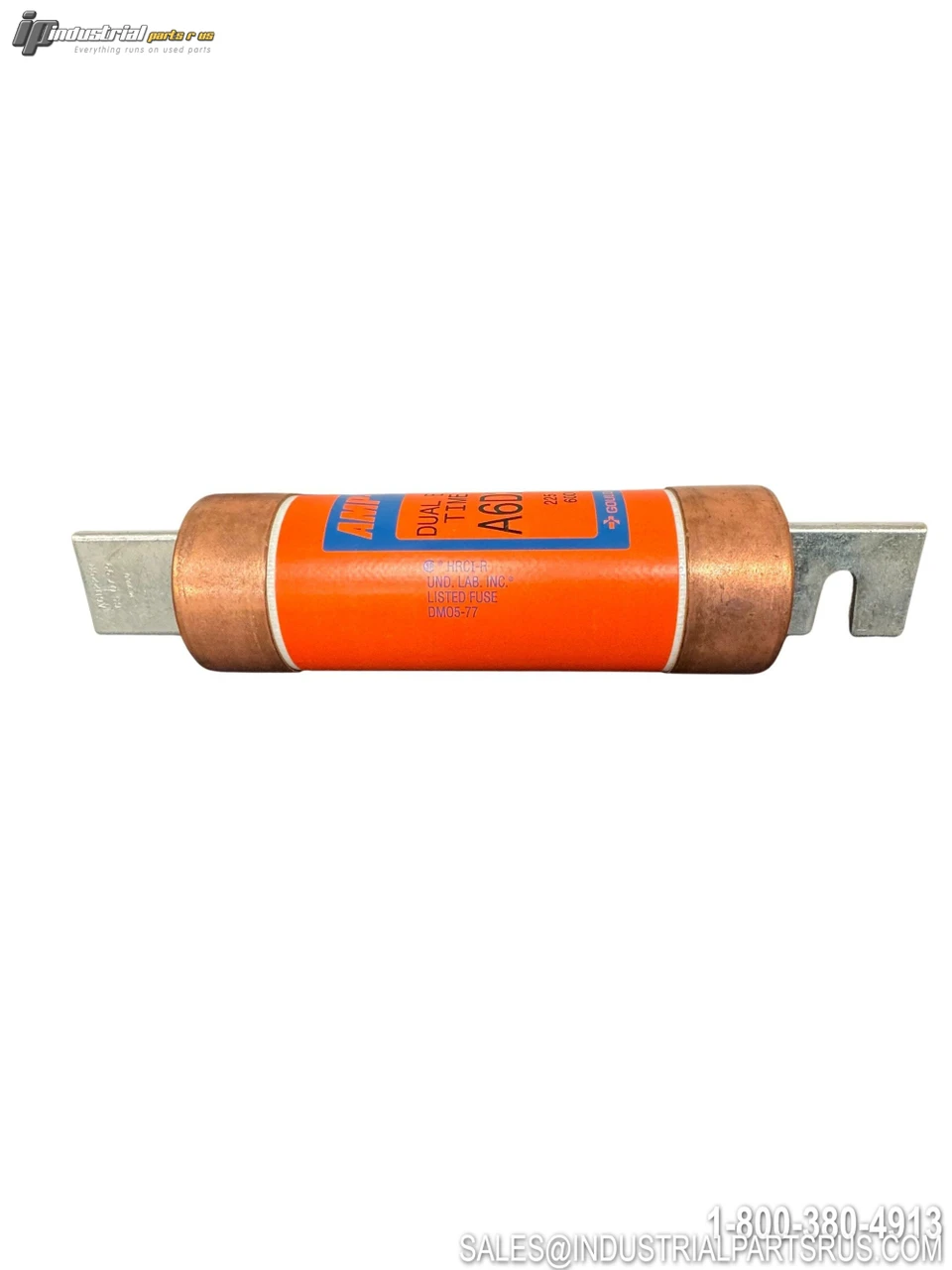

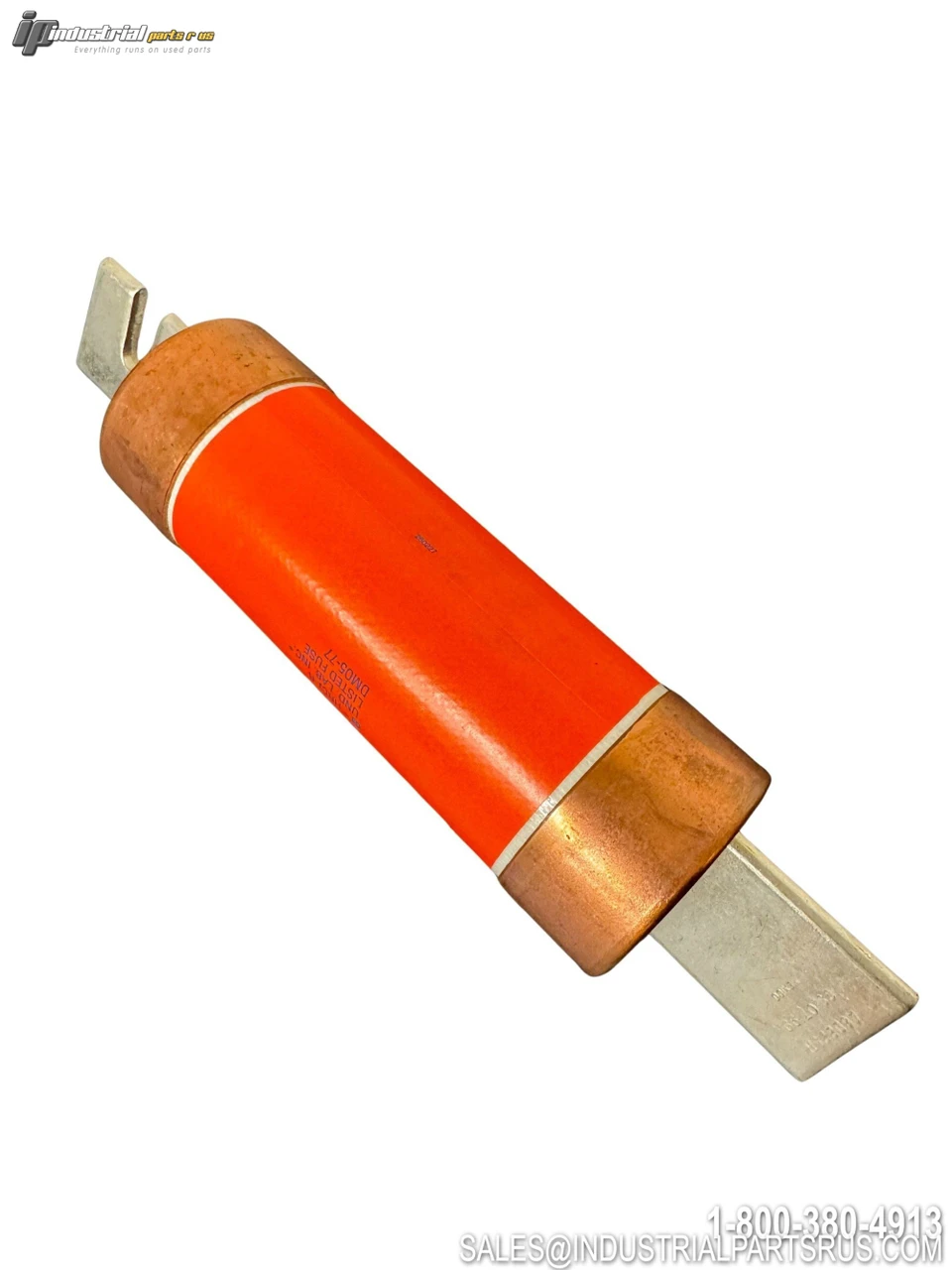

The Gould Shawmut A6D225R is a 225-ampere, 600V AC/DC, Class RK1 time-delay current-limiting fuse from the Amp-Trap 2000® series. It features a SmartSpot® visual open-fuse indicator and a rejection-style blade terminal design that prevents installation errors. This fuse provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving motor and non-motor loads, offering time-delay characteristics for motor inrush currents while delivering fast-acting short circuit protection. Gould Shawmut is now Mersen (formerly Ferraz Shawmut).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Gould Shawmut (Mersen / Ferraz Shawmut) |
| Model / Part Number | A6D225R |
| Series | A6D-R (Amp-Trap 2000®) |
| Ampere Rating | 225 A |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 600 VDC |
| Fuse Class | Class RK1 |
| Speed / Characteristic | Time Delay / Current Limiting |
| AC Interrupting Rating | 200,000 AIC (200 kA) |
| DC Interrupting Rating | 100,000 AIC (100 kA) |
| Terminal / Connection Type | Blade |
| Terminal Material | Tin-Plated Copper |
| Mounting Type | Clip |
| Body / Insulating Material | Fiberglass / PolyTube |
| Indication System | Yes — SmartSpot® Visual Open Fuse Indicator |
| Diameter | 2.56 in (2-9/16") / 65.02 mm |
| Overall Length | 11.63 in (11-5/8") / 295.4 mm |
| Blade / Ferrule Length | 1.875 in |
| Blade Height | 1.625 in |
| Blade Width | 0.250 in |
| Product Weight | 3.22 lb (1.46 kg) |
| Frequency | 50/60 Hz |
| UL Approval | UL Listed — Standard 248-12, File E2137 |
| CSA Approval | CSA Certified — Standard C22.2 No. 248.12 |
| Color | Orange |
| Sell Pack Quantity | 1 EA |
| Bussmann Equivalent | LPS-RK-SP (225A) |
