Product Description

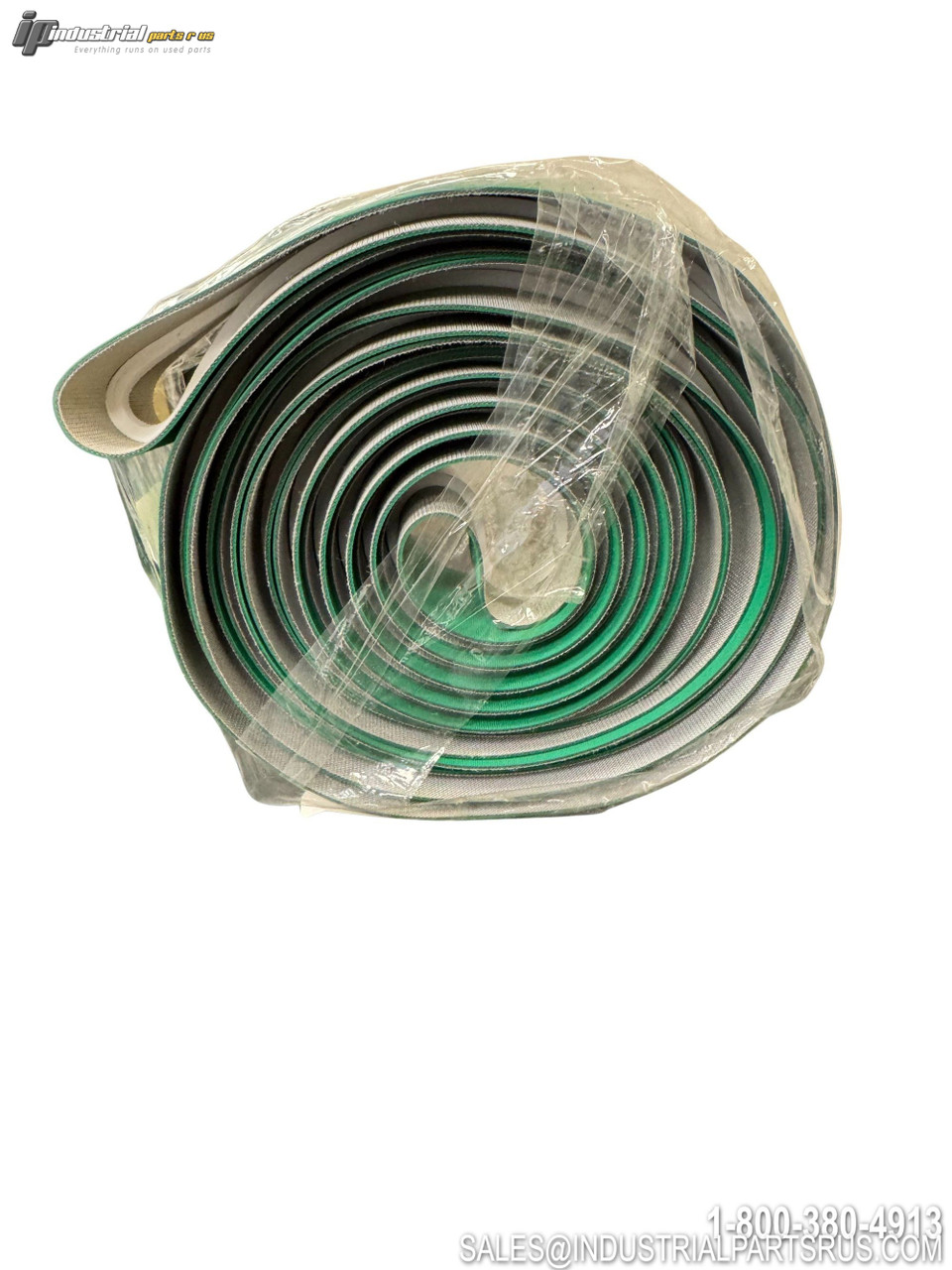

The Habasit HAT-5E is a high-duty elastomer-covered conveyor and processing belt featuring an Acrylonitrile-Butadiene-Rubber (NBR) conveying surface over a 2-ply Polyester (PET) traction layer body. This specific cut measures 50mm wide by 6680mm in length and is designed for demanding industrial applications including materials handling, packaging, paper converting, and paper manufacturing. The belt delivers a consistent coefficient of friction, abrasion resistance, and dimensional stability, and supports adhesive-free (Flexproof) joining.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Habasit |
| Model / Part Number | HAT-5E belt 50mm X 6680mm |
| Belt Type | Flat Belt (Elastomer Covered Conveying/Processing Belt) |
| Width | 50 mm (1.97 in) |
| Length | 6680 mm (263.0 in) |
| Thickness | 1.5 mm (0.06 in) |
| Belt Weight (Mass) | 1.8 kg/m² (0.37 lb/sq ft) |
| Conveying Side Material | Acrylonitrile-Butadiene-Rubber (NBR) |
| Conveying Side Surface | Rough / Coarse Textile Structure |
| Conveying Side Property | Adhesive |
| Conveying Side Color | Green |
| Traction Layer Material | Polyester (PET) fabric |
| Number of Fabric Plies | 2 |
| Pulley Side Material | Polyester (PET) fabric – Impregnated |
| Pulley Side Color | Gray |
| Pulley Side Property | Non-adhesive |
| Minimum Pulley Diameter | 25 mm (0.98 in) |
| Tensile Force for 1% Elongation (k1% static) | 6.5 N/mm (37 lbf/in) |
| Admissible Tensile Force per Unit Width | 12 N/mm (69 lbf/in) |
| Coefficient of Friction – Pulley Side / Steel Driving Pulley | 0.15 |
| Coefficient of Friction – Pulley Side / Friction Cover Pulley | 0.35 |
| Coefficient of Friction – Pickled Steel Slider Bed | 0.20 |
| Min. Operating Temperature (Continuous) | 0°C (32°F) |
| Max. Operating Temperature (Continuous) | 80°C (176°F) |
| Joining Method | Flexproof (Adhesive-Free) |
| Antistatic | Yes |
| Slider Bed Suitable | Yes |
| Carrying Rollers Suitable | Yes |
| Nosebar / Knife-Edge Suitable | No |
| Metal Detector Suitable | No |
| Food Suitability (FDA/EU) | No |
| Mode of Conveyance | Horizontal, Inclined, Declined, Vertical |
| Product Group | High Duty Conveyor and Processing Belts |
| Product Sub-Group | Rubber (Elastomer Covered) Conveyor and Processing Belts |
| Industry Segments | Materials Handling, Packaging, Paper Converting, Paper Manufacturing, Paper Printing & Finishing |
| Belt Applications | General Conveying, Machine Tape, Paper Handling, Weighing Belt |
| Habasit Item Number | H800036112 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Habasit
Part Number HAT-5E BELT 50MM X 6680MM
Shelf K-35
Model HAT-5E BELT 50MM X 6680MM
MPN HAT-5E BELT 50MM X 6680MM
Type Flat Belt
