Product Description

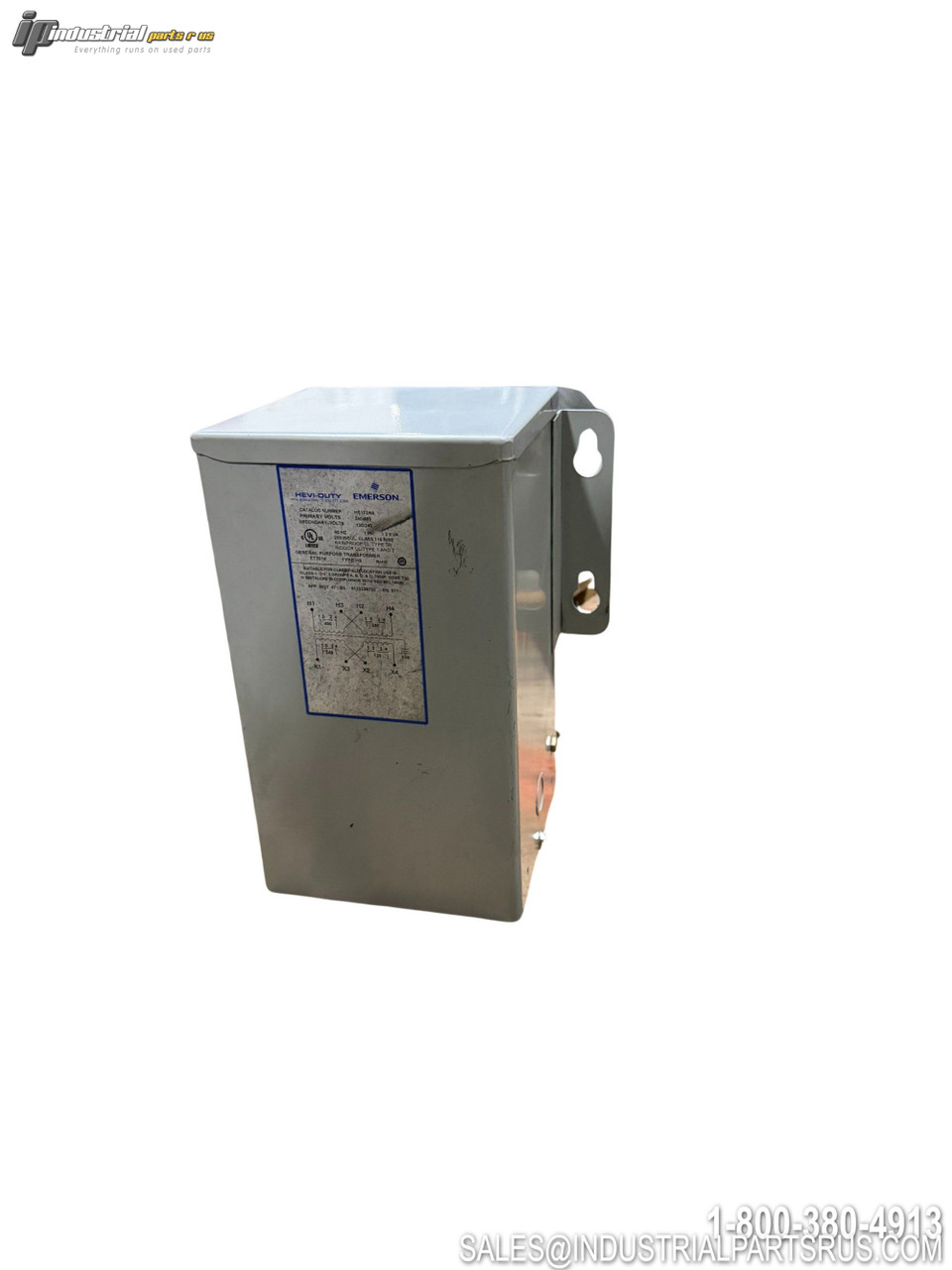

The Hevi-Duty (SolaHD) HS1F2AS is a 2 kVA single-phase, non-ventilated encapsulated automation transformer designed for use in hazardous locations and harsh industrial environments. It features a rolled steel NEMA 3R enclosure with electrostatic shielding and is encapsulated with electrical grade silica and epoxy for maximum protection against dust, moisture, shock, and vibration. The transformer accepts a 240/480 VAC primary input and provides a 120/240 VAC secondary output, with wire lead connections and wall-mounting hardware included.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hevi-Duty / SolaHD |
| Model / Part Number | HS1F2AS |
| Product Type | Non-Ventilated Encapsulated Automation Transformer |
| Series | HS1 |
| kVA Rating | 2 kVA (2000 VA) |
| Phase | 1-Phase |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Primary Current (Full Load) | 8.33 A (240V) / 4.17 A (480V) |
| Secondary Current (Maximum) | 16.7 A (120V) / 8.33 A (240V) |
| Frequency | 60 Hz |
| Insulation Class | 200°C (UL Class) |
| Temperature Rise | 115°C |
| Enclosure Type | NEMA 3R |
| Housing Material | Rolled Steel |
| Winding Material | Aluminium |
| Shielded | Yes (Electrostatic) |
| Encapsulation | Electrical grade silica and epoxy |
| Connection Type | Wire Lead (Copper) |
| Mounting Type | Wall Mount |
| Dimensions (H x W x D) | 13 in x 10 in x 7 in |
| Hazardous Location Rating | Class I, Division 2, Group A, B, C, D — NEC 501.100(B) |
| Certifications | UL Listed (cULus), CSA Certified, CE Marked |
| UL File Numbers | E25872 / E77014 |
| Standards | UL 1561, UL 506, CSA C22.2 No. 47 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Hevi-Duty
Enclosure Type NEMA 3R
Part Number HS1F2AS
Shelf I-18
Model HS1F2AS
MPN HS1F2AS
Type Transformer
