Product Description

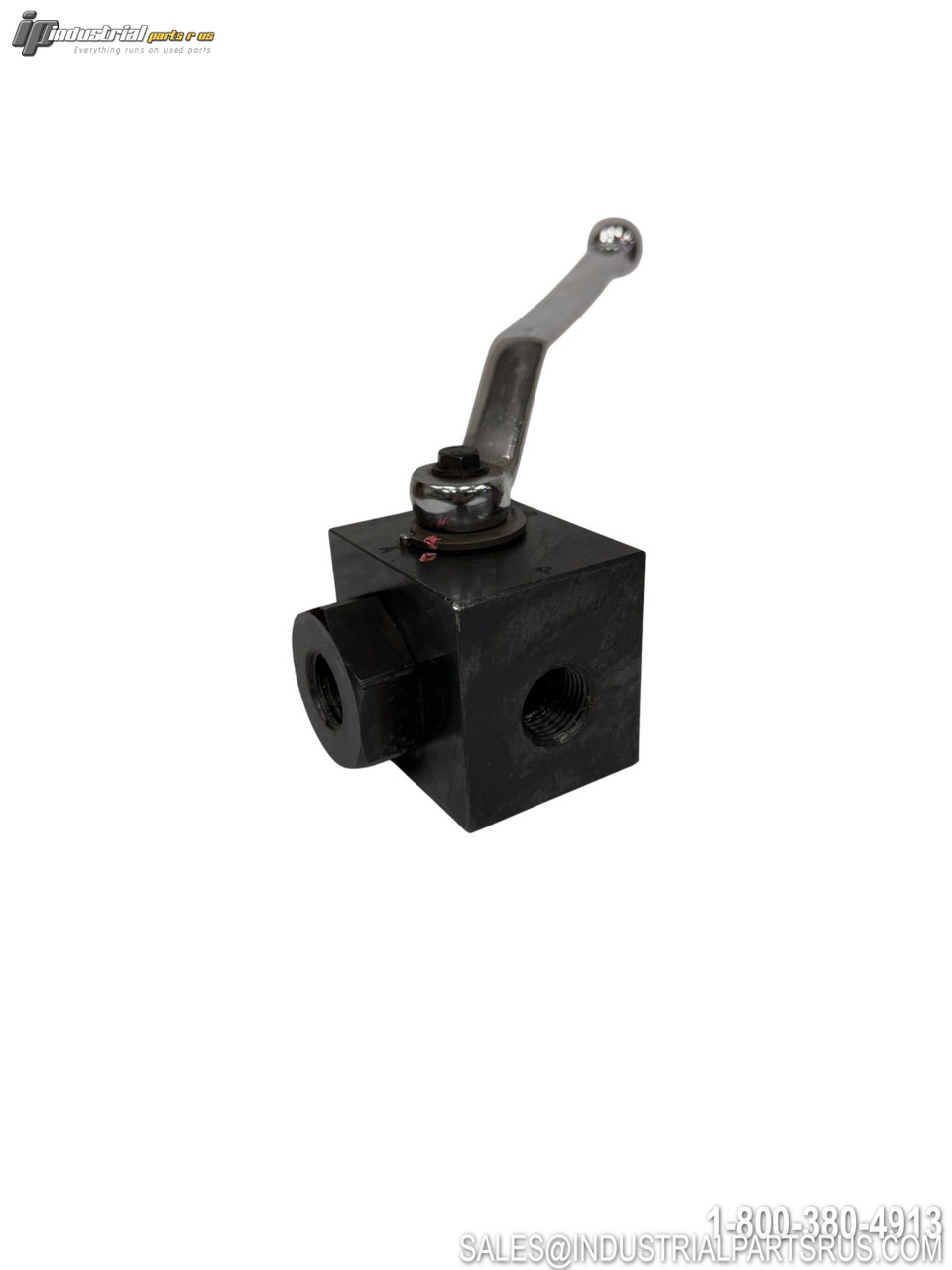

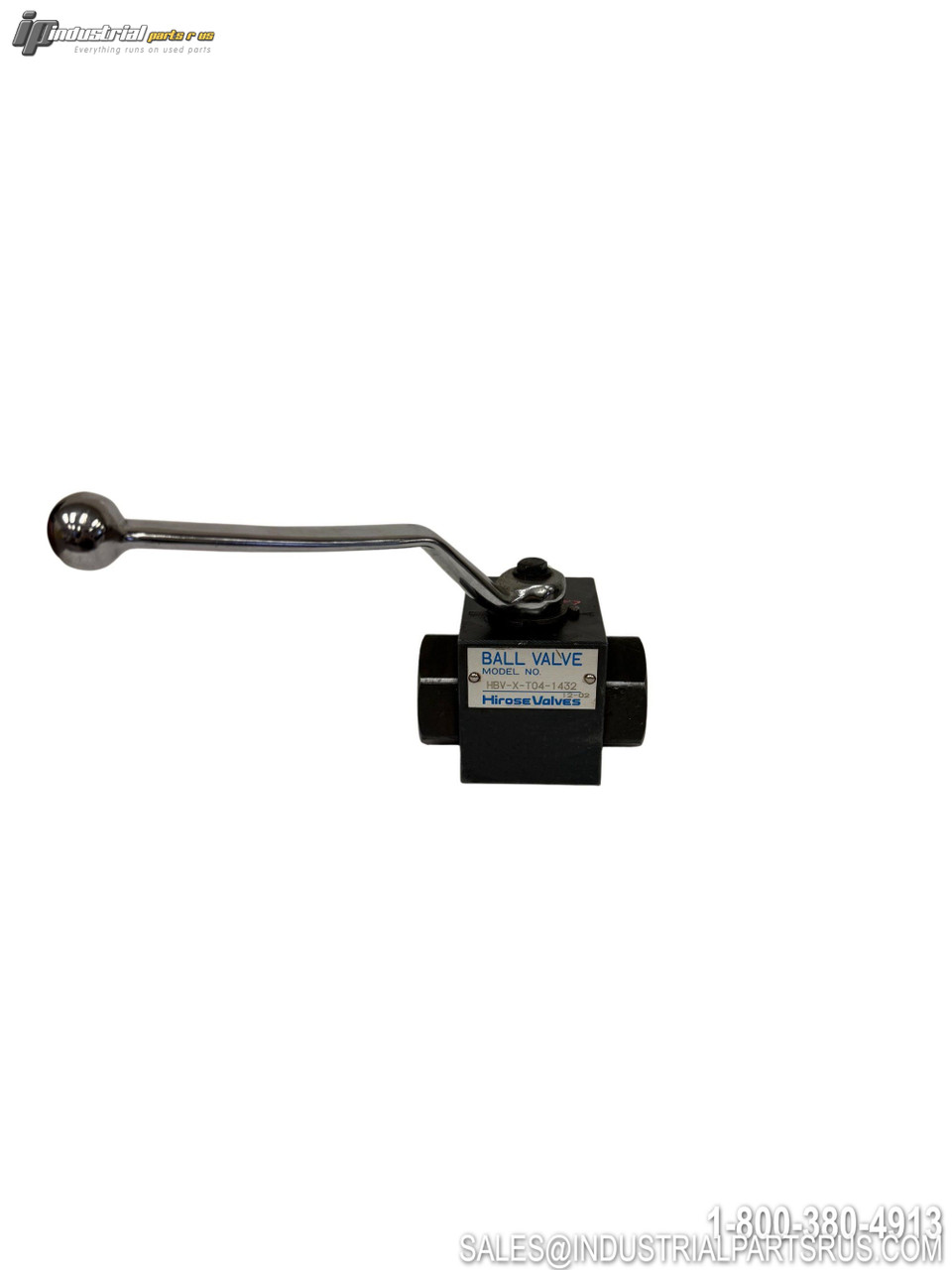

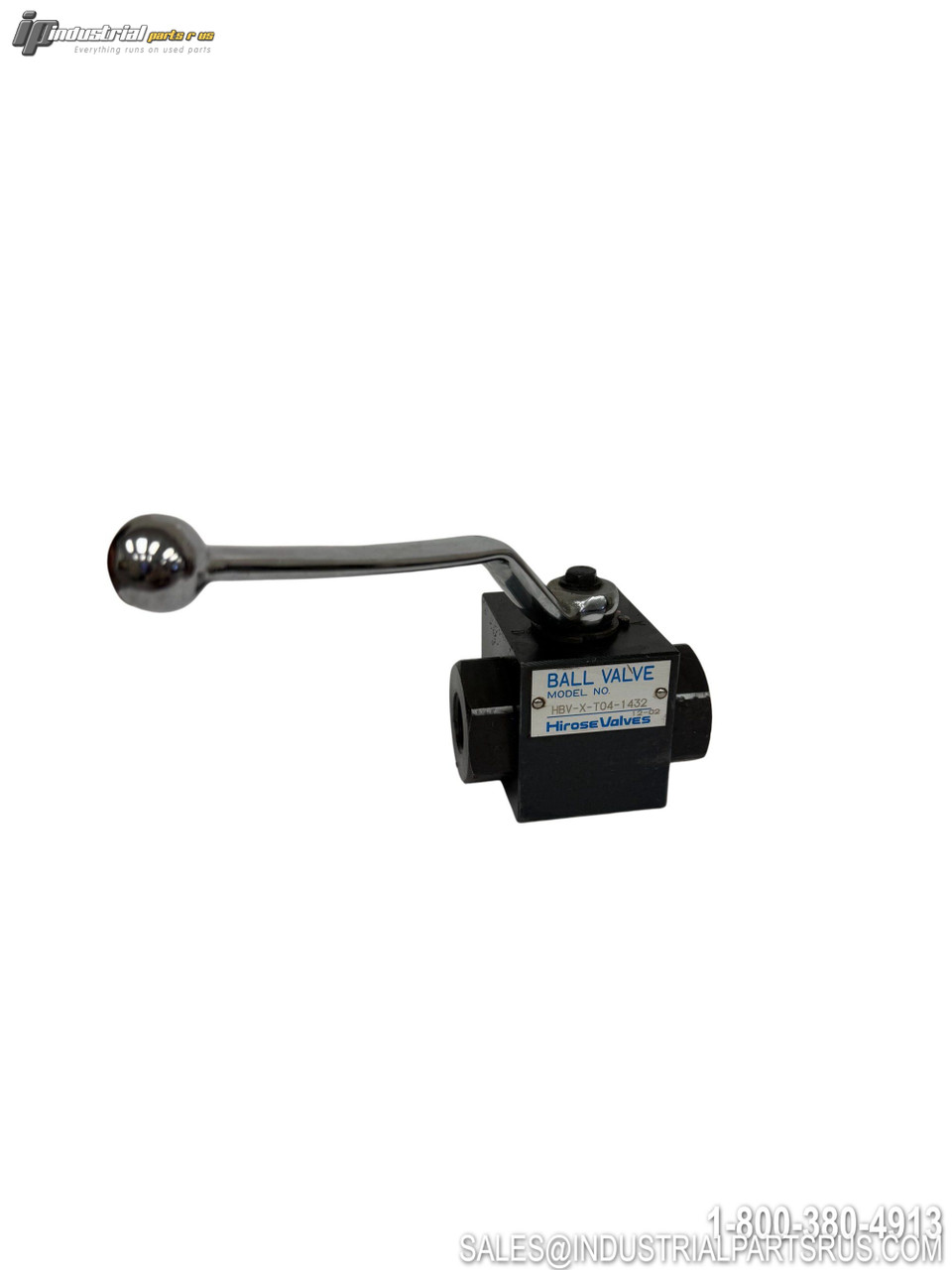

The Hirose Valves HBV-X-T04-1432 is a screw-in (threaded) 3-port, 2-position high-pressure hydraulic ball valve manufactured by Hirose Valves Industry Co., Ltd. (廣瀬バルブ工業株式会社). It is designed exclusively for hydraulic circuits and switches fluid flow direction with a simple 90° lever handle rotation. The valve features a precision-finished ball with a specially developed nylon resin seat ring for complete fluid shutoff and significantly reduced flow resistance compared to conventional stop valves.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hirose Valves |
| Model / Part Number | HBV-X-T04-1432 |
| Valve Type | 3-Port 2-Position Ball Valve |
| Series | HBV-X (Screw-In / Threaded Type) |
| Port Connection Size | G1/2 (1/2 inch) |
| Number of Ports | 3 (P, A, B) |
| Number of Positions | 2 |
| Maximum Operating Pressure | 21 MPa (210 kgf/cm²) — P port pressurization |
| Max Pressure (A or B Port Pressurization) | 15 MPa or below |
| Actuation Type | Manual Lever Handle (90° rotation) |
| Connection Type | Threaded / Screw-In (ねじ込み形) |
| Fluid Type | General Mineral-Based Hydraulic Oil |
| Operating Fluid Temperature Range | -15°C to 80°C |
| Fluid Cleanliness Requirement | NAS Class 12 or cleaner |
| Seat / Seal Material | Nylon Resin (seat ring) |
| Body Material | Steel / Iron (高圧ボールバルブ 鉄) |
| Application | Hydraulic Circuit Directional Control |
| Usage Note | Fully open or fully closed only — do not use as throttle valve |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Hirose Valves
Part Number HBV-X-T04-1432
Shelf A-4
Model HBV-X-T04-1432
MPN HBV-X-T04-1432
Type Ball Valve
