Product Description

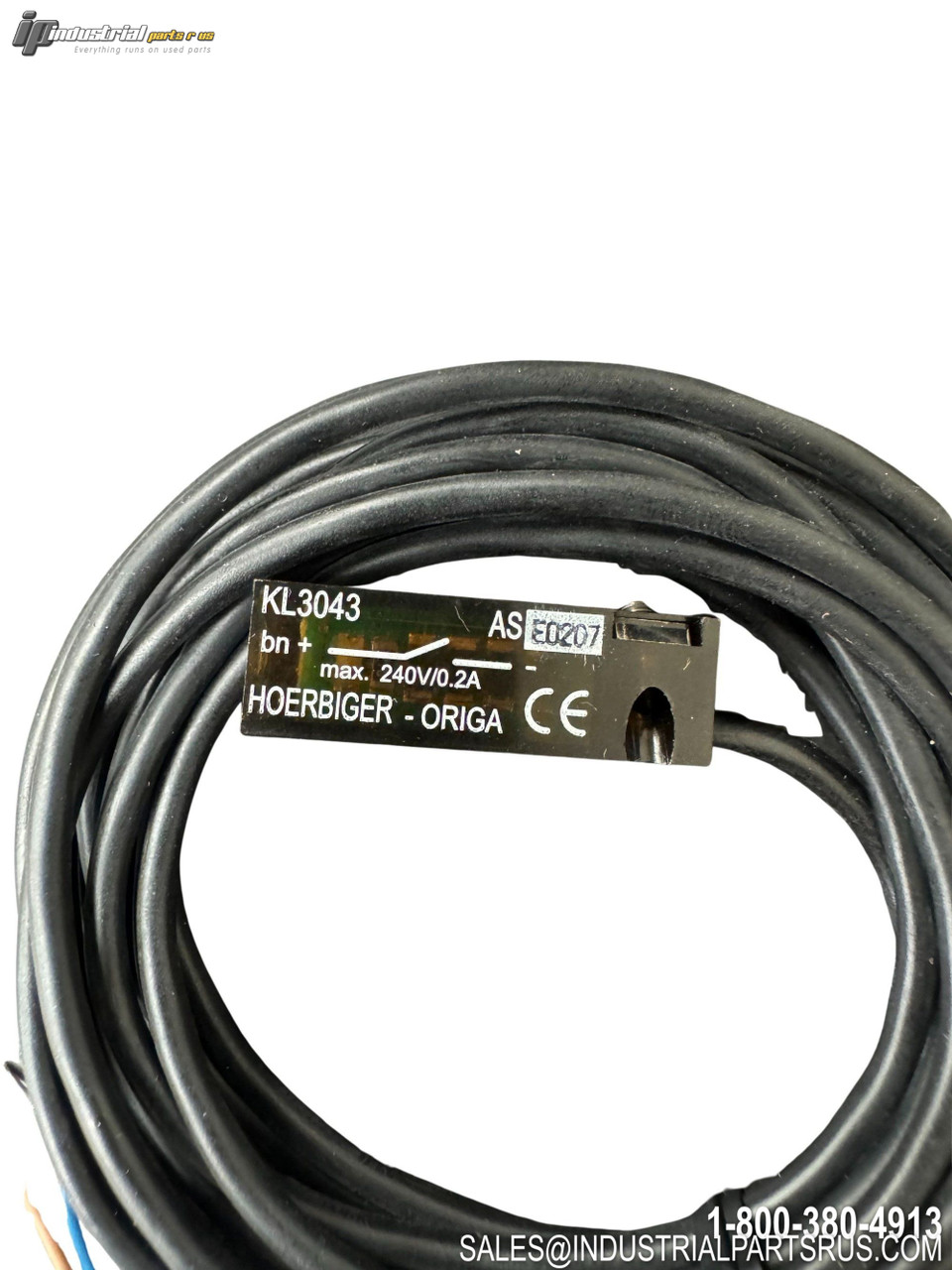

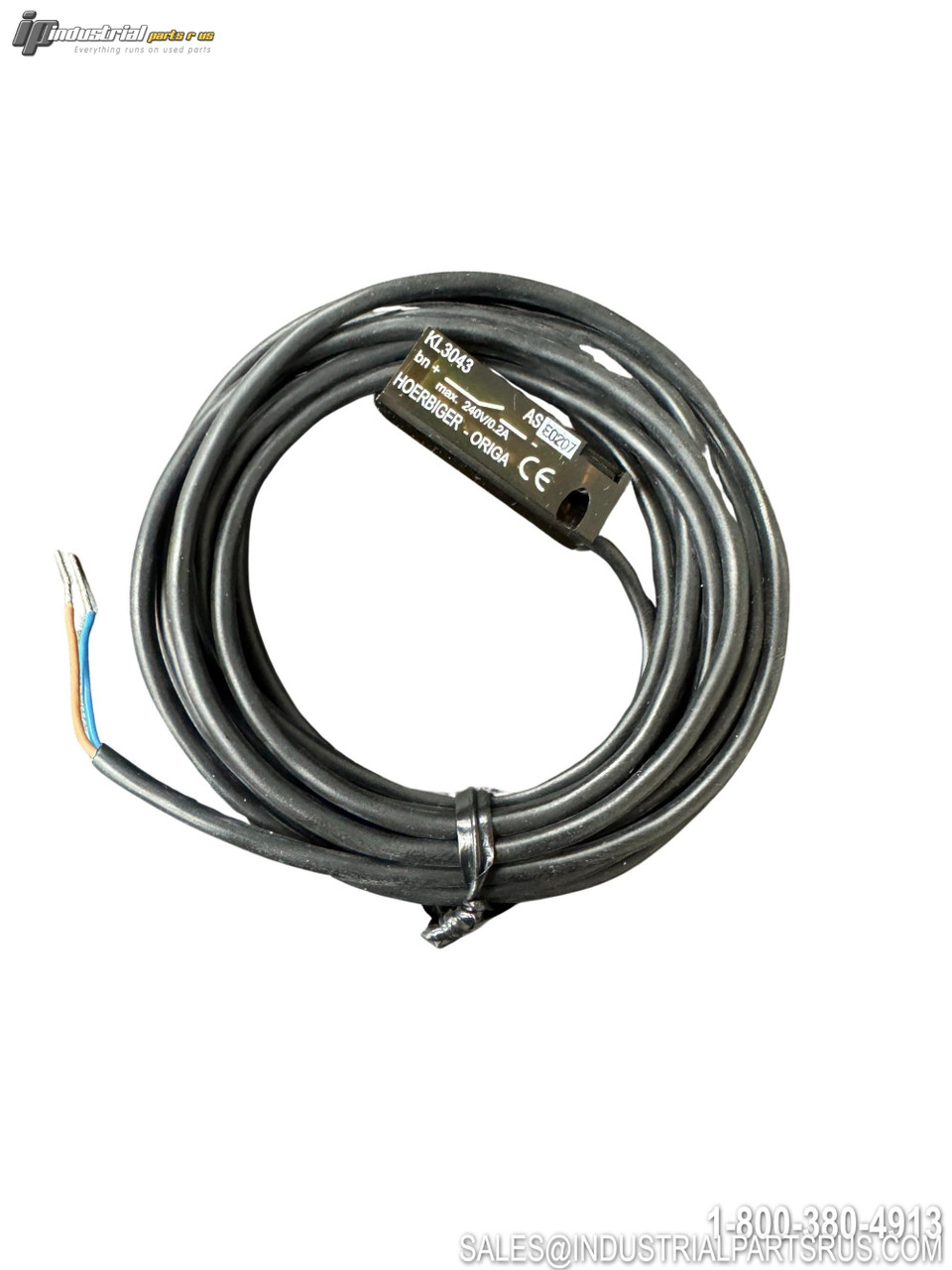

The Hoerbiger-Origa KL3043 is a magnetic reed proximity switch designed for position sensing on Parker Origa pneumatic cylinders and linear actuators. It is a 2-wire, normally open (NO) device with an integrated LED indicator, rated for up to 240V AC/DC at 0.2A, and features an IP67 protection rating for reliable operation in industrial environments. The switch has a nominal sensing distance of 3mm, a rectangular unshielded body style, and relay-type output. It is supplied with a flying lead cable and is groove-mounted directly onto compatible cylinder bodies for piston position detection.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hoerbiger / Hoerbiger-Origa |
| Model / Part Number | KL3043 |
| Product Type | Magnetic Reed Proximity Switch / Sensor |
| Manufacturer Series | KL |
| Switch Type | Reed Switch |
| Operation | Normally Open (NO) |
| Supply / Switching Voltage (Max) | 240V AC/DC |
| Max Current Rating | 0.2A |
| Number of Wires | 2-Wire |
| LED Indicator | Yes |
| IP Rating | IP67 |
| Mounting Type | Groove / Cable Mount |
| Connection Type | Cable (Fly Lead) |
| Min Operating Temperature | -25°C |
| Max Operating Temperature | 75°C |
| Compatible Equipment | Parker Origa Pneumatic Cylinders / Linear Actuators |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Relay
Sensor Type Magnetic Reed Switch
Manufacturer Hoerbiger
Enclosure Type IP67
Part Number KL3043
Shelf Q-9
Model KL3043
MPN KL3043
Type Proximity Sensor
