Product Description

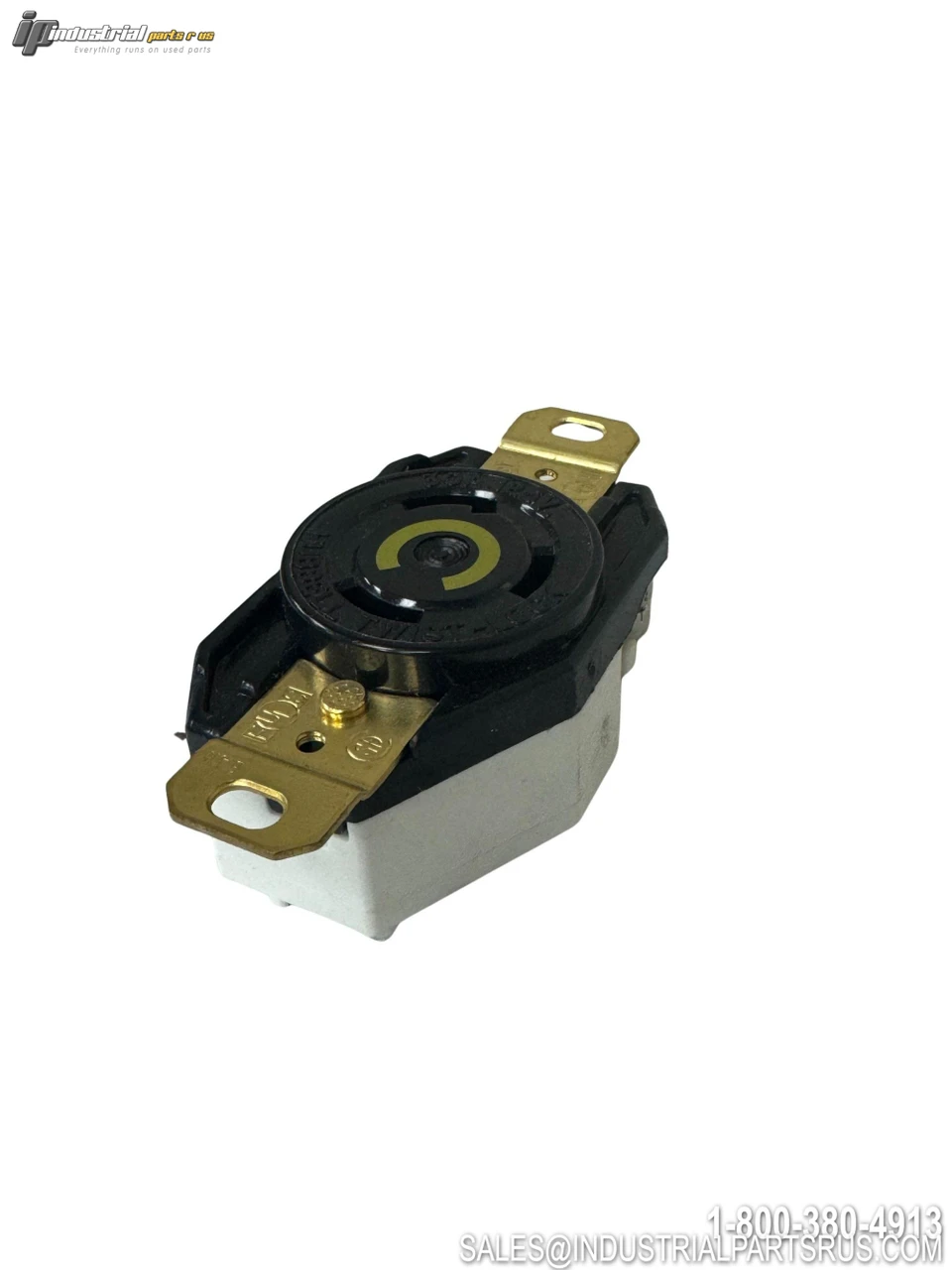

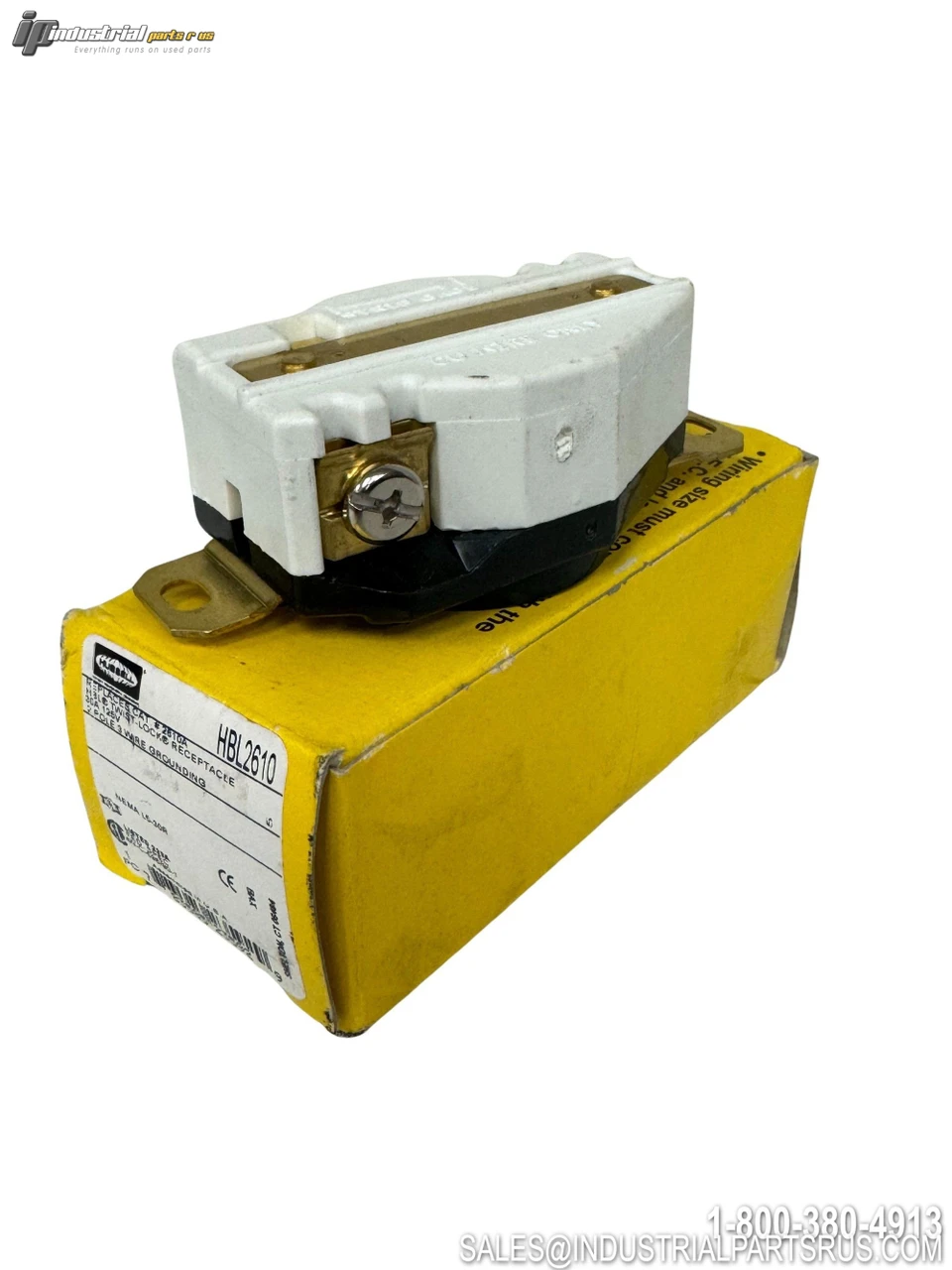

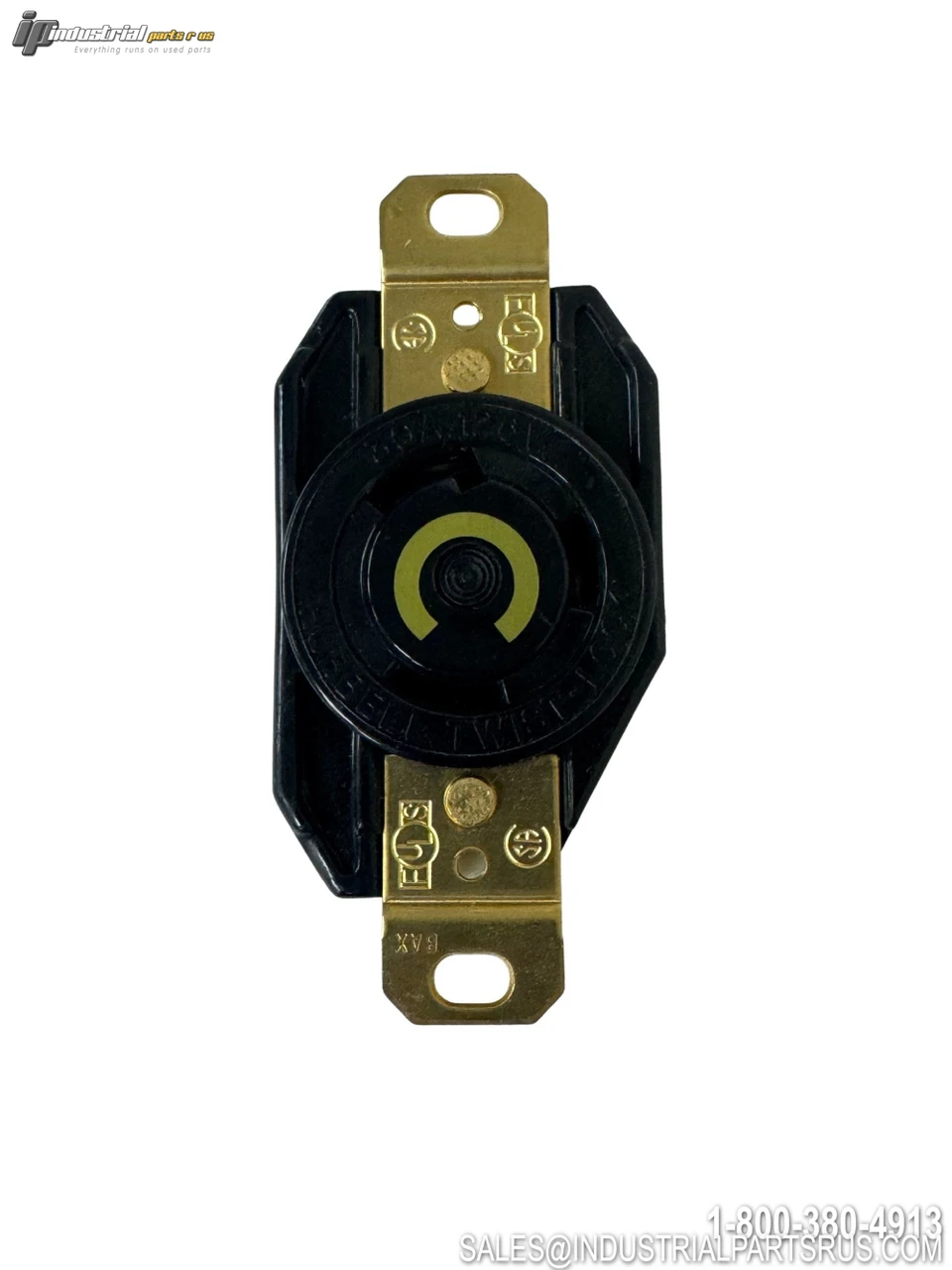

The Hubbell HBL2610 is an industrial-grade Twist-Lock® single flush receptacle rated at 30A, 125V AC with a NEMA L5-30R configuration. It features a high-impact, abuse-resistant black nylon face and a 2-pole, 3-wire grounding design with screw terminal connections, accommodating back and side wiring. This receptacle is part of Hubbell Wiring Device-Kellems' HBL series and is UL Listed, CSA certified, and RoHS compliant for heavy-duty industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hubbell Wiring Device-Kellems |
| Model / Part Number | HBL2610 |
| Product Type | Twist-Lock Industrial Flush Receptacle |
| NEMA Configuration | L5-30R |
| Amperage | 30A |
| Voltage | 125V AC |
| Horsepower Rating | 2 HP |
| Wattage | 3750W |
| Number of Poles | 2-Pole |
| Number of Wires | 3-Wire Grounding |
| Number of Phases | 1 Phase |
| Connection Type | Screw Terminal |
| Wiring Method | Back and Side Wired |
| Conductor (Wire) Size | 12–8 AWG |
| Face Material | High-Impact Nylon |
| Base Material | Thermoplastic / Nylon Polyester (RTP) |
| Color | Black |
| Mounting Type | Flush / Recessed |
| Mounting Hardware Material | All-Brass (Mounting & Grounding System) |
| Grade | Industrial |
| Series / Sub-Brand | Twist-Lock® / Insulgrip |
| Enclosure / Environment Rating | NEMA 4X/12/IP20 (Indoor Dry; Protected) |
| Operating Temperature | -40°C to +75°C |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions (L x W x H) | 3.28 x 1.70 x 1.31 in |
| Certifications / Standards | UL 498, CSA C22.2 No. 42, Federal Spec W-C-596, NEMA WD1/WD5, RoHS Compliant |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Full Load Amps 30A
Manufacturer Hubbell
Enclosure Type NEMA 4X/12/IP20
Part Number HBL2610
Shelf K-4
Model HBL2610
MPN HBL2610
Type Disconnect
