Product Description

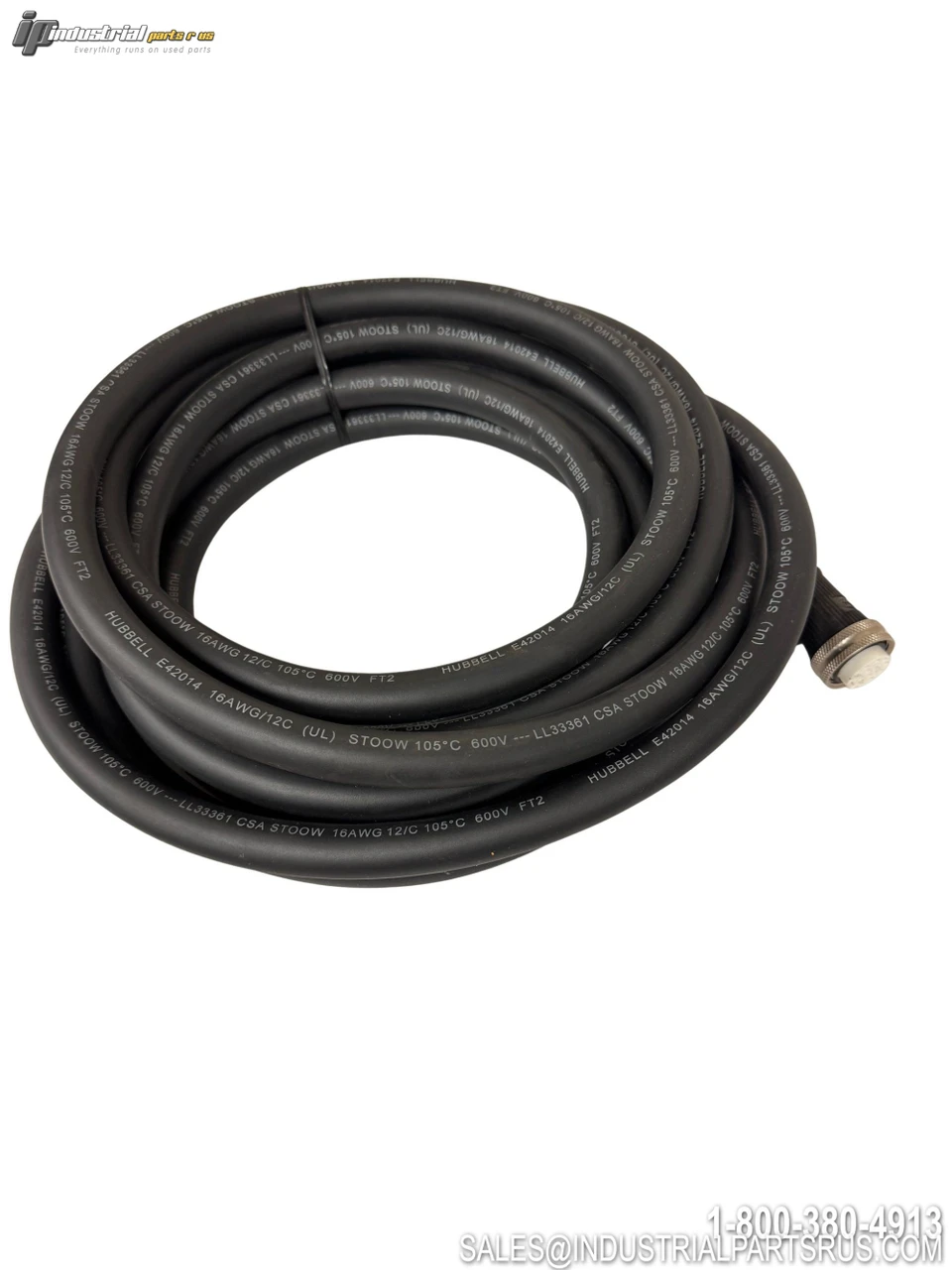

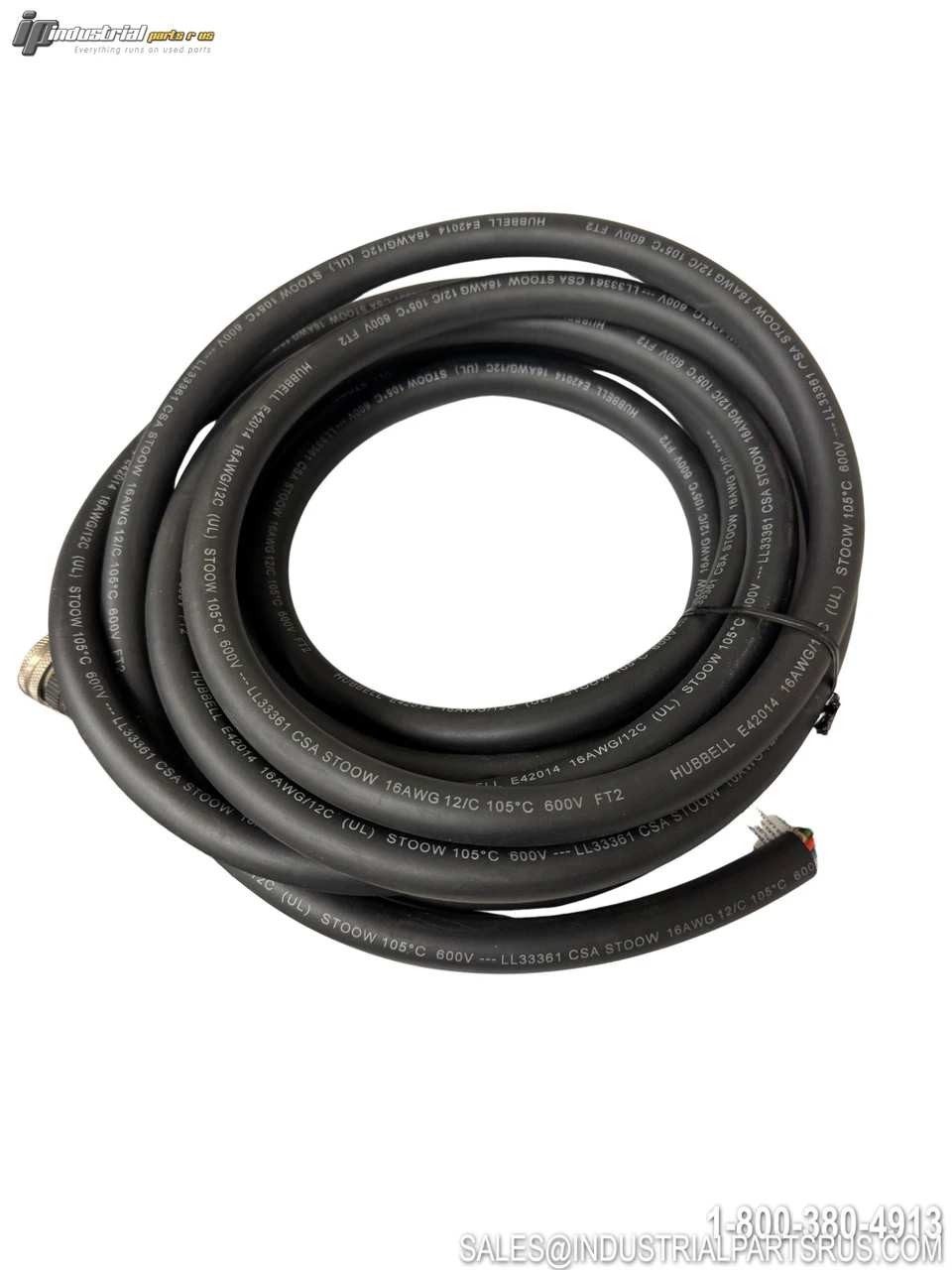

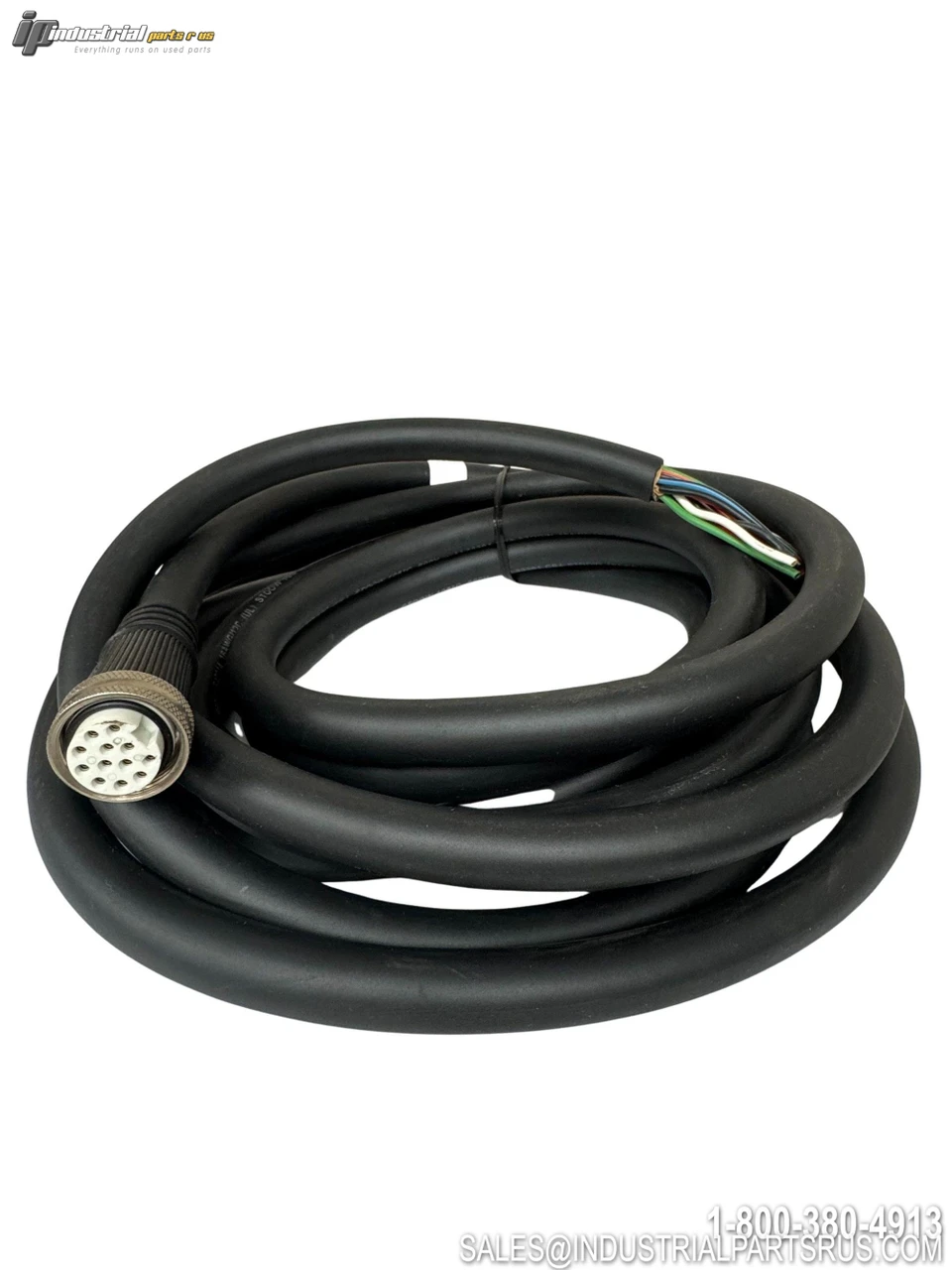

The Hubbell Wiring Device-Kellems HCMS12120 is a Mini-Quick® industrial control connector featuring a straight female plug configuration with a metallic (nickel-plated brass) coupling nut and 12-pole contact arrangement. It is pre-assembled with 20 feet of 16 AWG SEOOW cable and is rated for 600V AC/DC service in demanding industrial environments. This connector series is widely used for quick-disconnect applications involving solenoid valves, photoelectric eyes, limit switches, and proximity sensors in automated manufacturing and signal & control systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hubbell Wiring Device-Kellems |
| Model / Part Number | HCMS12120 |
| Series | Mini-Quick® |
| Connector Type | Female Straight Plug |
| Number of Poles | 12 Pole |
| Coupling Nut Material | Nickel Plated Brass (Metallic) |
| Voltage Rating | 600V AC/DC |
| Amperage Rating (16 AWG, 10–12P) | 8A |
| Cable Length | 20 ft (6.10 m) |
| Cable Type | 16 AWG SEOOW (TPE jacket, PVC conductor insulation, stranding 65/34) |
| Cable Color | Black |
| Thread Size | 7/8"-16 UN |
| Contact Material – Pins | Brass (Hard Gold over Palladium Nickel plating) |
| Contact Material – Sockets | Leaded Nickel Copper with Stainless Steel Sleeve |
| Contact Resistance | ≤ 5 Milliohm |
| Isolation Resistance | ≥ 1000 Megaohm |
| Ingress Protection | IP67 (IEC); NEMA 4, 4X, 12, 13 |
| Operating Temperature (SEOOW cable) | -40°C to 105°C |
| Corrosion Resistance | 500 hours salt spray per MIL-STD-1344, Method 1001 |
| Strain Relief | 30 lbs minimum per UL 2238 |
| UL Certification | UL 2238 and UL50, File No. E192071 |
| CSA Certification | CSA C22.2 No. 182.3 and C22.2 No. 94 |
| RoHS Compliant | Yes |
| Typical Applications | Solenoid valves, photoelectric eyes, limit switches, 18mm & 30mm proximity switches |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture United States
Full Load Amps 8A
Manufacturer Hubbell
Enclosure Type NEMA 4/4X/12/13, IP67
Part Number HCMS12120
Shelf J-94
Model HCMS12120
MPN HCMS12120
Type Limit Switch
