Product Description

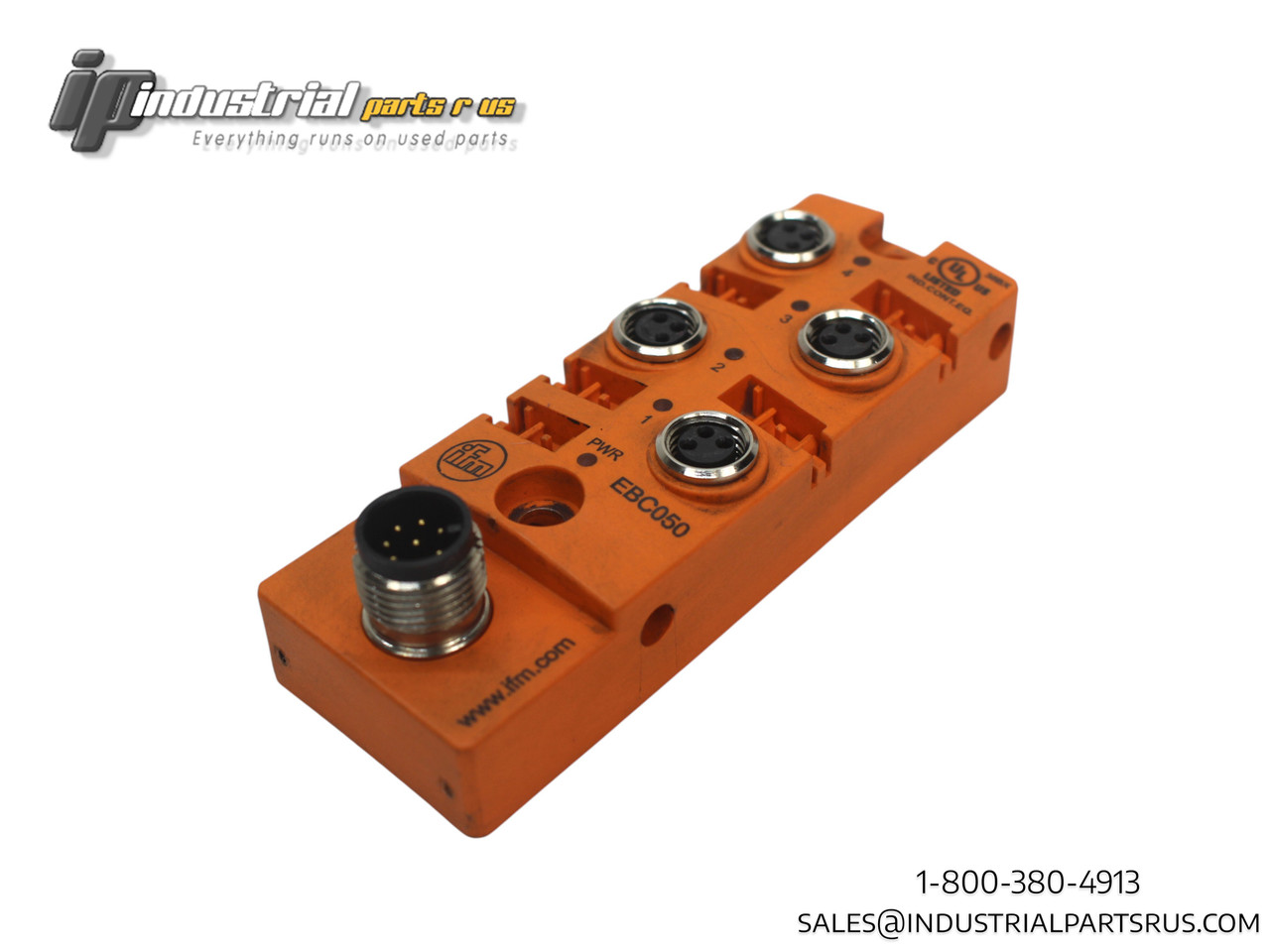

The IFM Efector EBC050 is a compact splitter box junction block designed for industrial sensor connectivity applications where space is restricted. This unit features 4 M8 ports with PNP electrical design, providing reliable signal distribution for DC sensors in harsh industrial environments. The device includes visual LED indicators for switching status monitoring and operation feedback.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | IFM Efector |
| Model/Part Number | EBC050 |
| Product Type | Splitter Box |
| Operating Voltage | 10-30 VDC |
| Max Current Load Per Port | 2 Amp |
| Max Current Load Total | 2 Amp |
| Number of Ports | 4 |
| Sensor Connection | M8 |
| Main Connector | M12 |
| Output Type | PNP |
| Housing Material | PBT |
| Contact Material | Gold-Plated |
| Protection Rating | IP67/68 |
| Operating Temperature | -25 to +80°C |
| Protection Class | III |
| Color | Orange |
| Features | 5 LEDs, Dust Tight, Waterproof |
We warranty all items for 30 days from date of purchase.
Other Details
Used Item, Good Condition, 30 Day WarrantyProduct Videos
Custom Field
Country/Region of Manufacture Germany
Shelf K-4
MPN EBC050
GTIN 721814243642
Model EBC050
Type Splitter Box
