Product Description

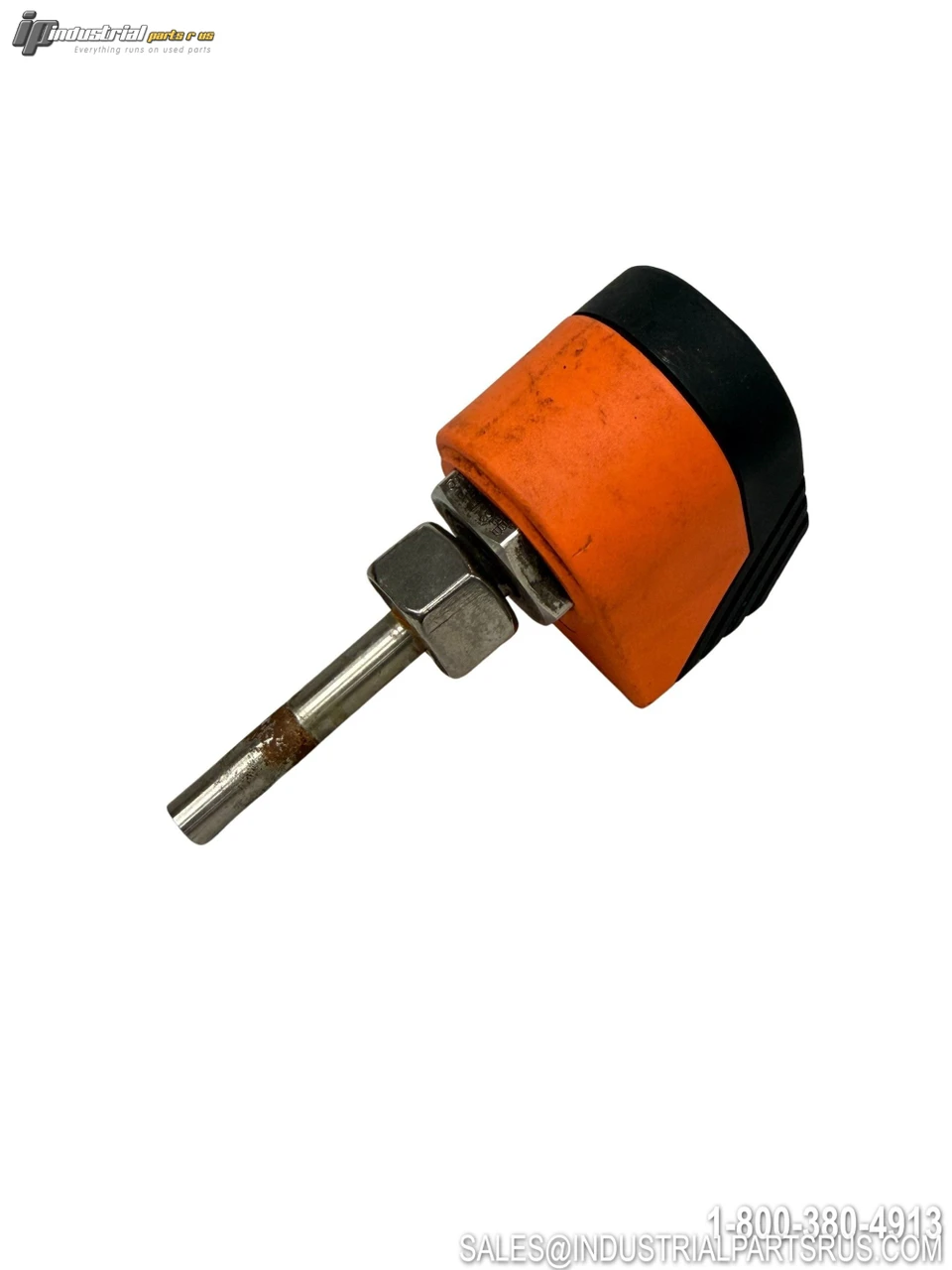

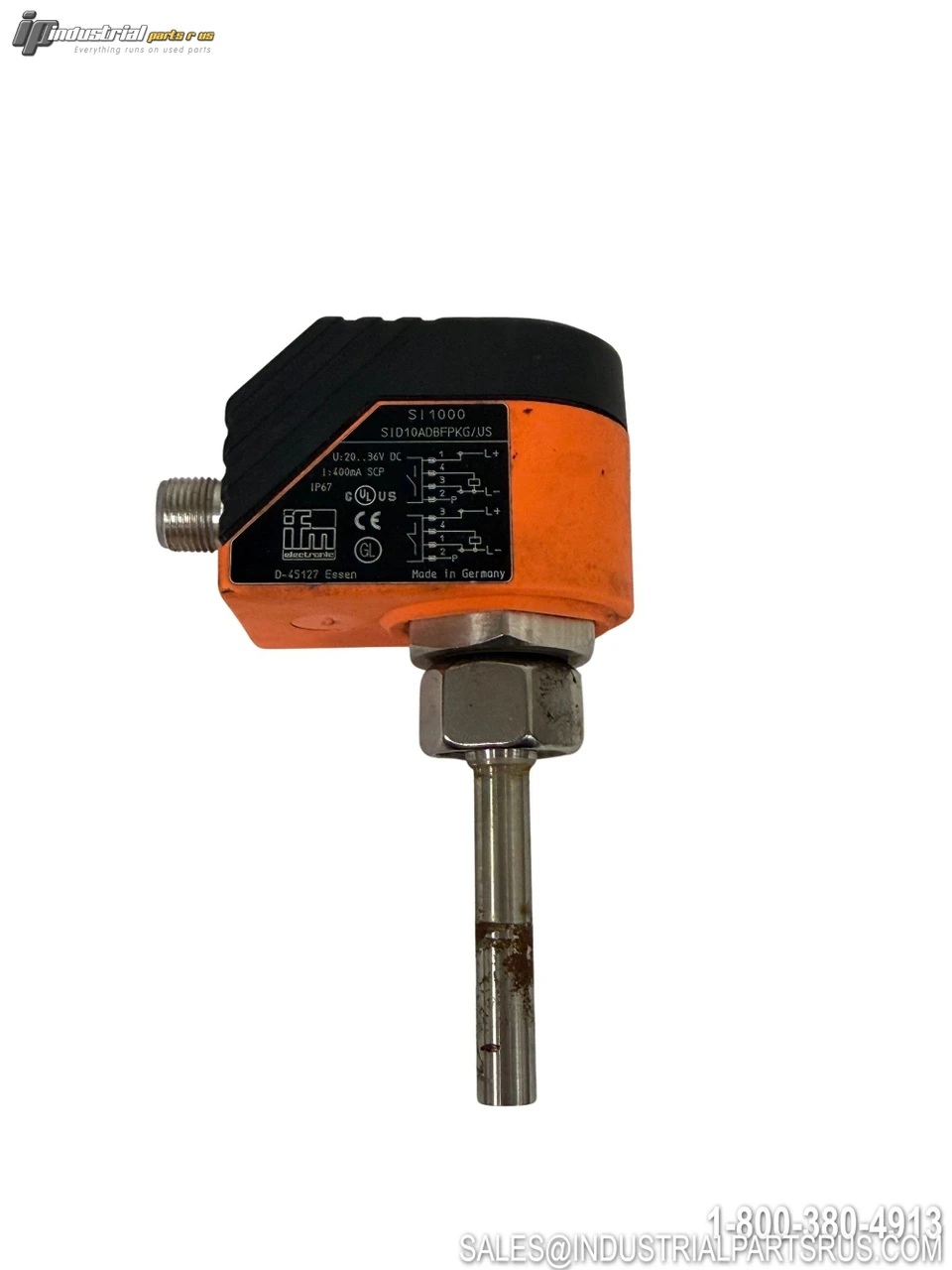

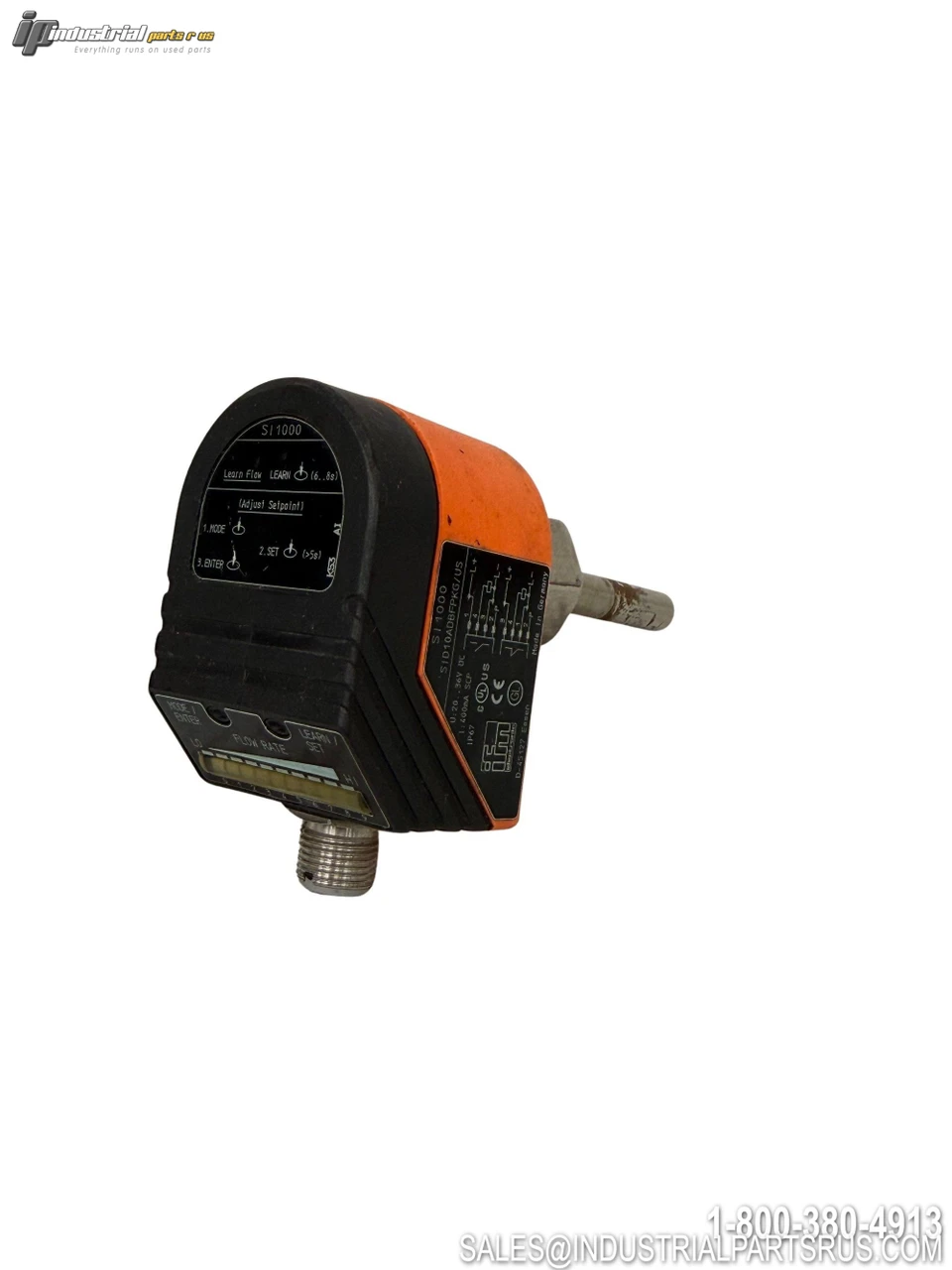

The IFM SID10ADBFPKG/US is a compact flow monitor designed for monitoring flow rates in liquid and gas applications. This sensor features thermal flow measurement technology with a 45mm probe length and M18x1.5 thread connection for easy installation. It provides reliable PNP digital output and is suitable for use in machine tool coolant systems, oil monitoring, and other industrial flow monitoring applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | IFM |
| Model/Part Number | SID10ADBFPKG/US |
| Product Type | Flow Monitor |
| Operating Voltage | 20-36 VDC |
| Output Type | PNP |
| Process Connection | M18 x 1.5 Internal Thread |
| Probe Length | 45 mm |
| Pressure Rating | 300 Bar |
| Setting Range (Liquids) | 3-300 cm/s |
| Operating Temperature | -25 to +80°C |
| Protection Rating | IP67 |
| Current Consumption | < 100 mA |
| Housing Material | PBT-GF20 |
| Wetted Parts Material | Stainless Steel 316L |
| Connection Type | 4-Pin Connector |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Thermal Flow Monitor
Full Load Amps < 100 mA
Manufacturer IFM
Enclosure Type IP67
Part Number SID10ADBFPKG/US
Shelf Q-7
Model SID10ADBFPKG/US
MPN SID10ADBFPKG/US
Type Flow Sensor
