Product Description

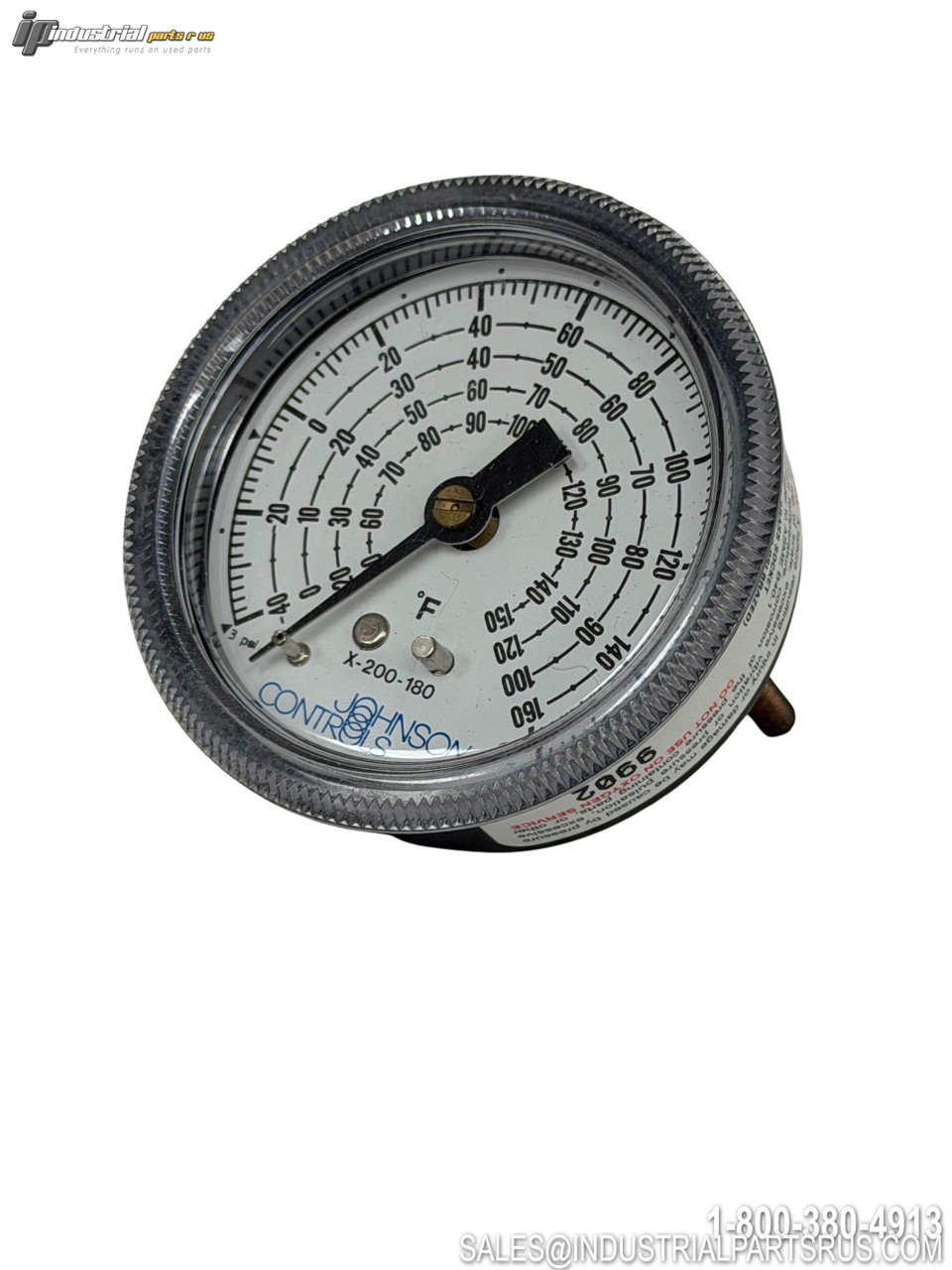

The Johnson Controls X-200-180 is a pneumatic temperature adjusting gauge from the X-200 series, designed for HVAC and industrial building automation applications. It features a 2.5-inch diameter face with multiple selectable temperature ranges and operates on a standard 3–15 PSI pneumatic signal. This model has been discontinued by Johnson Controls with no direct replacement offered.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Johnson Controls |
| Model / Part Number | X-200-180 |
| Product Type | Pneumatic Temperature Gauge |
| Series | X-200 |
| Face Diameter | 2.5 in (2-1/2 in) |
| Temperature Range 1 | -40 to 150°F |
| Temperature Range 2 | 0 to 100°F |
| Temperature Range 3 | 20 to 120°F |
| Temperature Range 4 | 50 to 150°F |
| Pneumatic Signal Range | 3 to 15 PSI |
| Port Size | 1/8 in NPT |
| Case Material | Steel |
| Internal Material | Brass |
| Mounting Type | Panel Mount |
| Application | HVAC / Building Automation / Pneumatic Control Systems |
| Weight | 0.25 lbs |
| Manufacturer Status | Discontinued — No Replacement |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer Johnson Controls
Part Number X-200-180
Shelf F-10
Model X-200-180
MPN X-200-180
Type Pressure Gauge
