Product Description

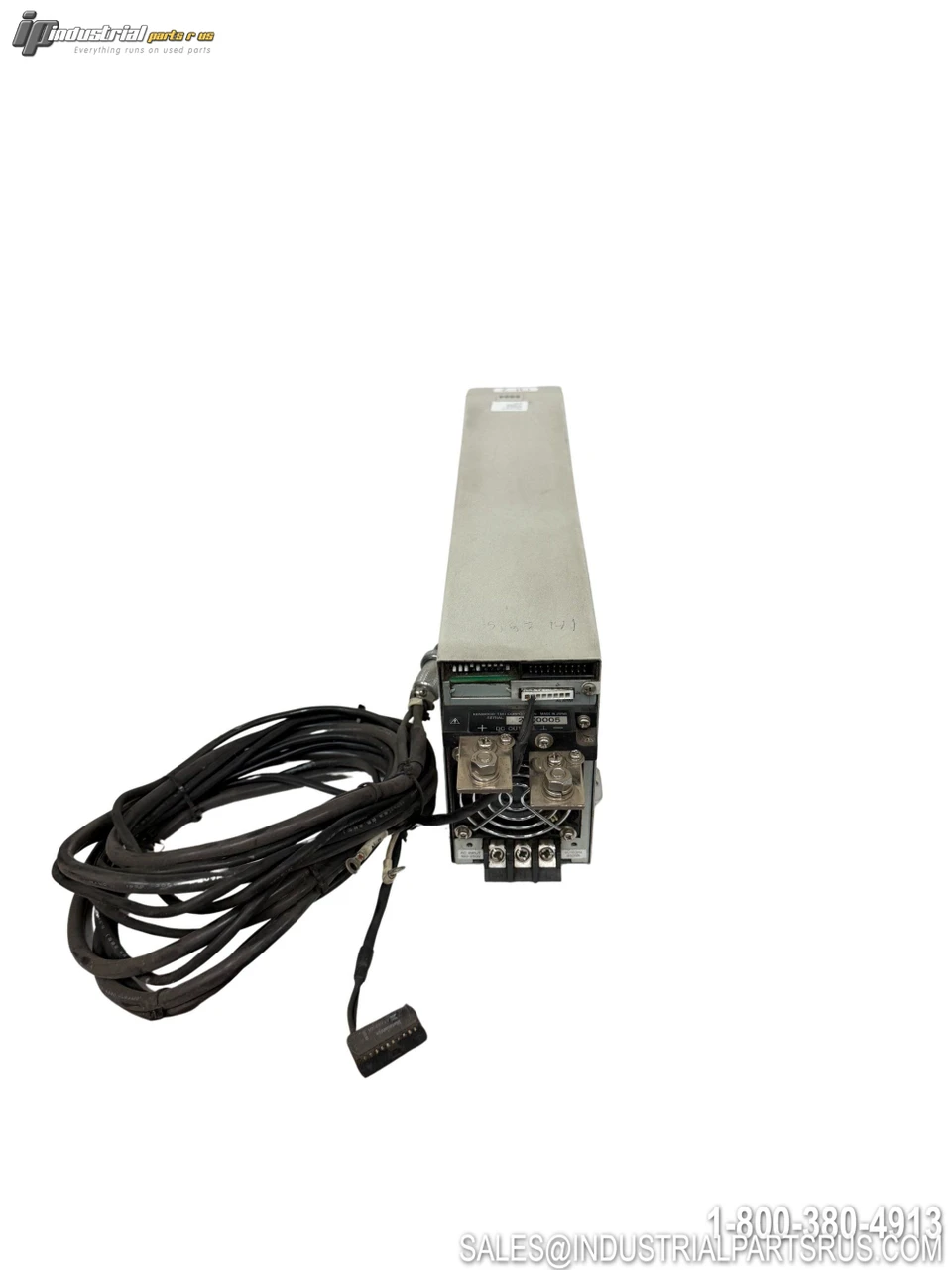

The Kenwood PS36-10 is a regulated DC switching power supply from Kenwood's PS Series, delivering a continuously adjustable output of 0–36V and 0–10A (360W). It operates in both constant-voltage (CV) and constant-current (CC) modes using a variable switching method for compact size, light weight, and high efficiency. The unit accepts a wide AC input range of 180–250VAC at 50/60Hz and includes built-in protection functions including over-voltage protection (OVP) and over-current protection (OCP), with optional GP-IB remote control capability via the GP-600 accessory.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Kenwood |
| Model / Part Number | PS36-10 |
| Product Series | PS Series |
| Type | Regulated DC Switching Power Supply |
| Output Voltage Range | 0 to 36 VDC |
| Output Current Range | 0 to 10 A |
| Rated Output Power | 360 W |
| Input Voltage | 180–250 VAC |
| Input Apparent Power | 950 VA |
| Input Frequency | 50/60 Hz |
| Operating Mode | CV (Constant Voltage) / CC (Constant Current) |
| Supply Type | Variable Switching |
| CV Ripple (Output) | 10 mV rms (20 Hz–1 MHz) |
| CV Line Regulation | 0.05% + mV |
| CV Load Regulation | 0.1% + mV |
| Transient Response Rise / Fall Time | 80 ms / 150 ms (full load) |
| Over-Voltage Protection (OVP) | Yes — shuts off switching output |
| Over-Current Protection (OCP) | Yes — activates at ≥110% of rated current |
| Remote Control (Optional) | GP-IB via optional GP-600 adapter |
| Output Control | External voltage control supported |
| Output ON/OFF | Front panel and external control |
| Remote Sense Connector | 20-pin control connector (rear panel) |
| Manufacturer | Kenwood (TEXIO Technology) |
