Product Description

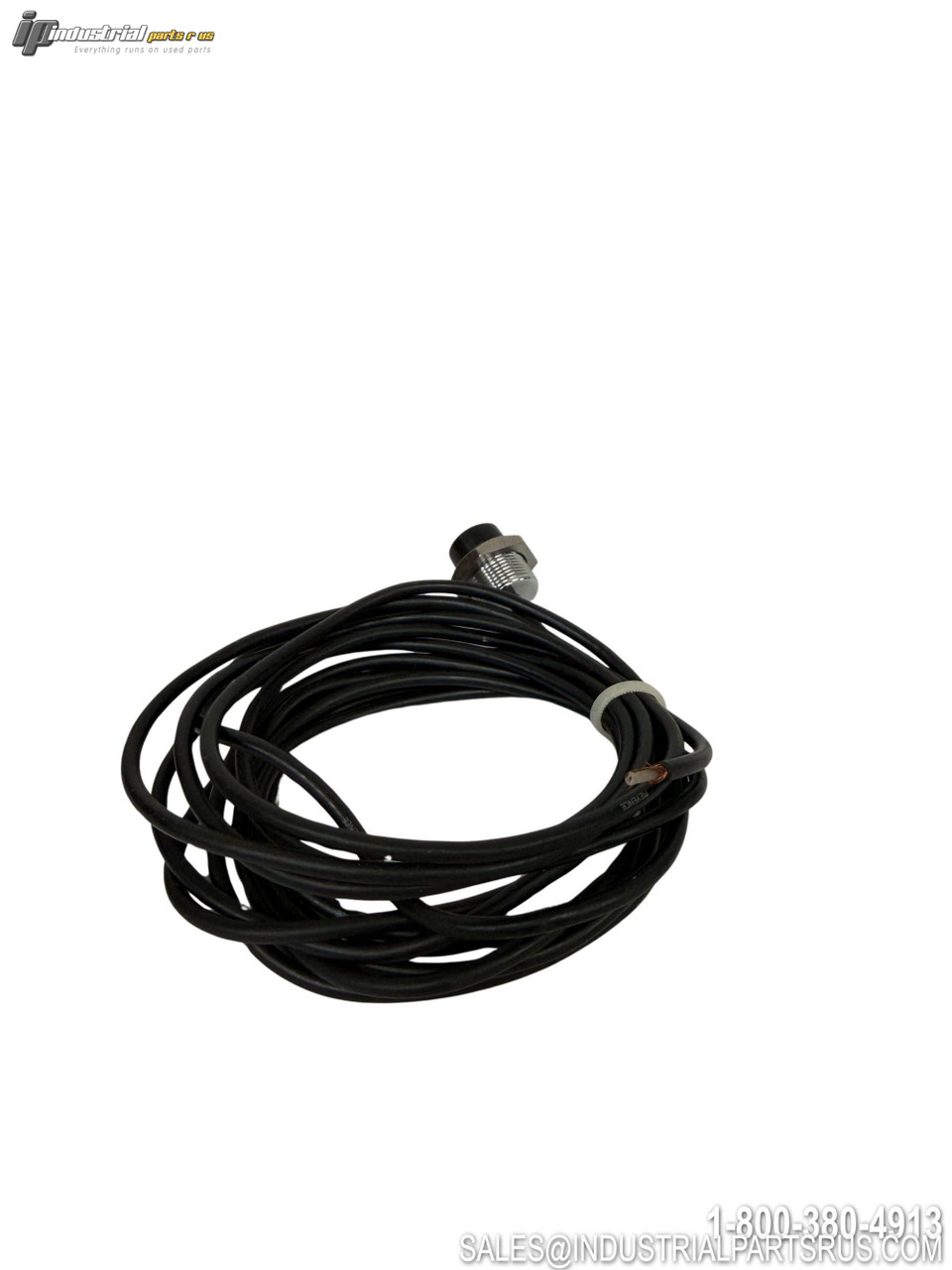

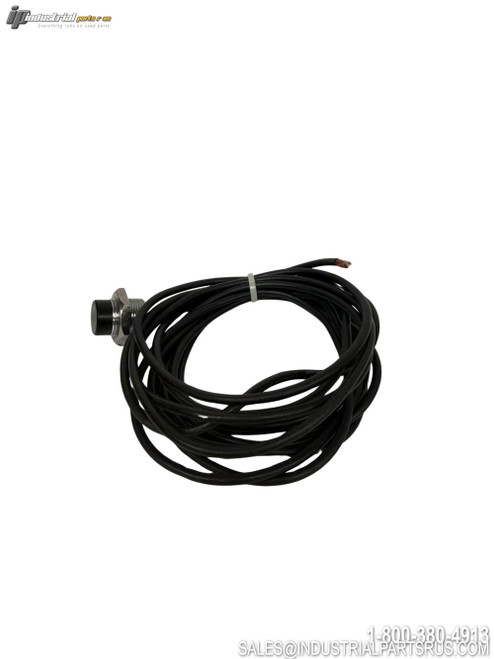

The Keyence AH-416 is a Sensor Head component belonging to the AS series Inductive Gauging Sensor system. It features a ø14.5mm threaded cylindrical body in black and is designed for non-contact displacement and gauging measurement applications in industrial automation. The AH-416 operates as part of a separate-amplifier system, requiring a compatible AS series amplifier unit, and provides analog output for precise positional and dimensional measurement tasks.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Keyence |
| Model / Part Number | AH-416 |
| Product Type | Sensor Head (Inductive Gauging) |
| Series | AS Series |
| Sensing Technology | Inductive (Eddy Current / Inductive Gauging) |
| Body Diameter | ø14.5 mm (Threaded) |
| Body Color | Black |
| Shielded / Unshielded | Shielded |
| Output Type | Analog Voltage |
| Resolution | 0.1% of F.S. |
| Linearity | 1% of F.S. |
| Amplifier System | Separate Amplifier (AS series amplifier required) |
| Cable Length (Standard) | 4 m (1 m version available as AH-416(1M)) |
| Mounting Type | Threaded Cylindrical Body |
| Application | Non-contact displacement / dimensional gauging |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Analog Voltage
Sensor Type Inductive Gauging Sensor Head
Manufacturer Keyence
Part Number AH-416
Shelf O-4
Model AH-416
MPN AH-416
Type Linear Sensor
