Product Description

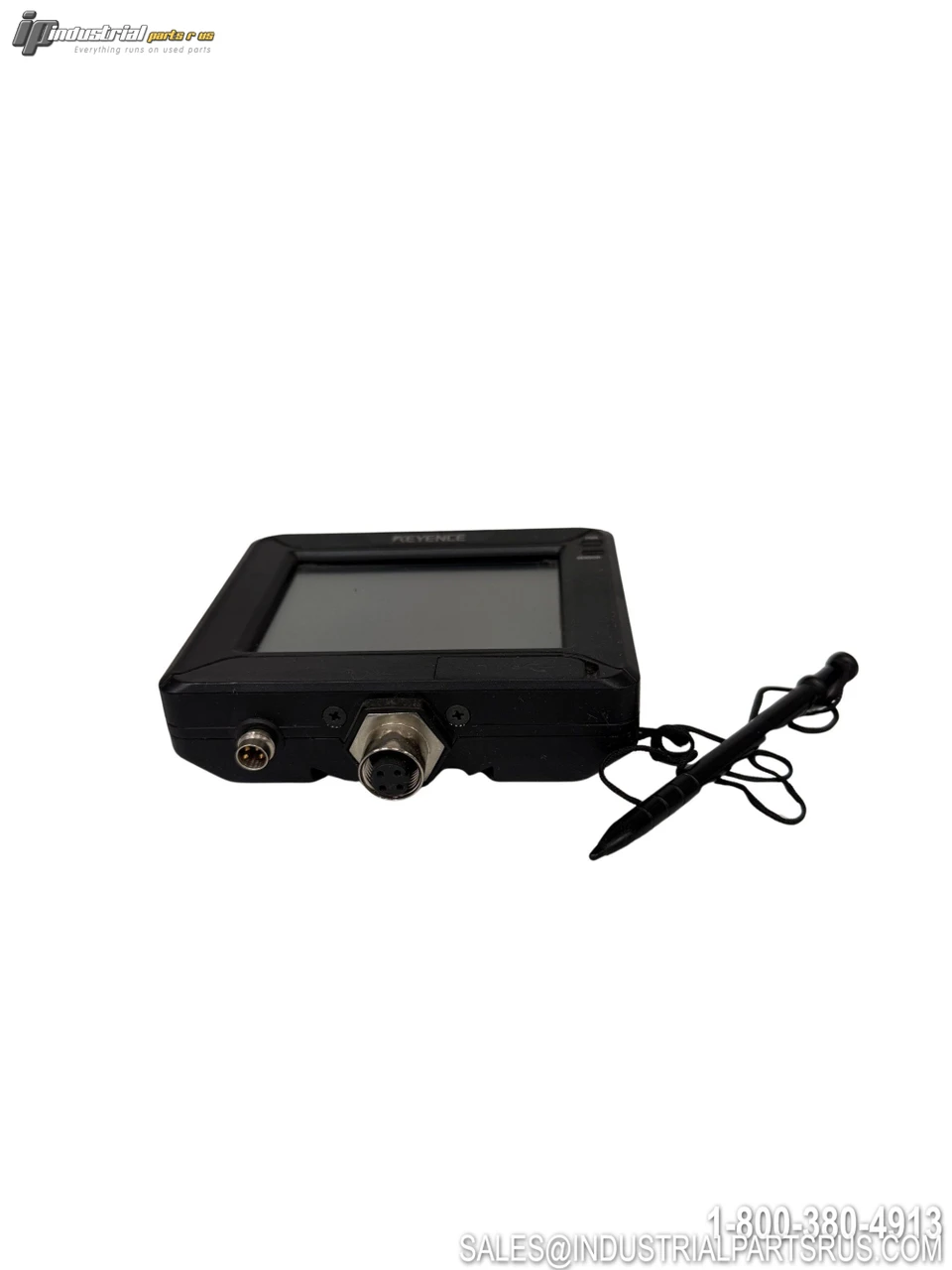

The Keyence IV-M30 is an Intelligent Monitor designed for use with the Keyence IV Series Vision Sensor system. It features a 3.5-inch TFT color touchscreen display (320 x 240 QVGA resolution) and serves as the primary setup, configuration, and monitoring interface for IV Series sensors, enabling standalone sensor operation once programming is complete. The IV-M30 connects to IV Series sensor amplifiers via an M12 4-pin monitor cable or Ethernet (M12 4-pin to RJ-45) and supports USB memory for data storage and transfer.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Keyence |
| Model / Part Number | IV-M30 |
| Product Type | Intelligent Monitor (Vision Sensor Accessory) |
| Series | IV Series |
| Input Voltage | 24V DC |
| Input Current (Max) | 0.2 A |
| Display | 3.5" TFT Color LCD |
| Display Resolution | 320 x 240 Dot (QVGA) |
| Display Type | Touchscreen |
| Illumination | White LED |
| LED Backlight Life | Approx. 50,000 hours (at 25°C) |
| Weight | Approx. 180 g |
| Enclosure Type | Type 1 (Class 2) |
| Power Connector | M8 4-Pin |
| Sensor Communication Connector | M12 4-Pin (Monitor Cable) |
| Ethernet Connector | M12 4-Pin to RJ-45 |
| External Storage | USB Memory |
| Mounting Options | Wall, Panel, DIN Rail |
| Compatible Sensor Series | Keyence IV Series |
| Certifications | UL, CE |
| Manufacturer | Keyence Corporation |
| Status | Discontinued (Replaced by IV2-CP50) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Keyence
Enclosure Type Type 1
Part Number IV-M30
Shelf D-15
Model IV-M30
MPN IV-M30
Type Vision Sensor
