Product Description

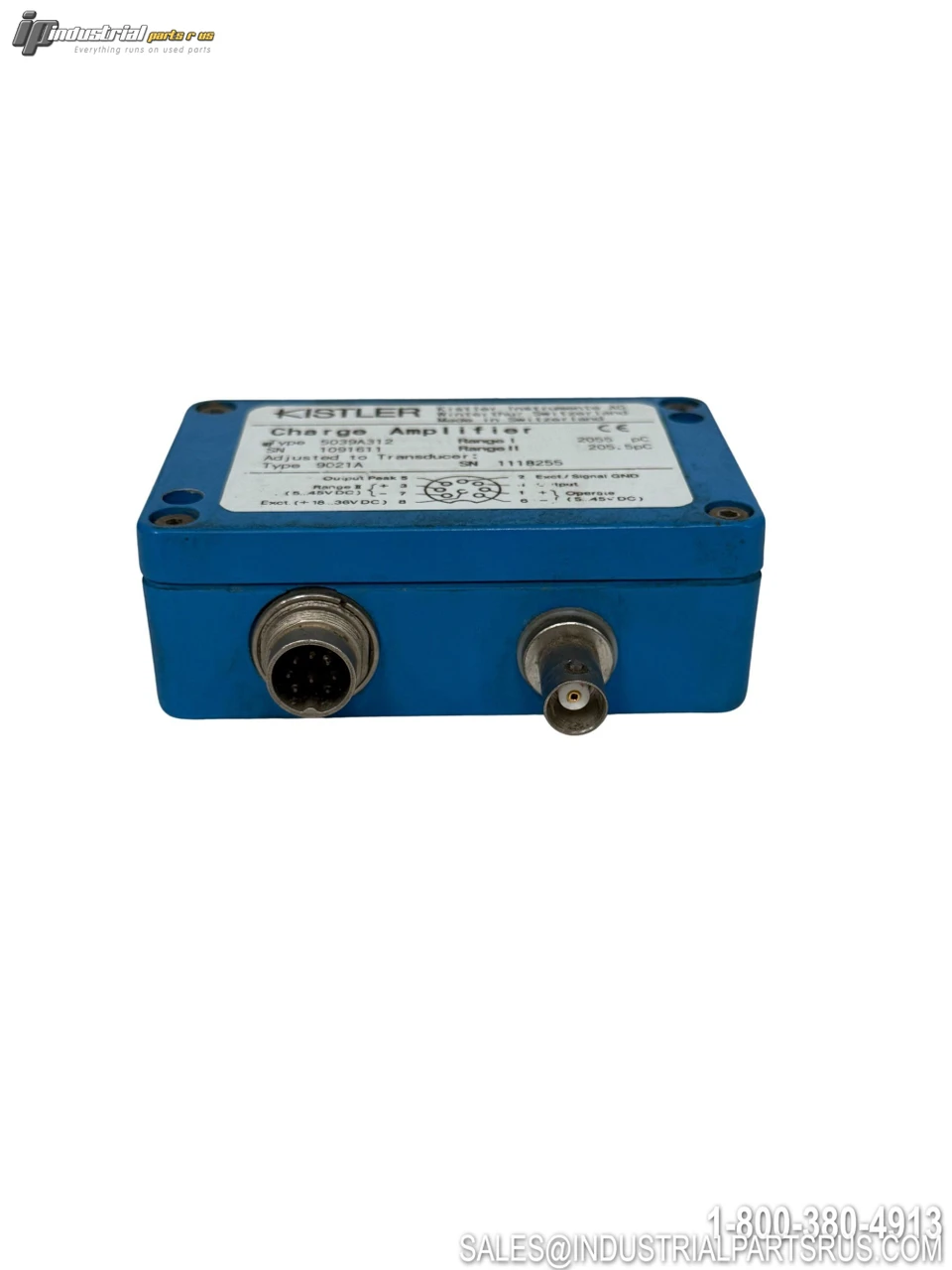

The Kistler Type 5039A312 is a miniature industrial charge amplifier designed to convert electrical charge signals from piezoelectric sensors into proportional inverted voltage outputs. It features built-in peak detection with two remotely switchable measuring ranges (ratio 10:1), a maximum full-scale range of ±50,000 pC, and a BNC negative output connector. The unit is housed in a rugged metal enclosure rated to IP65, making it suitable for demanding industrial environments such as assembly process monitoring, press force measurement, and quality assurance systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Kistler |
| Model / Part Number | 5039A312 |
| Product Type | Miniature Industrial Charge Amplifier |
| Number of Channels | 1 |
| Input Type | Piezoelectric Charge (pC) |
| Max Measuring Range | ±50,000 pC |
| Range Ratio (Range 1 : Range 2) | 10:1 |
| Peak Detection | Yes — instant output and peak value simultaneously available |
| Output Voltage Range | ±10 V DC |
| Output Connector | BNC Negative |
| Supply Voltage | 18 to 36 V DC (unstabilized) |
| Supply Current | ~30 mA |
| Range Switching | Remote switchable via optocoupler-controlled inputs (Operate & Range II) |
| Common Mode Rejection | ±4 V (Sensor Low to Output / Supply Ground) |
| Input Impedance | Extremely high (hybrid negative feedback amplifier) |
| Enclosure / Housing | Rugged metal housing |
| IP Protection Rating | IP65 |
| Form Factor | Panel / Chassis Mount |
| Sensor Compatibility | Piezoelectric sensors |
| Application | Industrial process monitoring, force/pressure measurement, assembly quality assurance |
| Manufacturer | Kistler Instrumente AG |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 30 mA (approx.)
Manufacturer Kistler
Enclosure Type IP65
Part Number 5039A312
Shelf E-19
Model 5039A312
MPN 5039A312
Type Current Sensor
