Product Description

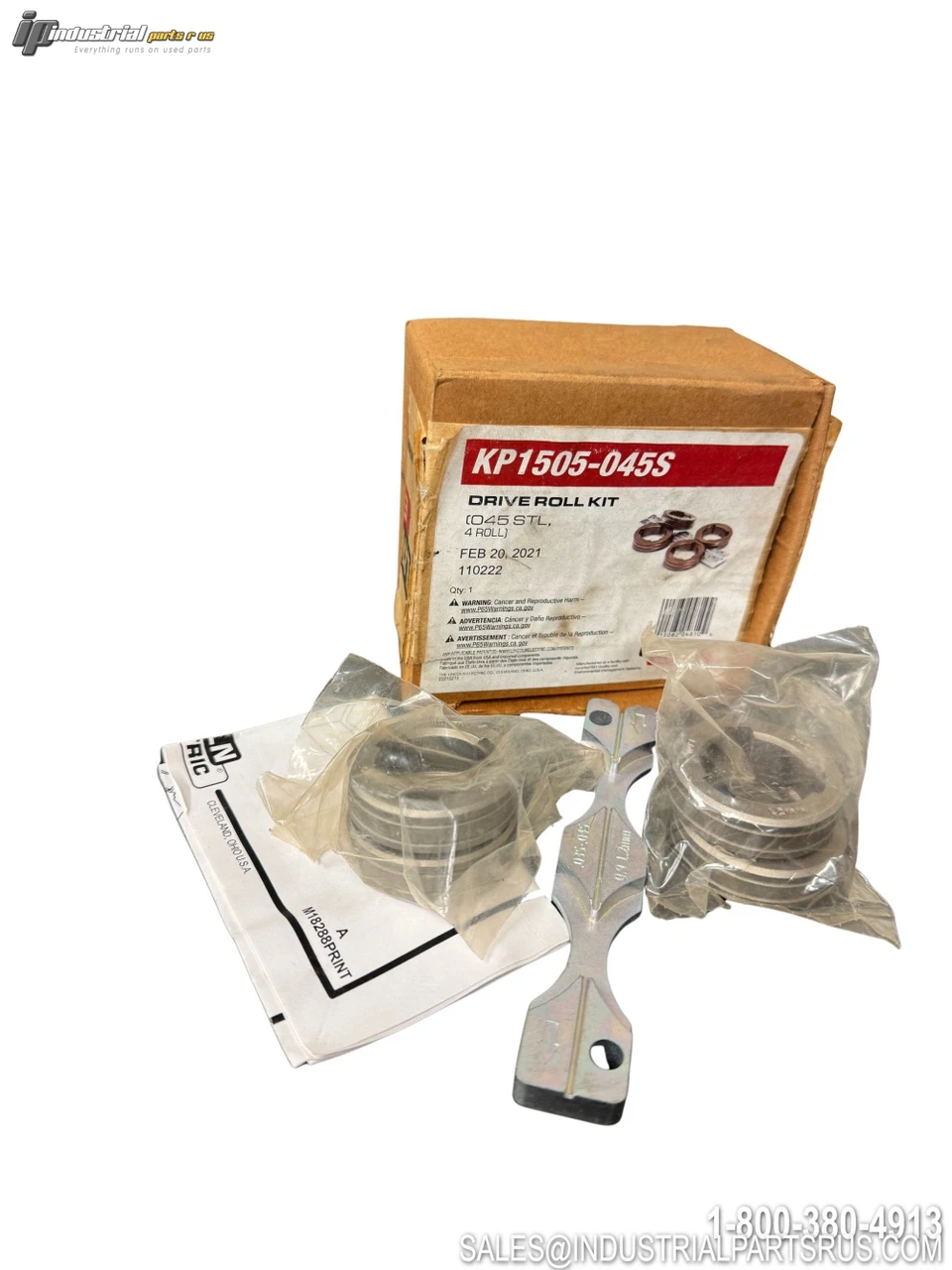

The Lincoln Electric KP1505-045S is a 4-Roll V-Groove Drive Roll and Guide Tube Kit designed for smooth, consistent feeding of .040–.045 in (1.0–1.2 mm) solid MIG wire in GMAW (MIG) welding applications. Compatible with steel and stainless steel solid wire, the kit includes four precision smooth V-groove drive rolls and one wire inlet guide (feed plate), providing positive, reliable wire feeding for optimal arc stability. It is compatible with all Lincoln Electric 4-roll Flex Feed, Power Feed, and AutoDrive wire feeder platforms.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Lincoln Electric |
| Model / Part Number | KP1505-045S |
| Product Type | Drive Roll Kit (Wire Feeder Accessory) |
| Drive Roll Type | Smooth V-Groove |
| Wire Type | Solid (Steel / Stainless Steel) |
| Welding Wire Material | Steel / Stainless Steel |
| Minimum Wire Diameter | .040 in (1.0 mm) |
| Maximum Wire Diameter | .045 in (1.2 mm) |
| Wire Size Range (Metric) | 1.0 – 1.2 mm |
| Number of Drive Rolls | 4 |
| Welding Process | MIG / GMAW |
| Compatible Feeder Types | 4-Roll Flex Feed, Power Feed, AutoDrive |
| Compatible Feeder Series | AutoDrive 4R100, AutoDrive 4R220, DH-10, FlexFeed 74HT, FlexFeed 84 Single/Dual, LF-74, LN-10, Power Feed 10M, Power Feed 10M Dual, Power Feed 10R, Power Feed 84 Single/Dual, STT-10, Power Feed 11 |
| Compatible Feeder Model Numbers | K1499-3, K1521-7, K1559-3, K1564-4, K1780-3, K2230-1, K2316-1, K3002-2, K3328-1, K3328-12, K3328-3, K3328-7, K3330-1, K3330-3, K3330-5, K3330-7, K3560-1, K3561-1, K3883-1, K3883-2, K3883-4, K3883-5, K3883-6, K5000-2, K5000-3, K5002-2, K5002-5 |
| Drive Roll Designation (Airgas) | Type J & K2 |
| Kit Contents | (4) Drive Rolls, (1) Wire Inlet Guide / Feed Plate |
| Application | Wire Feeding — Industrial, Fabrication, Manufacturing, Automated Welding |
| UNSPSC Code | 23153134 |
| Weight | 0.94 lb |
| Durability Guarantee | 30 Day |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Hole Diameter 0.040 - 0.045 in (1.0 - 1.2 mm)
Diameter 0.040 - 0.045 in (1.0 - 1.2 mm)
Manufacturer Lincoln Electric
Part Number KP1505-045S
Shelf K-36
Model KP1505-045S
MPN KP1505-045S
Type Other
