Product Description

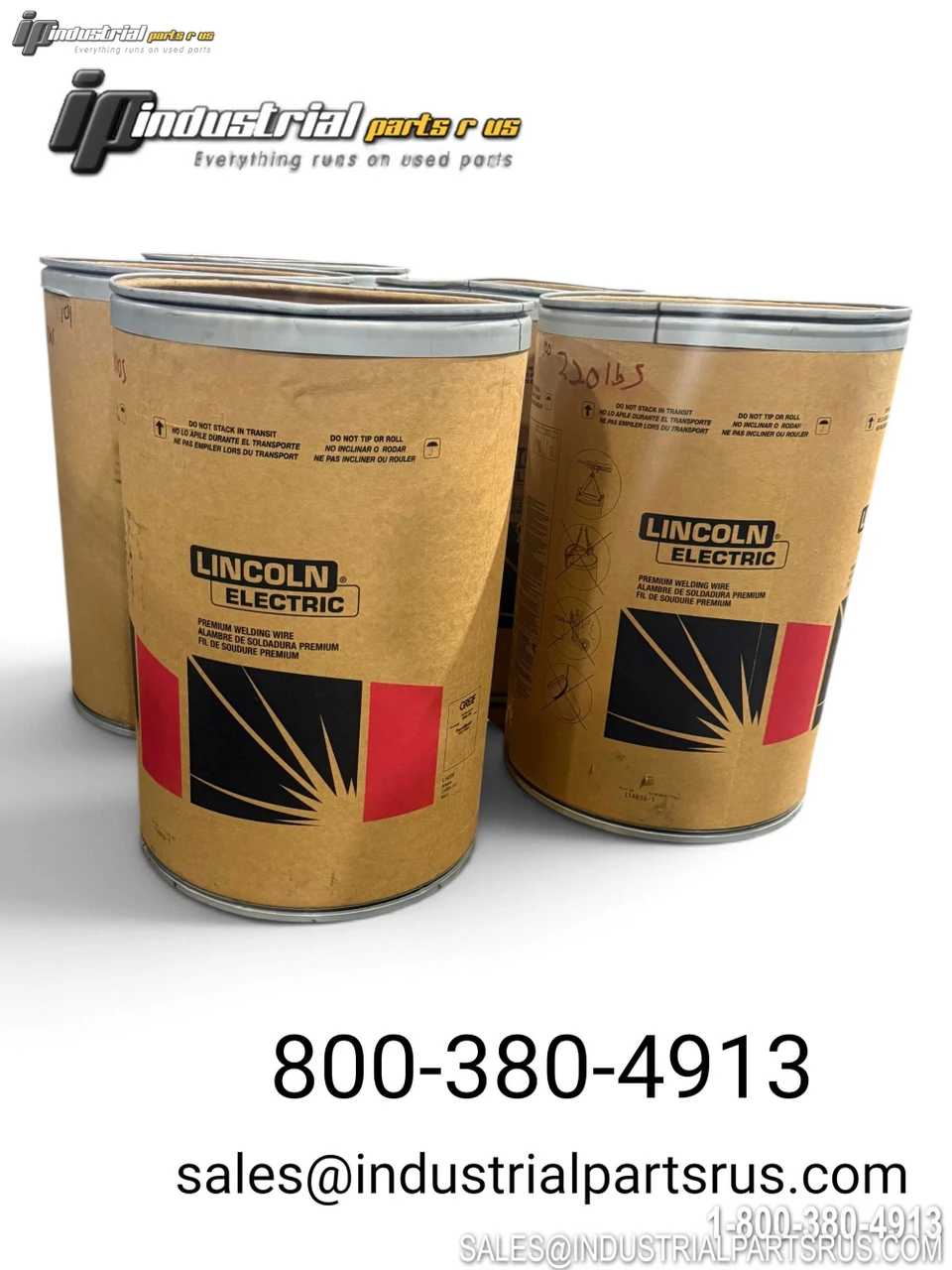

Lincoln Electric ED028826 SurperArc 0.045" (1.1 mm) Diameter Welding Wire in an Accu-Trak Drum. This particular drum weighs 900 Lbs, we have several drums in stock in different weights. Be Sure to check out our Store!!
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Lincoln Electric |
| Model / Product Line | SuperArc L-50 |
| Wire Diameter | 0.045 in (1.1 mm) |
| Drum Weight | 900 lb |
| AWS Classification | ER70S-3 (AWS A5.18) |
| Wire Material | Mild Steel |
| Wire Finish / Coating | Copper Coated |
| Weld Process | MIG / GMAW |
| Welding Positions | All Positions |
| Polarity | DCEP (DC Electrode Positive / DC+) |
| Tensile Strength (Typical) | 530–600 MPa (77–87 ksi) as-welded |
| Yield Strength (Typical) | 430–490 MPa (62–71 ksi) |
| Elongation (Typical) | 23–25% |
| Charpy V-Notch Impact | ≥27 J (20 ft·lbf) @ −29°C (−20°F) |
| Shielding Gas | 100% CO₂ or 75–95% Ar / balance CO₂; flow 30–50 CFH |
| Transfer Modes | Short-circuit, Globular, Axial Spray, Pulsed Spray |
| Manganese Content (Typical) | 1.42–1.60% |
| Silicon Content (Typical) | 0.81–0.87% |
| Carbon Content (Typical) | 0.08–0.09% |
| Conformances | AWS A5.18 ER70S-3, ABS 3YSA H5, DNV III YMS H5, LR 3YS H5, MIL-70S-6, ISO 14341-A G 42 3 C1 3Si1 |
| Typical Applications | Structural steel, mill scale surfaces, automotive repair, robotic/hard automation, pressure vessels |
| Common Part Numbers (0.045") | ED029042 (12.5 lb spool), ED032928 (33 lb spool), ED031412 (33 lb steel spool), ED025946 (44 lb steel spool) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Shelf Floor
Model SuperArc L-50
MPN 0.045" SURPERARC
Type MIG Welding Wire
GTIN 679523686161
Hole Diameter 0.045 in
Material Mild Steel
Diameter 0.045 in
Manufacturer Lincolon Electric
Part Number 0.045" SURPERARC
Series SuperArc L-50
